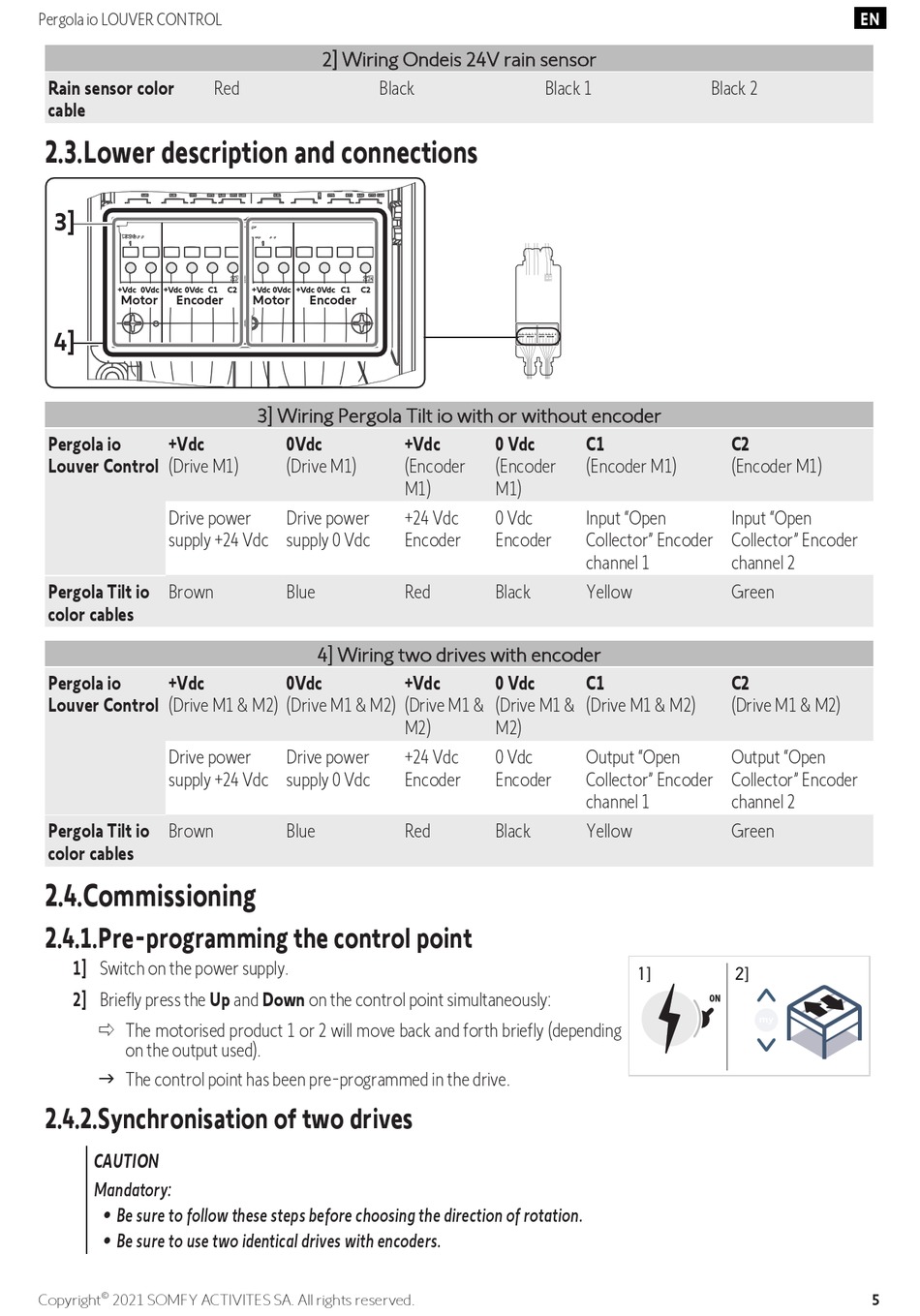

Pergola io LOUVER CONTROL
Rain sensor color
cable
2.3.Lower description and connections
3]
+Vdc 0Vdc +Vdc 0Vdc C1
Motor Encoder
4]
Pergola io +Vdc
Louver Control (Drive M1)
Drive power
supply +24 Vdc
Pergola Tilt io Brown
color cables
Pergola io +Vdc
Louver Control (Drive M1 & M2)
Drive power
supply +24 Vdc
Pergola Tilt io Brown
color cables
2.4.Commissioning
2.4.1.Pre-programming the control point
1] Switch on the power supply.
2] Briefly press the Up and Down on the control point simultaneously:
ð The motorised product 1 or 2 will move back and forth briefly (depending
on the output used).
g The control point has been pre-programmed in the drive.
2.4.2.Synchronisation of two drives
CAUTION
Mandatory:
• Be sure to follow these steps before choosing the direction of rotation.
• Be sure to use two identical drives with encoders.
©
Copyright 2021 SOMFY ACTIVITES SA. All rights reserved.
2] Wiring Ondeis 24V rain sensor
Red Black
C2 +Vdc 0Vdc +Vdc 0Vdc C1 C2
Motor Encoder
3] Wiring Pergola Tilt io with or without encoder
0Vdc
(Drive M1)
Drive power
supply 0 Vdc
Blue
4] Wiring two drives with encoder
0Vdc
(Drive M1 & M2)
Drive power
supply 0 Vdc
Blue
Black 1
+Vdc 0Vdc +Vdc 0Vdc C1 C2 +Vdc 0Vdc +Vdc 0Vdc C1 C2
Motor Encoder Motor Encoder
+Vdc 0 Vdc
(Encoder (Encoder
M1) M1)
+24 Vdc 0 Vdc
Encoder Encoder
Red Black
+Vdc 0 Vdc
(Drive M1 & (Drive M1 &
M2) M2)
+24 Vdc 0 Vdc
Encoder Encoder
Red Black
Black 2
C1 C2
(Encoder M1) (Encoder M1)
Input "Open Input "Open
Collector" Encoder Collector" Encoder
channel 1 channel 2
Yellow Green
C1 C2
(Drive M1 & M2) (Drive M1 & M2)
Output "Open Output "Open
Collector" Encoder Collector" Encoder
channel 1 channel 2
Yellow Green
1] 2]
