WARNING SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON
Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished.
pull cooker forward to gain access to the rear, remove screws
securing the electric cover to the back sheet and remove cover
and disconnect the terminals from the rear.
Fit new element, and reassemble in reverse order. Check
operation of oven.

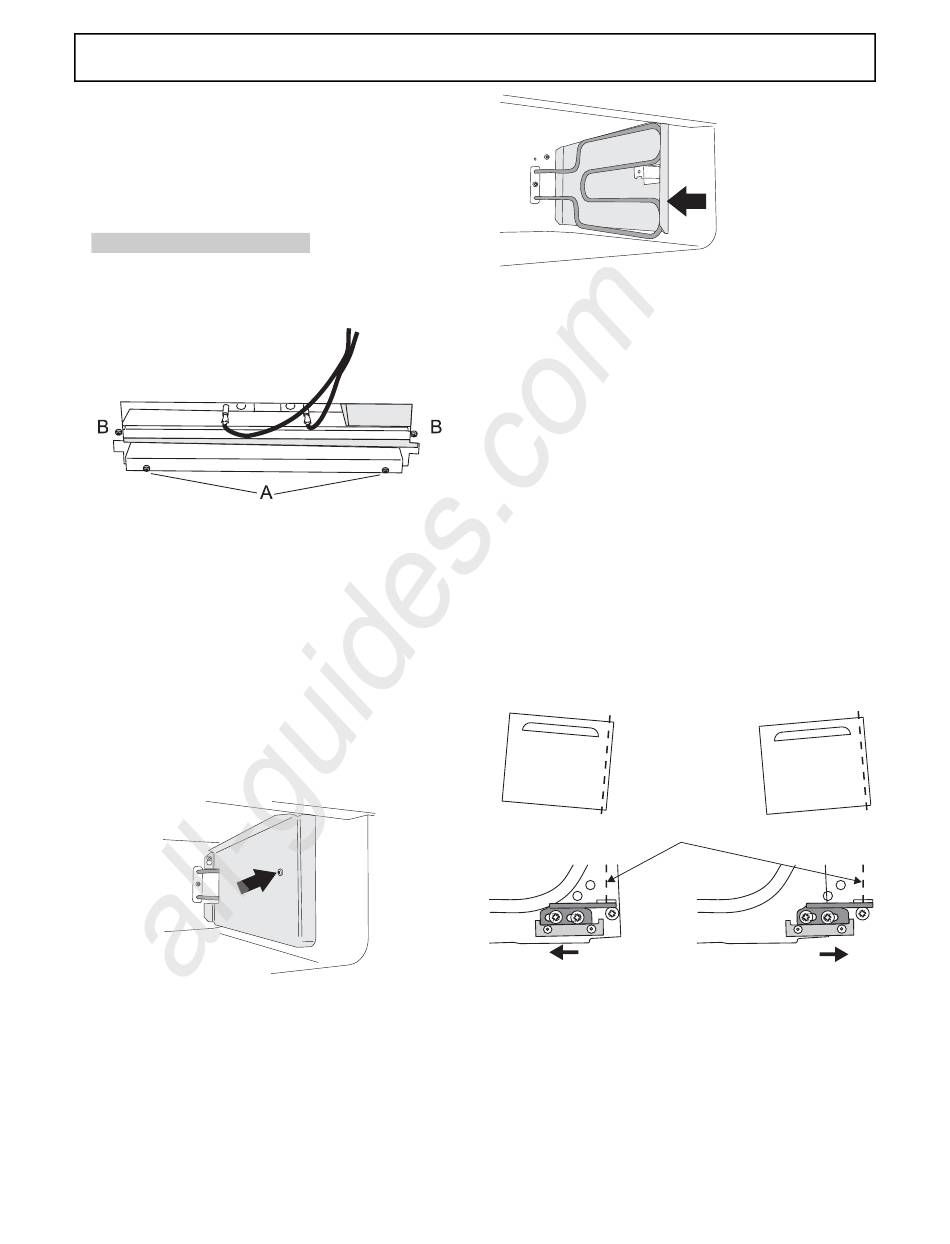

23. To Remove the Left Hand Main Oven Bottom and
Top Elements
Disconnect from the electricity supply.
Bottom Element
Pull the cooker forward to access the cover boxes at the rear of
the unit. Remove the fi xings that secure the cover and lift it clear.
Remove the 2 screws 'A' and allow the plate to drop down.
Remove the 2 screws B, lower the upper plate and remove
through the slot in the cooker back.
Undo the terminal connections, noting their positions.
Remove the element fi xings and withdraw element. Replace the
element and re-assemble parts in reverse order.
Top Element
Open the LH oven door and undo the fi xings that secure the heat
shield. Remove the top element bracket fi xings and withdraw
element. Replace the element and re-assemble parts in reverse
order. Check that the oven operates satisfactorily.
24. To Remove a Slow Cook Oven Element
Remove the element cover fi xing screw and lift the cover off the
rear supporting screw.
Remove the screw holding the element to the rear of the oven.
Lift element out carefully, disconnect the terminals connected
to the element noting their positions. If it is not possible to
disconnect the leads in this way, pull cooker forward to gain
access to the rear, remove screws securing the electric cover to
the back sheet and remove cover and disconnect the terminals
from the rear.
Fit new element, making sure that the element refl ector is fi tted
between the element and the oven side wall, and reassemble in
reverse order.
All manuals and user guides at all-guides.com
25. To Replace the ceramic hob glass.
26. To Replace a Hob Element.
27. To change oven light bulb.
28 To Adjust the Oven Door Angle
Eff ect of hinge adjustment – exaggerated for clarity
Centre line of hinge pin
Oven door omitted for clarity
56
Check operation of oven.
Remove the hotplate, see 2. Fit the replacement hotplate and
ceramic hob.
Reassemble in reverse order. Check operation of the ceramic hob.
Remove the hotplate, see 2. The elements are now accessible.
Reassemble in reverse order. Check operation of the ceramic hob.
See the 'Trouble shooting' section of the users instruction.
The door bottom hinge can be adjusted to alter the angle of the
door.
Loosen the bottom hinge fi xing screws and use the notch and a
fl at bladed screwdriver to move the position of the hinge to set
the hinge position.
Retighten the hinge screws.
element refl ector
