Check the ap pli ance is electrically safe and gas sound when you have fi nished.
3 phase supplies
Because of the phase loadings it should not be installed on a 3
phase plus neutral (3N) 16A maximum per phase supply.
For multi phase connections it should only be installed on 3
phase plus neutral (3N) with a capacity of 25A per phase supply.
It is wired so that the maximum loading on each phase is
approximately: -
Phase 1 20 amp
Phase 2 16 amp
Phase 3 15 amp
Access to the mains terminal is gained by re mov ing the electrical
terminal cover on the back panel. When preparing the electrical
supply leads, make sure that the earth wire is longer that the
phase or neutral wires. The earth lead should be long enough
that it is never under any strain.

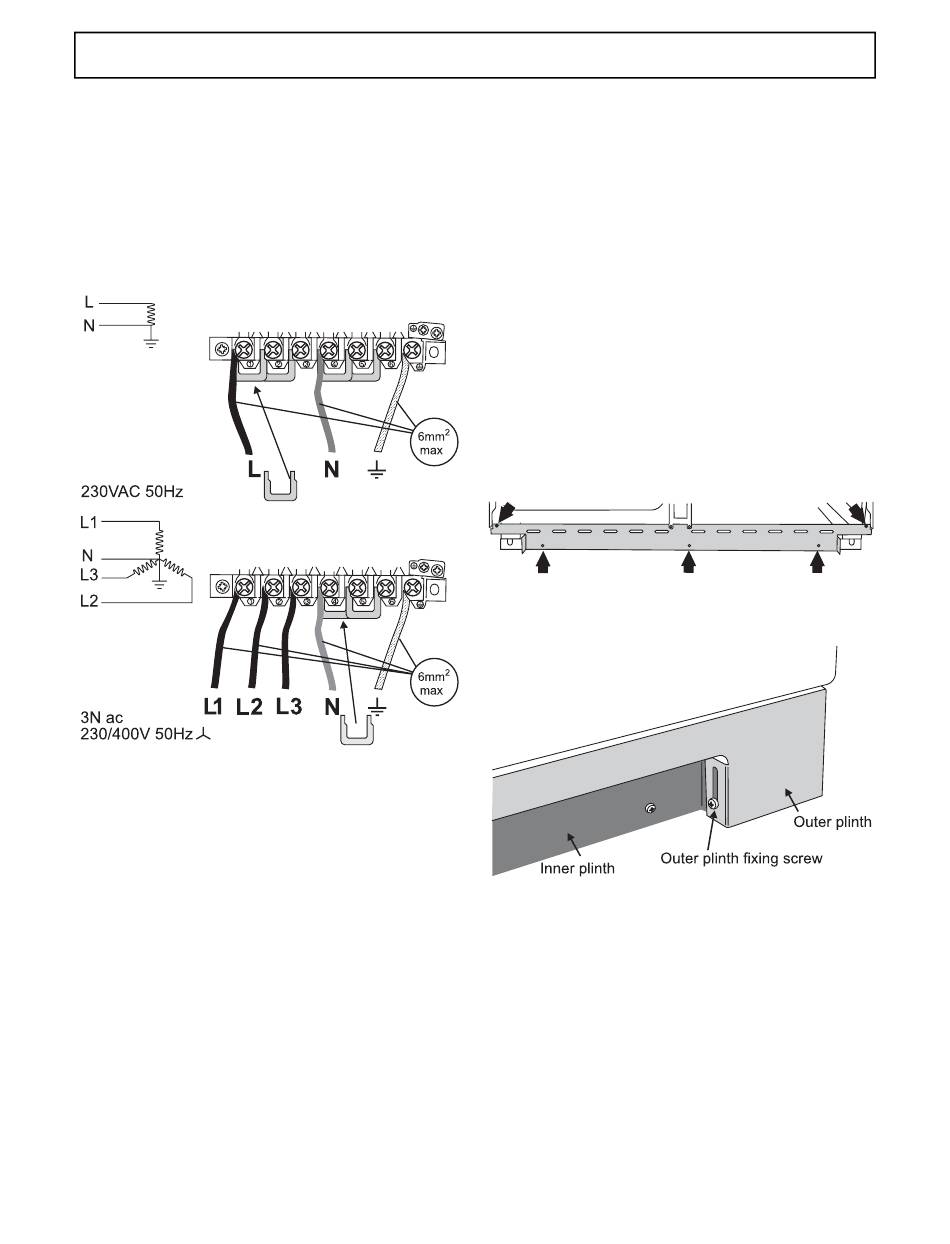

Connect the mains cable to the correct terminals for your
electrical sup ply type (see fi g.). Check that the links are correctly
fi tted and that the terminal screws are tight. Secure the mains
cable us ing the cable clamp.
These appliances are of type X with regard to protection against
over heating of the sur round ing surfaces.
Current Operated Earth Leakage Breakers
Where the installation is protected by a 30 milliamp sensitivity
residual current device (RCD), the combined use of your cooker
and other domestic appliances may oc ca sion al ly cause nuisance
tripping. In these instances the cooker circuit may need to be
protected by fi tting 100mA device. This work should be carried
out by a qualifi ed electrician.
All manuals and user guides at all-guides.com
INSTALLATION
Hotplate
Oven check
Fitting the plinth
Customer care
Thank you.
52
Check each burner in turn. There is a fl ame safety device that
stops the fl ow of gas to the burner if the fl ame goes out and an
igntion system that works when the control knob is pressed in.
For each burner, turn the control knob to the large fl ame symbol.
Press in the control knob, this lets gas through to the burner. The
gas should light. Keep holding the control knob pressed in for
about 10 seconds.
If when you let go of the control knob the burner goes out, the
safety device has not held in. Wait one minute then try again this
time holding the control pressed in for slightly longer.
The clock must be set to the time of day before the left hand
Multifunction Oven will work. See the Users section for how to set
the clock.
Turn on the ovens. Check that the oven fan starts to turn and that
the oven starts to heat up. Turn off the ovens.
Fit the inner plinth to the bottom front of the cooker using the 5
screws provided.
Fit the outer plinth (2 screws 1 each end) to the inner plinth.
The height of the outer plinth can be adjusted by sliding it up or
down via the slotted hole.
Please complete your contact details in the front of this section.
Please inform the user how to operate the cooker and hand over
the instruction pack.
