RSP3 installation and user's guide
www.renishaw.com
Fitting the RSP3 ports and FCR25 to the MRS2
rail

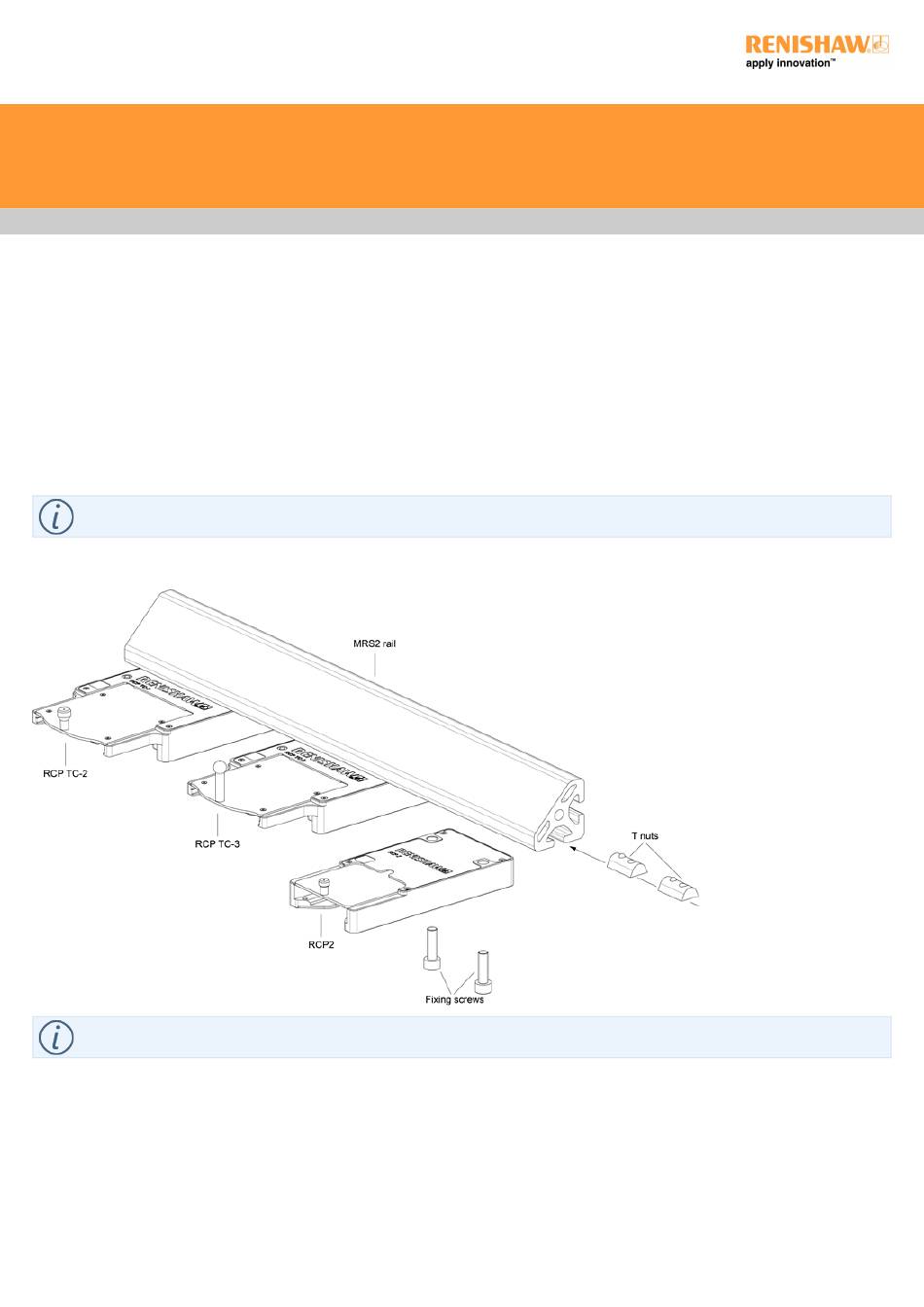

Stylus holder changing for RSP3 probes can be done by using the RCP TC-2, RCP TC-3, RCP2 and FCR25 ports. These need to be attached to
the MRS2 rail using the procedure below. The MPS1 spacer should be used to position the RCP TC-3 port storing RSP3-6, and its adjacent
ports.
NOTE: For RSP3-6 spacing, please refer to the
Please refer to the MRS2 modular rack system installation guide (Renishaw part number H-1000-5255) for full MRS2 installation details.
NOTE: To use the FCR25 rack with REVO the stand off plate must be fitted between the FCR25 and MRS2 rails.
Issued 10 2019
RSP3-6 spacing
guide.
38
