COMPACT 1.4
Take care not to invert polarities when connecting the unit. If this happens, the plate does not come on and
the unit does not work.
Centrifugal
blower
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
IMPORTANT NOTE!
Electronic
control
Positives box
position X4
2 Compressor
Special
negatives box
Compressor
electronic
module
25

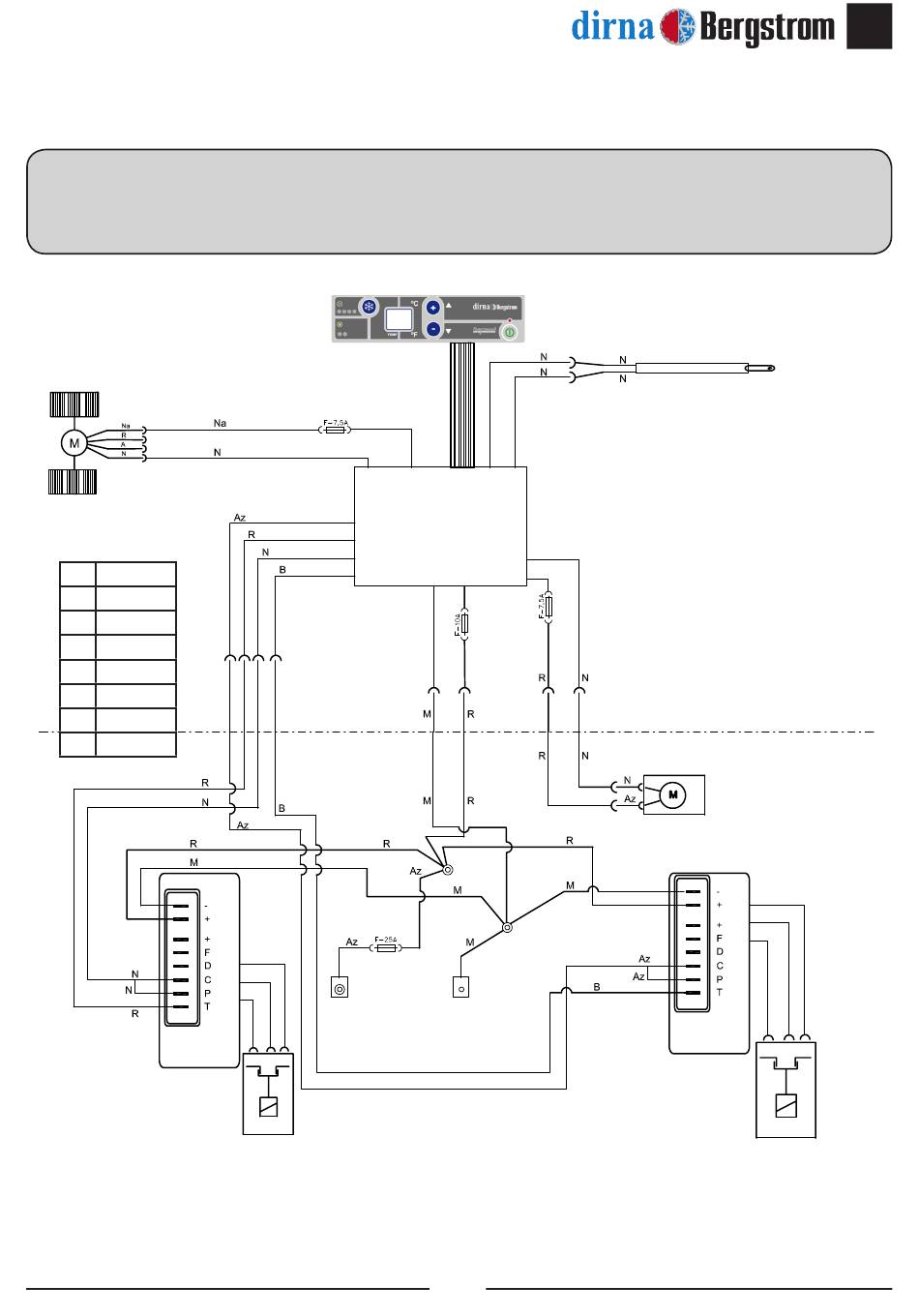

Wiring diagram

Return
air sensor
Condenser
fan
1 Compressor
EN
®
