COMPACT 1.4
EN
11

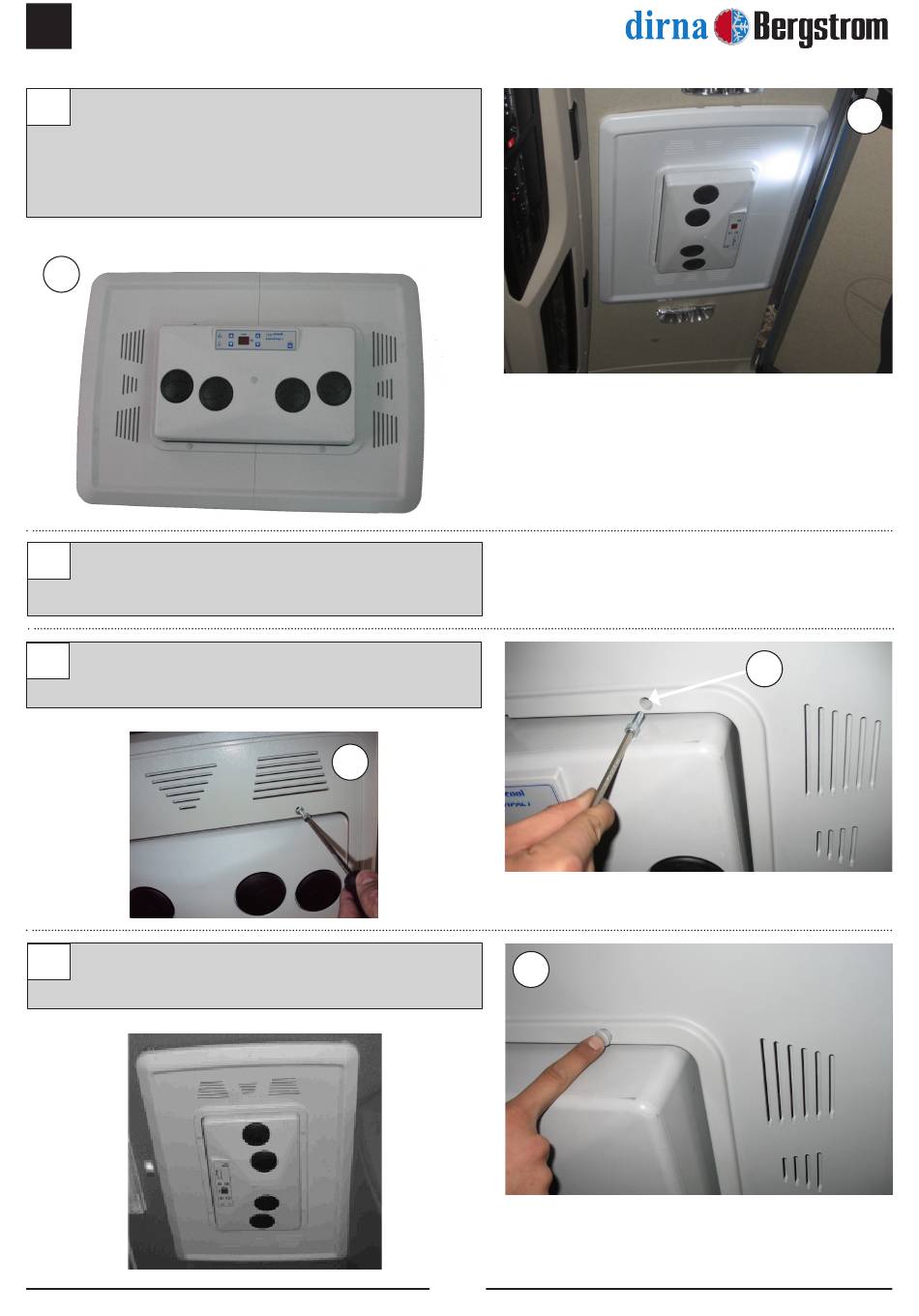

Position the console and align the equipment in
the most convenient location in the cabin roof.
Once aligned, remove the console.
Note: Use the curtain rail as a reference.
11
12
Secure the fastening mounts by tightening the
M8/125x40 screws.
13
Position the console with (4) M6/100x15 Allen
screws.
14
Cover the (4) M6/100x15 Allen screws with the
M6 round plastic decorative pieces.
13
20
14
®
11
13
