dirna Bergstrom Bycool green line COMPACT 1.4 Montageanweisungen Seite 18

COMPACT 1.4
EN
7

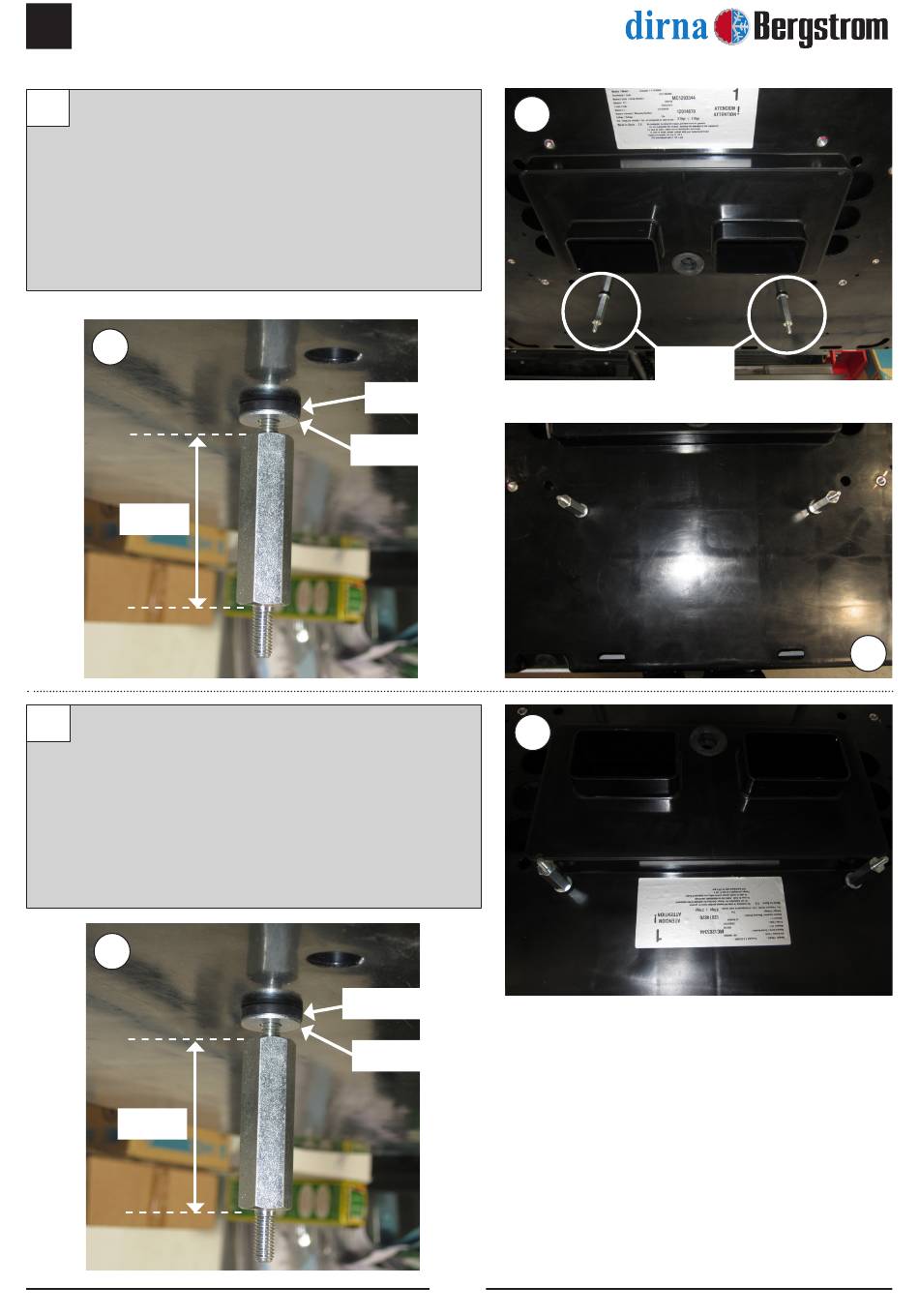

Position (2) Ø6 rubber washers, (2) Ø6 wide-
rimmed flat washers on the L=43 hexagon. Then
tighten the hexagon until the rubber washer is
pressed slightly.
Note: The hexagons should be screwed to the
rear of the unit (always in direction of travel).
As shown in the photos.
7
L=43
8
Position (1) Ø6 rubber washer, (2) Ø6 wide-rimmed
flat washers on the L=50 hexagon. Then tighten
the hexagon until the rubber washer is pressed
slightly.
Note: The hexagons should be screwed to the
front of the unit (always in direction of travel),
as shown in the photos.
8
L=50
7
Wide-rimmed washer
Rubber washer
8
Wide-rimmed washer
Rubber washer
18
L= 43
®
7
