dirna Bergstrom Bycool green line COMPACT 1.4 Montageanweisungen Seite 17

COMPACT 1.4
3

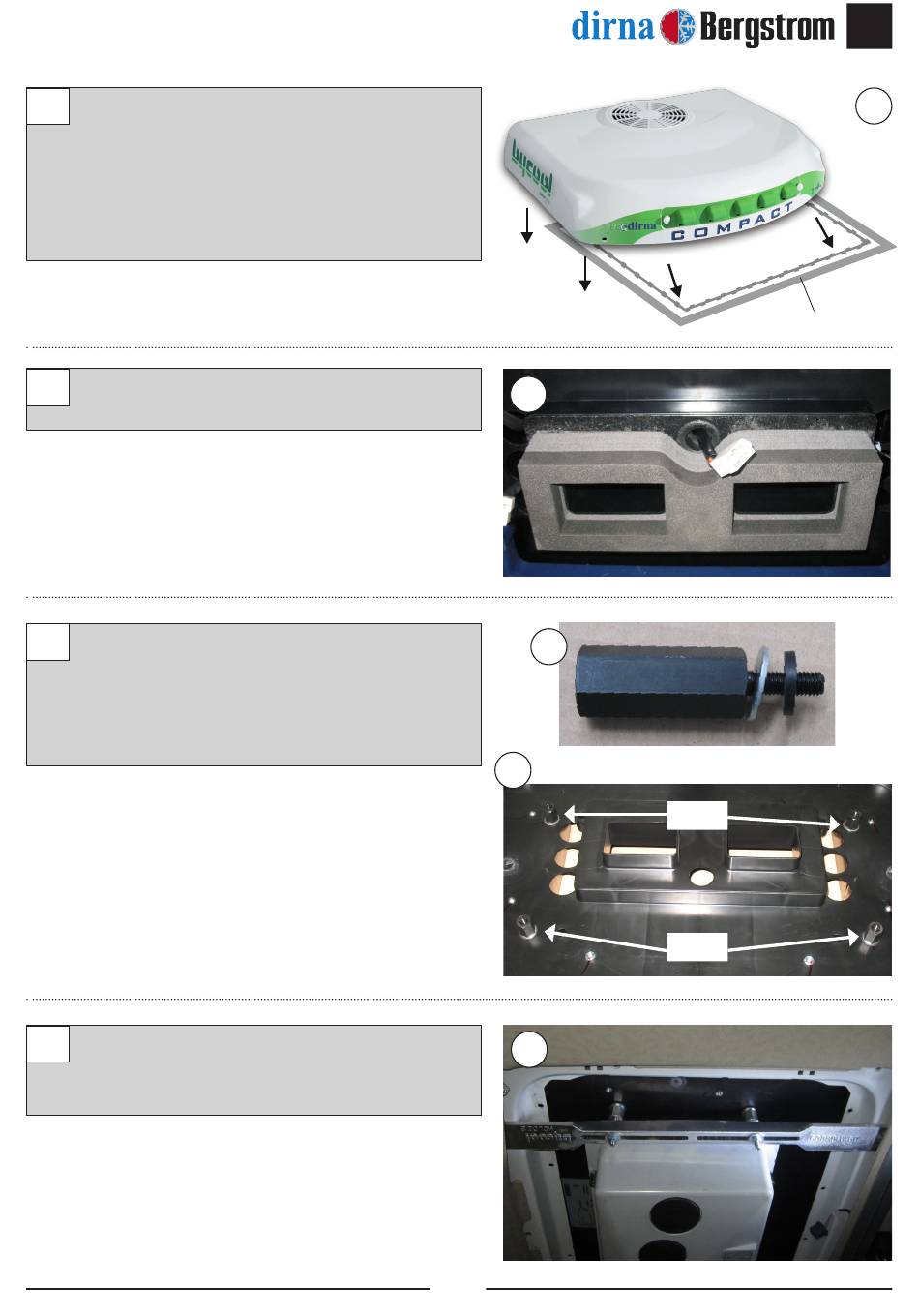

CABIN EXTERIOR:
Position the Compact in the hatch gap.
Caution! When positioning the unit above the
hatch gap, check that the wastewater run-offs
are not blocked by the EPDM seal.
4
Position foam rubber, ensuring the softest part
is placed on the base of the unit.
5 Screw (2) L=40 hexagons on the front (direction
of travel) and (2) L=35 hexagons on the rear
(direction of travel) with a rubber washer and flat
washer and tighten with a torque of 12.7±10%
Nm.
6
Position fastening mounts with (4) 8/125x40
screws with flat washer and grower washer
without tightening.
4
5
5
6
17
®
Hatch
L=40
L=35
EN
3
