dirna Bergstrom Bycool green line COMPACT 1.4 Montageanweisungen Seite 19

COMPACT 1.4

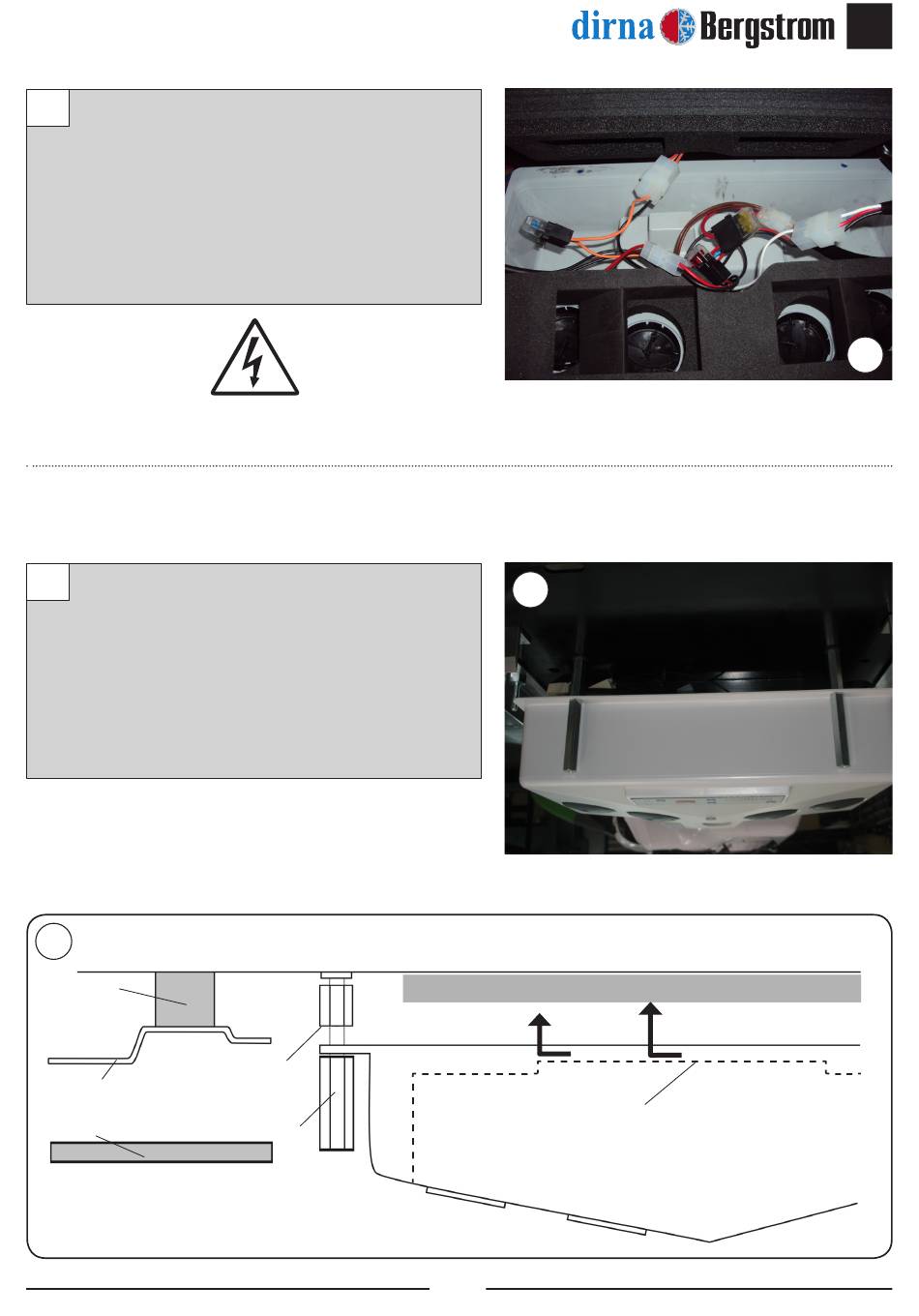

9 Connect the (2) 4-way boxes and the (2) 2-way
boxes and connect the power cable in the 2-way
box in a "T" between the unit and the interior air
distribution panel.
NOTE: It is very important not to invert the
colours of the condenser fan 2-way box (box
with R and N wires).
10 Position the interior air distribution panel on
these hexagons with (1) F-F hexagon. Tighten
the hexagon until the foam duct piece comes up
against the unit's upper foam.
Important: The foam duct piece must come
up against the unit's upper foam in order to
prevent any leakages of air.
10
EPDM
seal
M-M Hexagon
Cabin roof
Upholstery
Compact Base
F-F Hexagon
10
Foam duct unit
19
®
Foam
Interior air distribution
panel
EN
9
