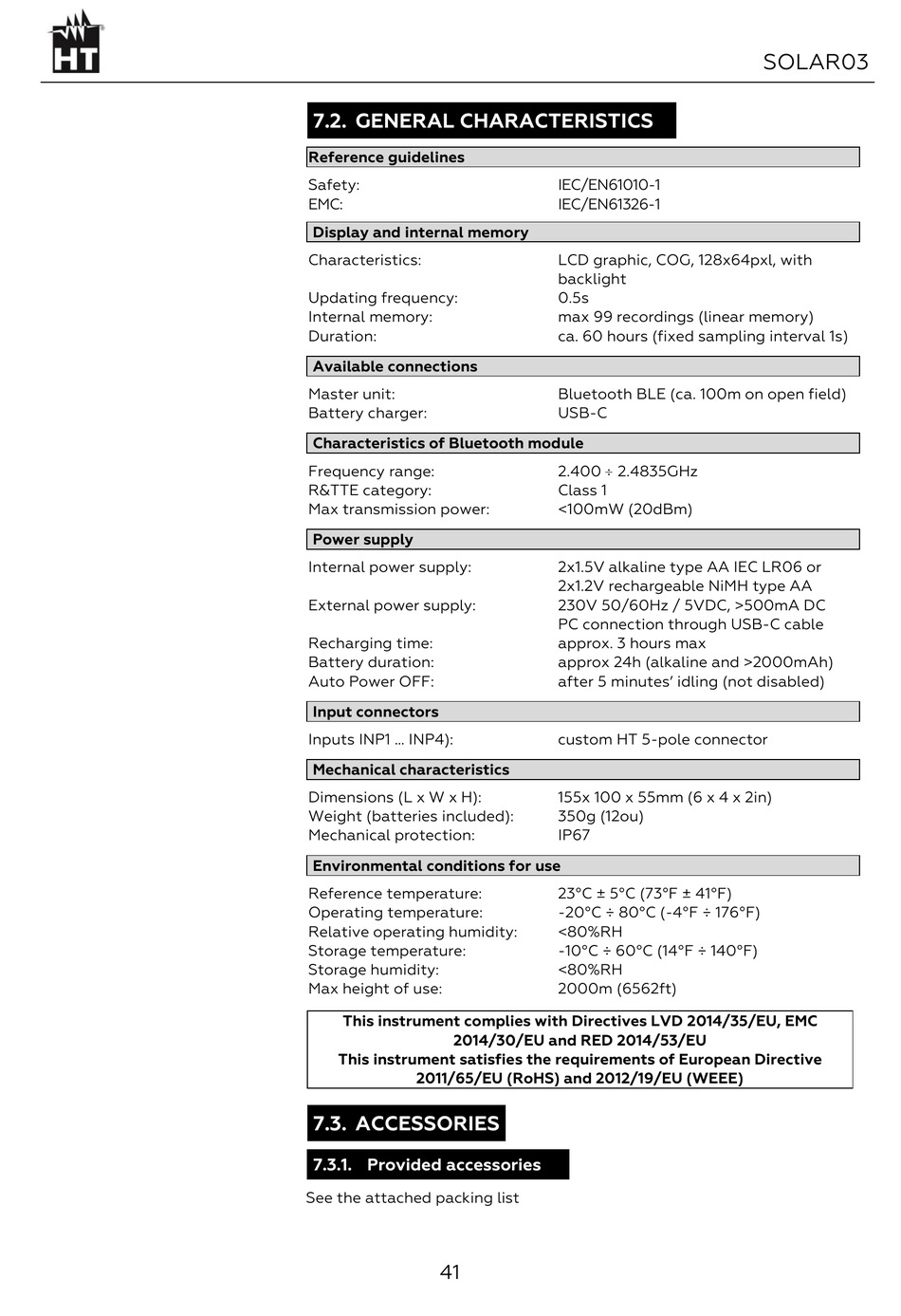

7.2. GENERAL CHARACTERISTICS
Reference guidelines
Safety:
EMC:
Display and internal memory
Characteristics:
Updating frequency:
Internal memory:
Duration:
Available connections
Master unit:
Battery charger:
Characteristics of Bluetooth module
Frequency range:
R&TTE category:
Max transmission power:
Power supply
Internal power supply:
External power supply:
Recharging time:
Battery duration:
Auto Power OFF:
Input connectors
Inputs INP1 ... INP4):
Mechanical characteristics
Dimensions (L x W x H):
Weight (batteries included):
Mechanical protection:
Environmental conditions for use
Reference temperature:
Operating temperature:
Relative operating humidity:
Storage temperature:
Storage humidity:
Max height of use:
This instrument complies with Directives LVD 2014/35/EU, EMC
2014/30/EU and RED 2014/53/EU
This instrument satisfies the requirements of European Directive
2011/65/EU (RoHS) and 2012/19/EU (WEEE)
7.3. ACCESSORIES
7.3.1. Provided accessories
See the attached packing list
41
IEC/EN61010-1
IEC/EN61326-1
LCD graphic, COG, 128x64pxl, with
backlight
0.5s
max 99 recordings (linear memory)
ca. 60 hours (fixed sampling interval 1s)
Bluetooth BLE (ca. 100m on open field)
USB-C
2.400  2.4835GHz
Class 1
<100mW (20dBm)
2x1.5V alkaline type AA IEC LR06 or
2x1.2V rechargeable NiMH type AA
230V 50/60Hz / 5VDC, >500mA DC
PC connection through USB-C cable
approx. 3 hours max
approx 24h (alkaline and >2000mAh)
after 5 minutes' idling (not disabled)
custom HT 5-pole connector
155x 100 x 55mm (6 x 4 x 2in)
350g (12ou)
IP67
23°C ± 5°C (73°F ± 41°F)
-20°C ÷ 80°C (-4°F ÷ 176°F)
<80%RH
-10°C ÷ 60°C (14°F ÷ 140°F)
<80%RH
2000m (6562ft)
