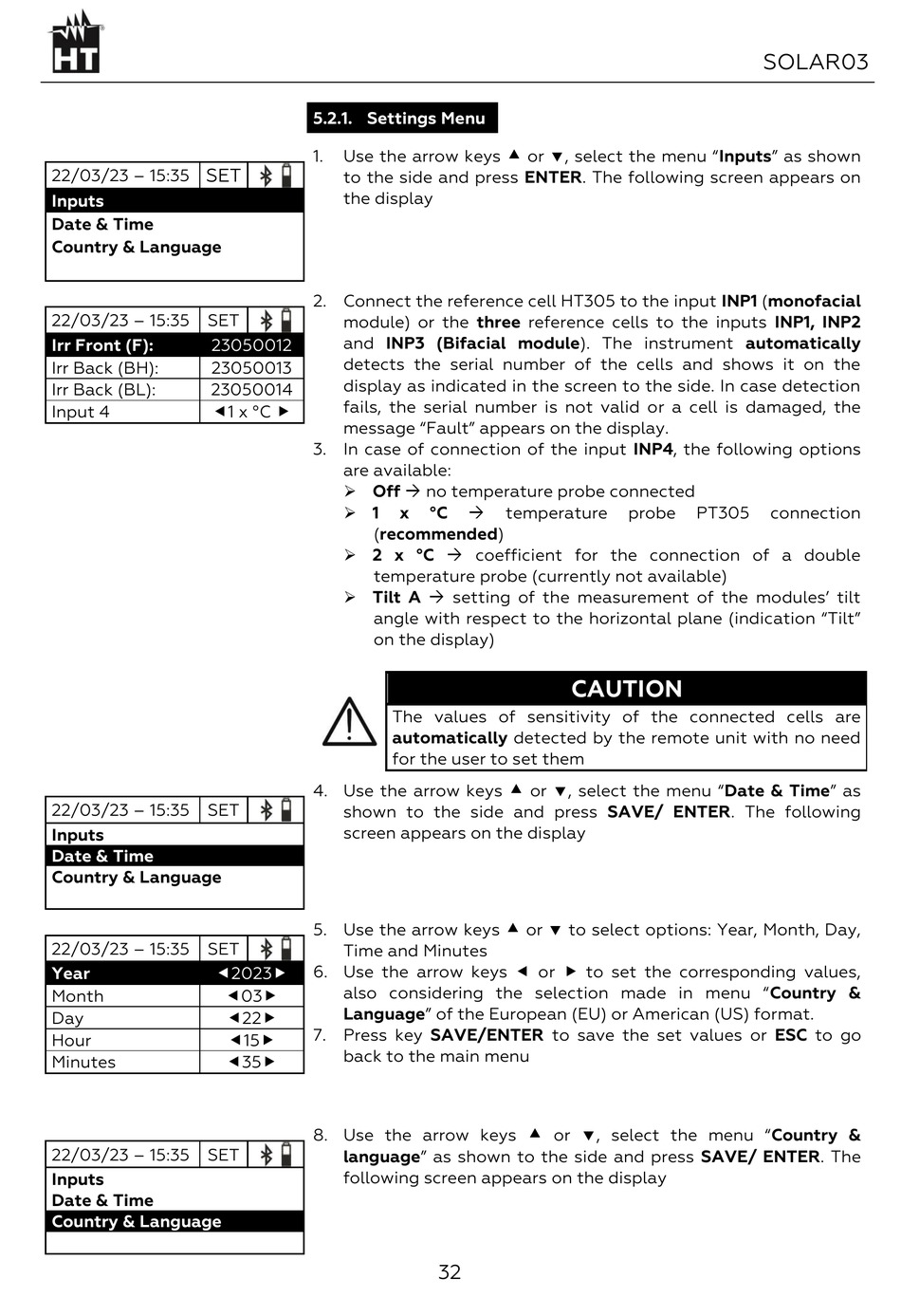

HT SOLAR03 Bedienungsanleitung Seite 32

SET
22/03/23 – 15:35
Inputs
Date & Time
Country & Language
22/03/23 – 15:35 SET
Irr Front (F): 23050012
Irr Back (BH): 23050013
Irr Back (BL): 23050014
1 x °C 
Input 4
22/03/23 – 15:35 SET
Inputs
Date & Time
Country & Language
22/03/23 – 15:35 SET
2023
Year
Month
Day
Hour
Minutes
22/03/23 – 15:35 SET
Inputs
Date & Time
Country & Language
5.2.1. Settings Menu
Use the arrow keys  or , select the menu "Inputs" as shown
1.
to the side and press ENTER. The following screen appears on
the display
2. Connect the reference cell HT305 to the input INP1 (monofacial
module) or the three reference cells to the inputs INP1, INP2
and INP3 (Bifacial module). The instrument automatically
detects the serial number of the cells and shows it on the
display as indicated in the screen to the side. In case detection
fails, the serial number is not valid or a cell is damaged, the
message "Fault" appears on the display.
3. In case of connection of the input INP4, the following options
are available:
➢ Off → no temperature probe connected
➢ 1
(recommended)
➢ 2 x °C → coefficient for the connection of a double
temperature probe (currently not available)
➢ Tilt A → setting of the measurement of the modules' tilt
angle with respect to the horizontal plane (indication "Tilt"
on the display)
The values of sensitivity of the connected cells are
automatically detected by the remote unit with no need
for the user to set them
4. Use the arrow keys  or , select the menu "Date & Time" as
shown to the side and press SAVE/ ENTER. The following
screen appears on the display
5. Use the arrow keys  or  to select options: Year, Month, Day,
Time and Minutes
6. Use the arrow keys  or  to set the corresponding values,
also considering the selection made in menu "Country &
03
Language" of the European (EU) or American (US) format.
22
7. Press key SAVE/ENTER to save the set values or ESC to go
15
back to the main menu
35
8. Use the arrow keys  or , select the menu "Country &
language" as shown to the side and press SAVE/ ENTER. The
following screen appears on the display
→
x °C temperature
32
probe PT305
CAUTION
SOLAR03
connection
