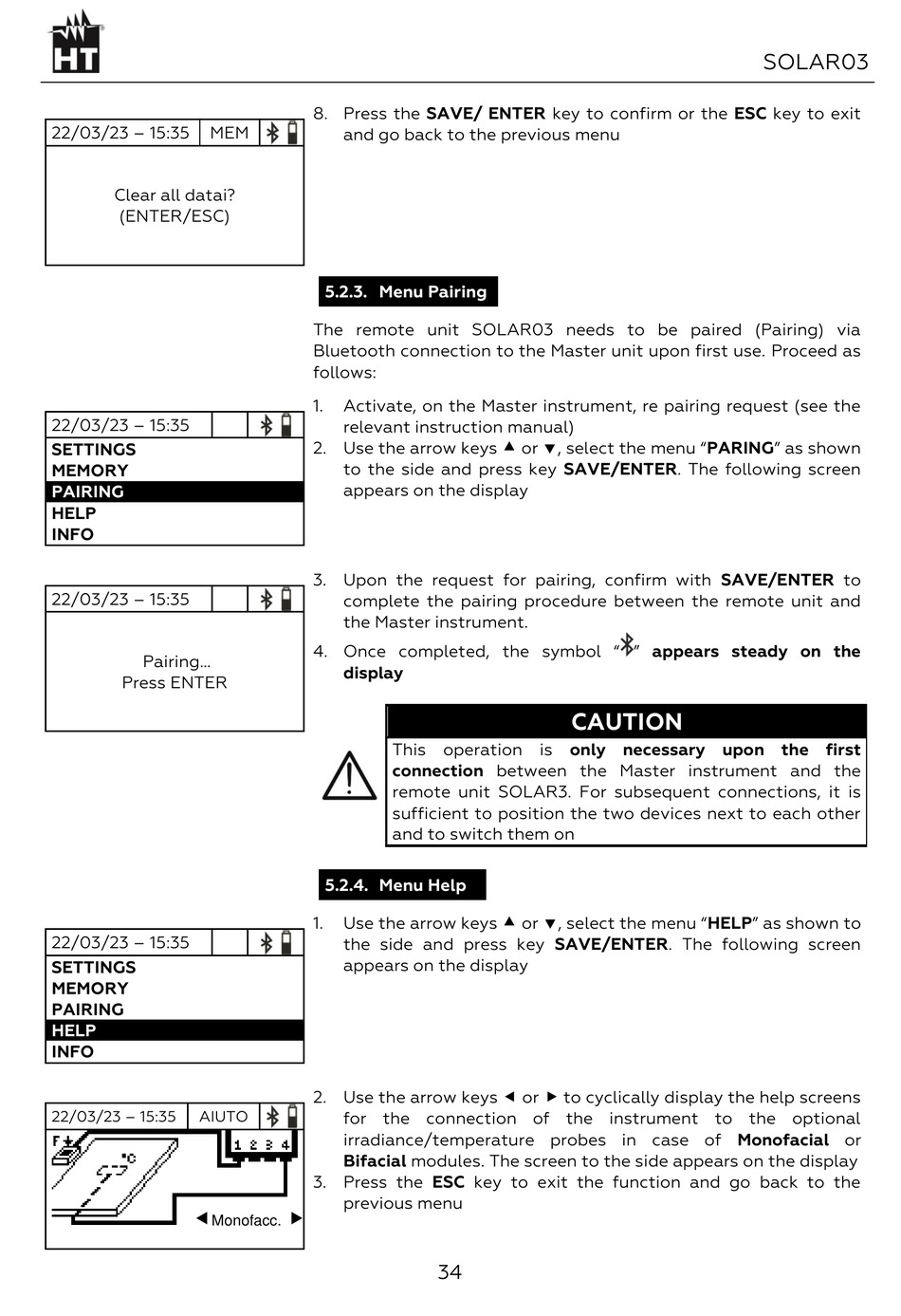

HT SOLAR03 Bedienungsanleitung Seite 34

22/03/23 – 15:35 MEM
Clear all datai?
(ENTER/ESC)
22/03/23 – 15:35
SETTINGS
MEMORY
PAIRING
HELP
INFO
22/03/23 – 15:35
Pairing...
Press ENTER
22/03/23 – 15:35
SETTINGS
MEMORY
PAIRING
HELP
INFO
22/03/23 – 15:35 AIUTO

Monofacc.
8. Press the SAVE/ ENTER key to confirm or the ESC key to exit
and go back to the previous menu
5.2.3. Menu Pairing
The remote unit SOLAR03 needs to be paired (Pairing) via
Bluetooth connection to the Master unit upon first use. Proceed as
follows:
1. Activate, on the Master instrument, re pairing request (see the
relevant instruction manual)
2. Use the arrow keys  or , select the menu "PARING" as shown
to the side and press key SAVE/ENTER. The following screen
appears on the display
3. Upon the request for pairing, confirm with SAVE/ENTER to
complete the pairing procedure between the remote unit and
the Master instrument.
4. Once completed, the symbol " " appears steady on the
display
This operation is only necessary upon the first
connection between the Master instrument and the
remote unit SOLAR3. For subsequent connections, it is
sufficient to position the two devices next to each other
and to switch them on
5.2.4. Menu Help
Use the arrow keys  or , select the menu "HELP" as shown to
1.
the side and press key SAVE/ENTER. The following screen
appears on the display
2. Use the arrow keys  or  to cyclically display the help screens
for the connection of the instrument to the optional
irradiance/temperature probes in case of Monofacial or
Bifacial modules. The screen to the side appears on the display
3. Press the ESC key to exit the function and go back to the
previous menu

34
CAUTION
SOLAR03
