Loosen the two screws (6) fixing the gas valve (1) on the gas blower (9).
Remove and dispose of the gas valve (1).
Remove and dispose of the seal of the gas valve (3).
3
1
>>
The removal is complete.
Work steps - Installation of the gas valve hot air and steam
1. Proceed in reverse order to install. For the installation, use the new com-
ponents provided.
2. A open-end wrench (size 20) and the torque wrench size 30 with 25Nm are
needed to connect the gas hoses to the gas valves (hot air and steam).
Do not place the open-end wrench on the gas hose. Only place the open-
end wrench on the nuts.

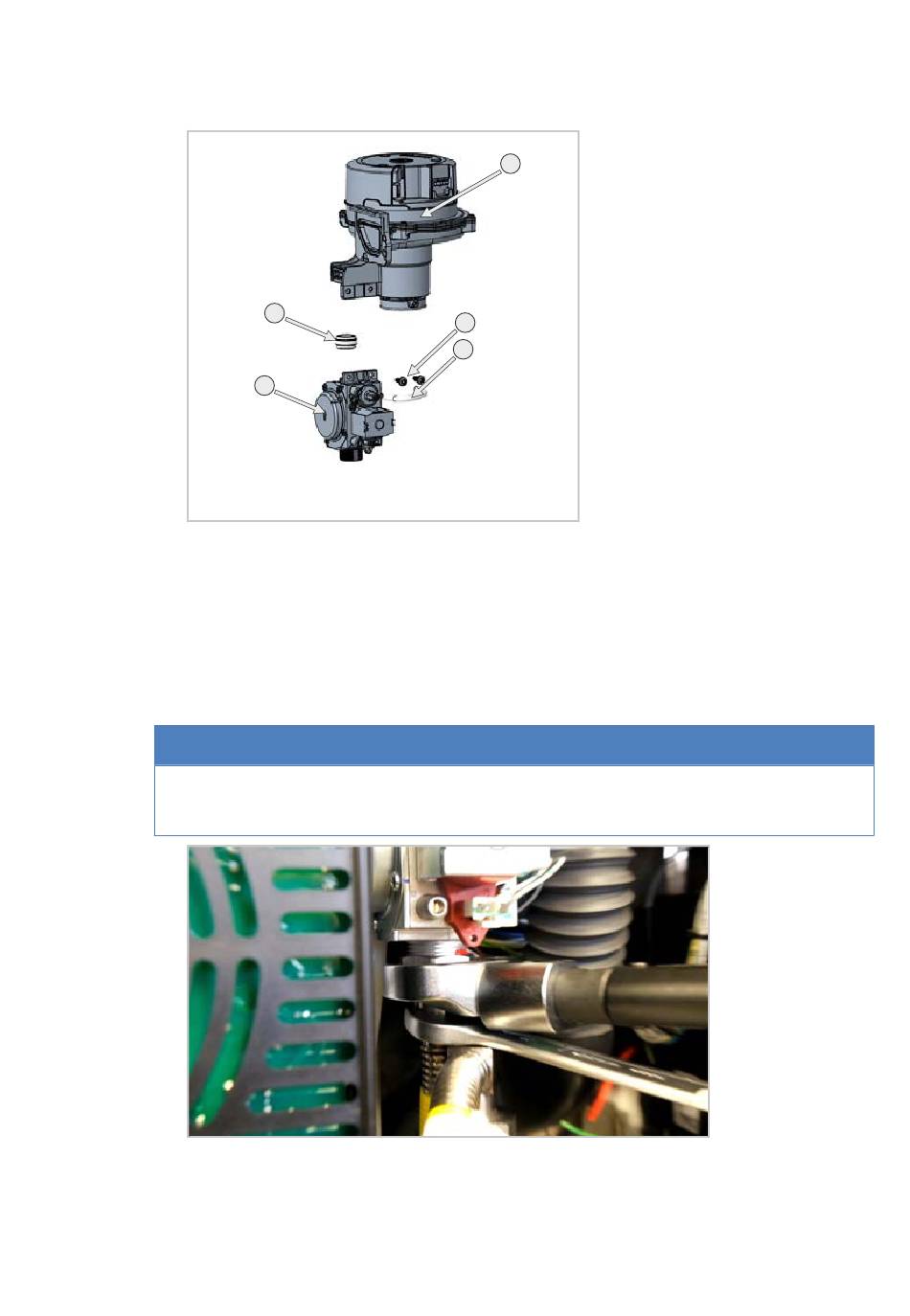

1 | MI_2156 Gas valve (hot air and steam) - dismantling and installation
