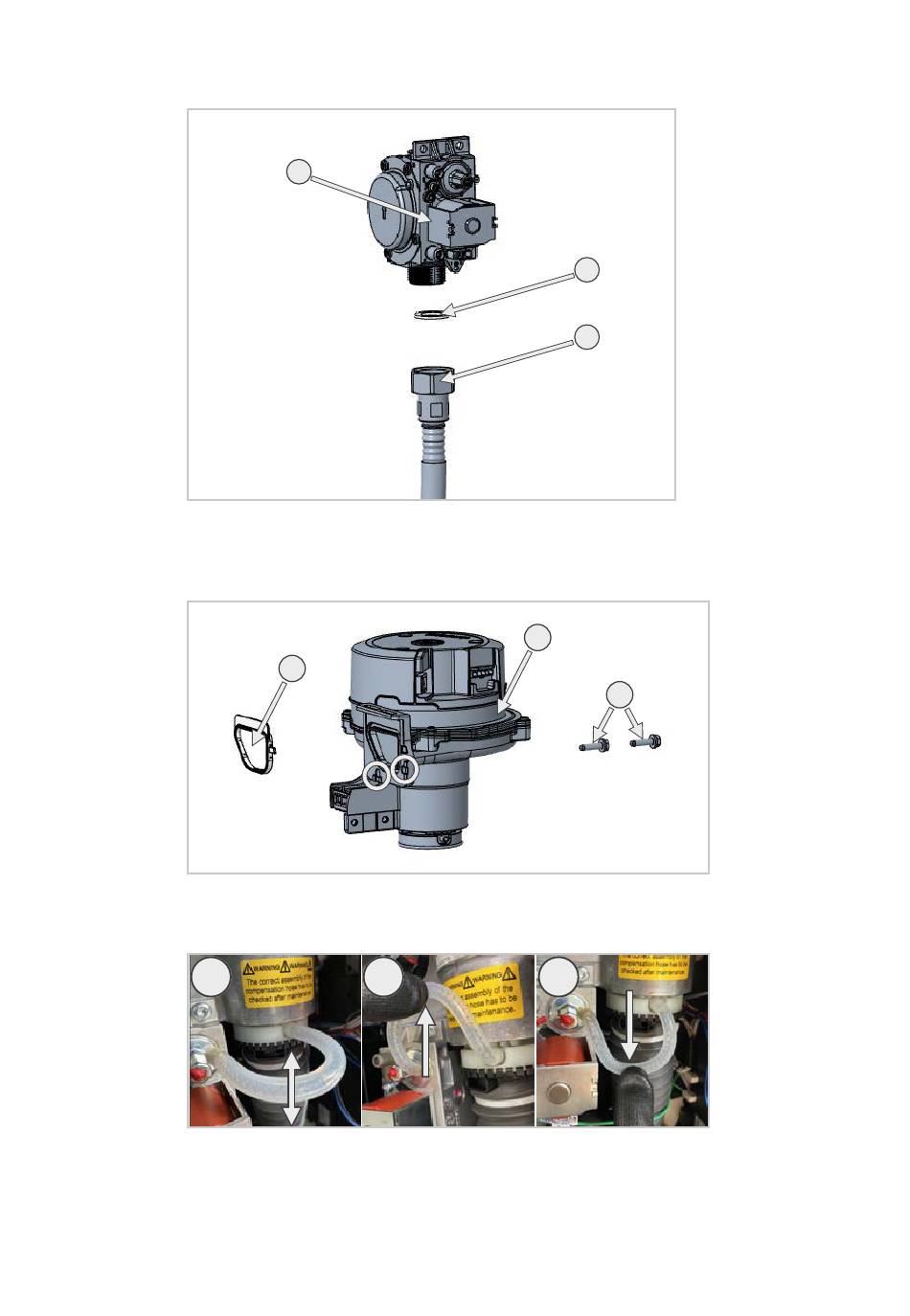

1 | MI_2156 Gas valve (hot air and steam) - dismantling and installation
2. Remove the yellow gas hose (7) and the seal for corrugated hose gas (5)
from the gas valve (1). Dispose of the seal for corrugated hose (gas) (5).
1
3. NOTE: If only the gas valve is to be replaced, continue with point 4.
Loosen the screws (8).
Remove the gas blower (9).
Remove and dispose of the seal on the gas blower (2).
2
4. Bend the compensation line (Fig. 1) on the gas blower up and down by 90°
alternately (see Fig. 2 and Fig. 3).
Repeat this process a total of 5 times.
