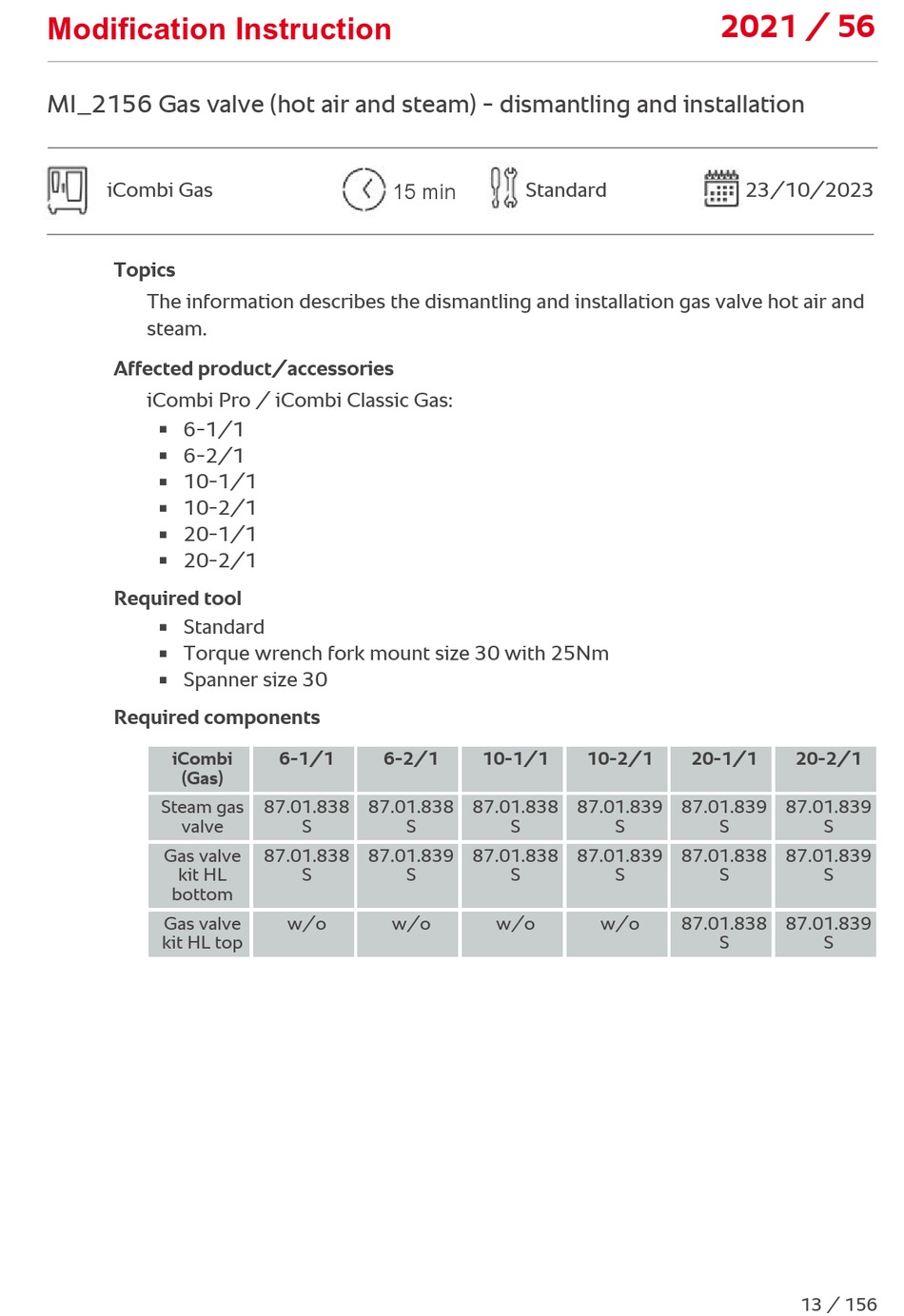

Rational iCombi Gas Umbauanleitung Seite 13

Modification Instruction
MI_2156 Gas valve (hot air and steam) - dismantling and installation
iCombi Gas
1 MI_2156 Gas valve (hot air and steam) - dismantling and installation
Topics
The information describes the dismantling and installation gas valve hot air and
steam.
Affected product/accessories
iCombi Pro / iCombi Classic Gas:
6-1/1
n
6-2/1
n
10-1/1
n
10-2/1
n
20-1/1
n
20-2/1
n
Required tool
Standard
n
Torque wrench fork mount size 30 with 25Nm
n
Spanner size 30
n
Required components
iCombi
(Gas)
Steam gas
valve
Gas valve
kit HL
bottom
Gas valve
kit HL top
15 min
6-1/1 6-2/1
87.01.838 87.01.838
S S
87.01.838 87.01.839
S S
w/o w/o
Standard
10-1/1 10-2/1
87.01.838 87.01.839
S S
87.01.838 87.01.839
S S
w/o w/o
2021 / 56
23/10/2023
20-1/1 20-2/1
87.01.839 87.01.839
S S
87.01.838 87.01.839
S S
87.01.838 87.01.839
S S
