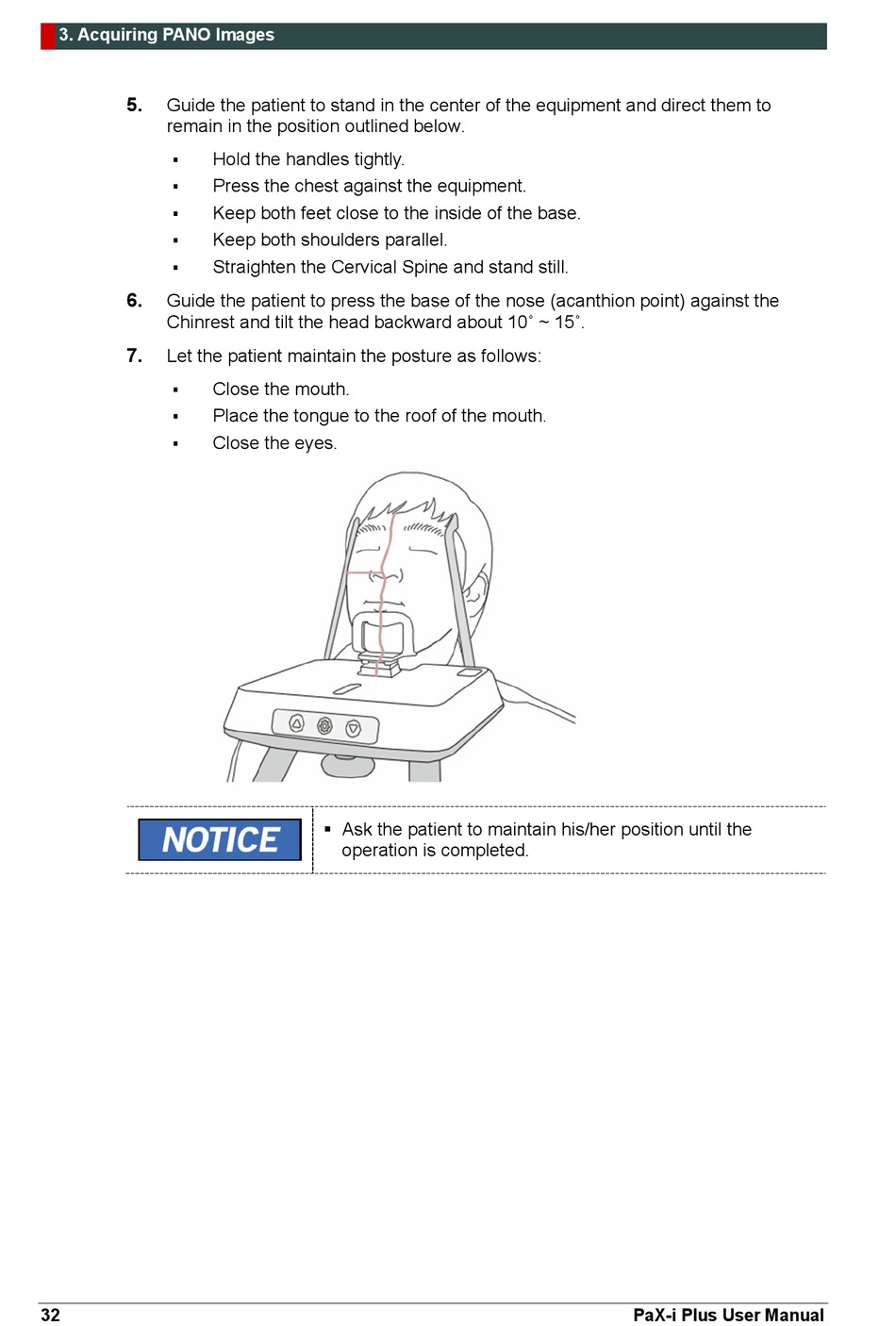

3. Acquiring PANO Images
5.
Guide the patient to stand in the center of the equipment and direct them to
remain in the position outlined below.





6.
Guide the patient to press the base of the nose (acanthion point) against the
Chinrest and tilt the head backward about 10˚ ~ 15˚.
7.
Let the patient maintain the posture as follows:



32
Hold the handles tightly.
Press the chest against the equipment.
Keep both feet close to the inside of the base.
Keep both shoulders parallel.
Straighten the Cervical Spine and stand still.
Close the mouth.
Place the tongue to the roof of the mouth.
Close the eyes.
 Ask the patient to maintain his/her position until the
operation is completed.
PaX-i Plus User Manual
