1. Imaging System Overview
1.3

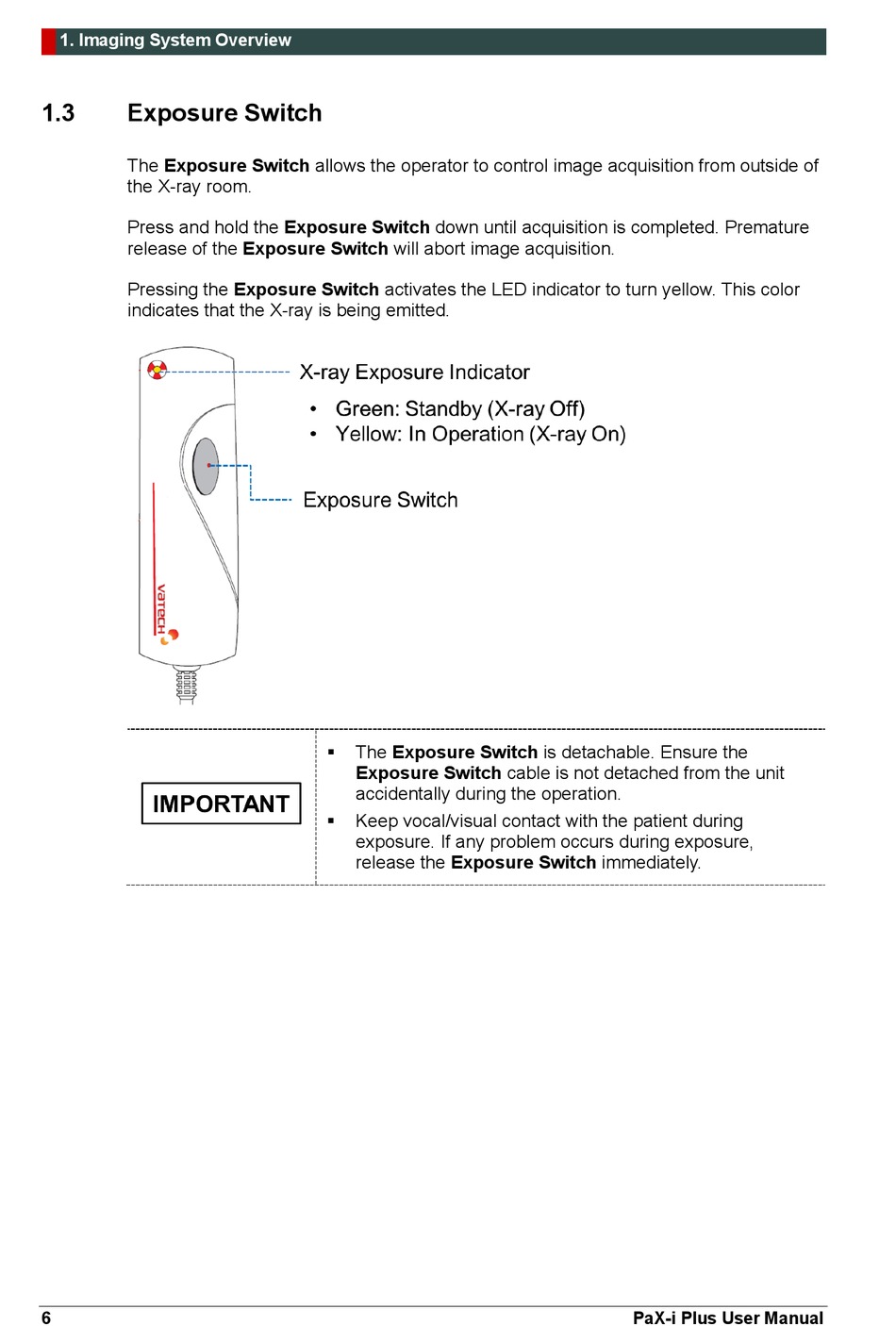

Exposure Switch

The Exposure Switch allows the operator to control image acquisition from outside of
the X-ray room.
Press and hold the Exposure Switch down until acquisition is completed. Premature
release of the Exposure Switch will abort image acquisition.
Pressing the Exposure Switch activates the LED indicator to turn yellow. This color
indicates that the X-ray is being emitted.
6
The Exposure Switch is detachable. Ensure the

Exposure Switch cable is not detached from the unit
accidentally during the operation.
Keep vocal/visual contact with the patient during

exposure. If any problem occurs during exposure,
release the Exposure Switch immediately.
