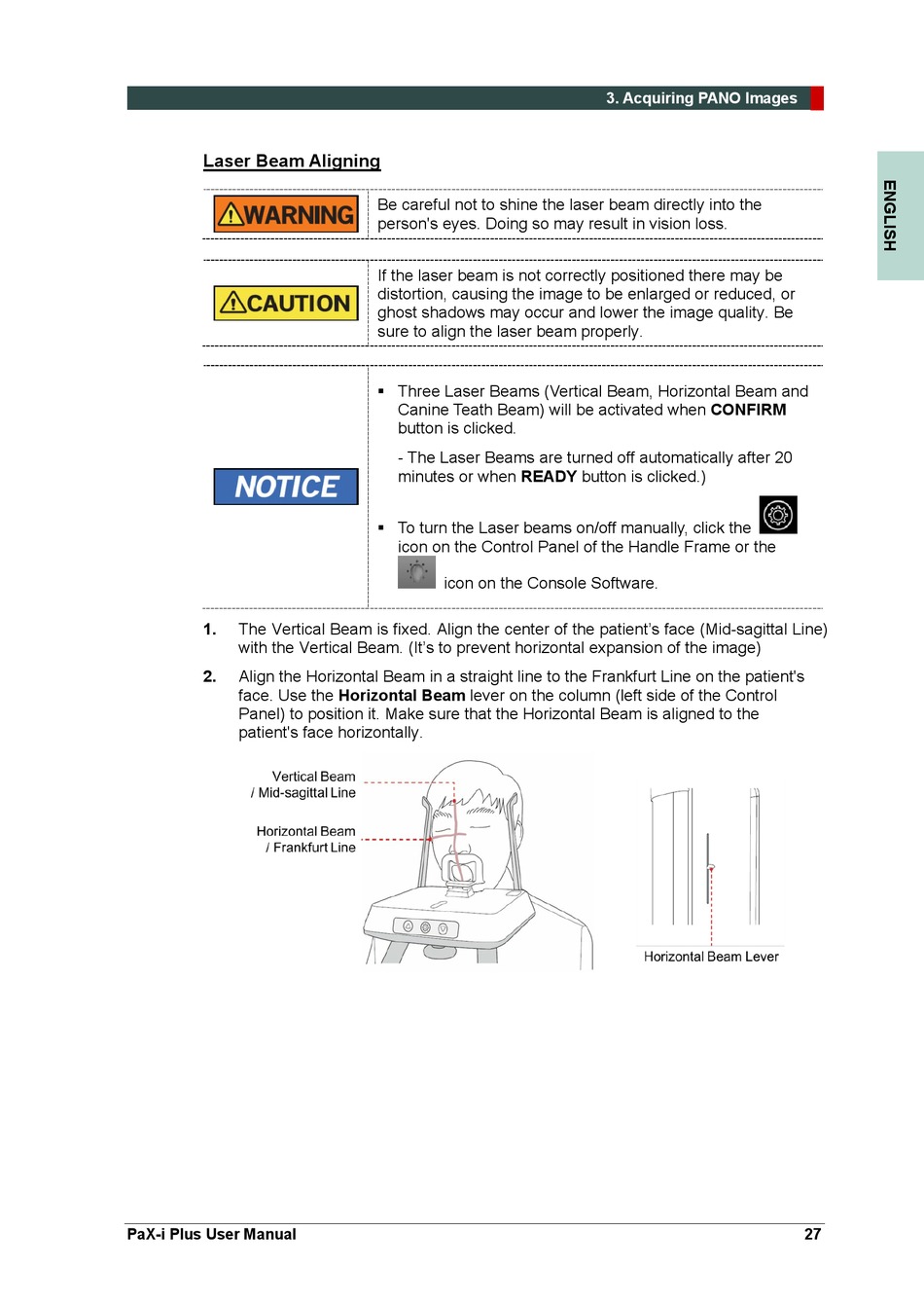

Laser Beam Aligning
1. The Vertical Beam is fixed. Align the center of the patient's face (Mid-sagittal Line)
with the Vertical Beam. (It's to prevent horizontal expansion of the image)
2. Align the Horizontal Beam in a straight line to the Frankfurt Line on the patient's
face. Use the Horizontal Beam lever on the column (left side of the Control
Panel) to position it. Make sure that the Horizontal Beam is aligned to the
patient's face horizontally.
PaX-i Plus User Manual
Be careful not to shine the laser beam directly into the
person's eyes. Doing so may result in vision loss.
If the laser beam is not correctly positioned there may be
distortion, causing the image to be enlarged or reduced, or
ghost shadows may occur and lower the image quality. Be
sure to align the laser beam properly.
 Three Laser Beams (Vertical Beam, Horizontal Beam and
Canine Teath Beam) will be activated when CONFIRM
button is clicked.
- The Laser Beams are turned off automatically after 20
minutes or when READY button is clicked.)
 To turn the Laser beams on/off manually, click the
icon on the Control Panel of the Handle Frame or the
icon on the Console Software.
