D R I V E 6 0 0 0 O p e r a t i n g M a n u a l
6.4 Cable inlet threads sizes
The following thread sizes are suitable for the standard motors
Motor size
063 - 132 S
132M - 160
180 - 200
Cable glands suitable for the motor protection level must be used.
Any unused cable entries must be closed, to the correct motor protection level.

6.5 Electrical connection

For technical characteristics and allowable range of application please check rating plate, data
given in this manual or in the catalogue. In case of special applications, the order acknowledge-
ment will give further details. If you have any questions, please contact Sumitomo Drive
Technologies, indicating type of motor and serial number.
Connect ground wire to this terminal

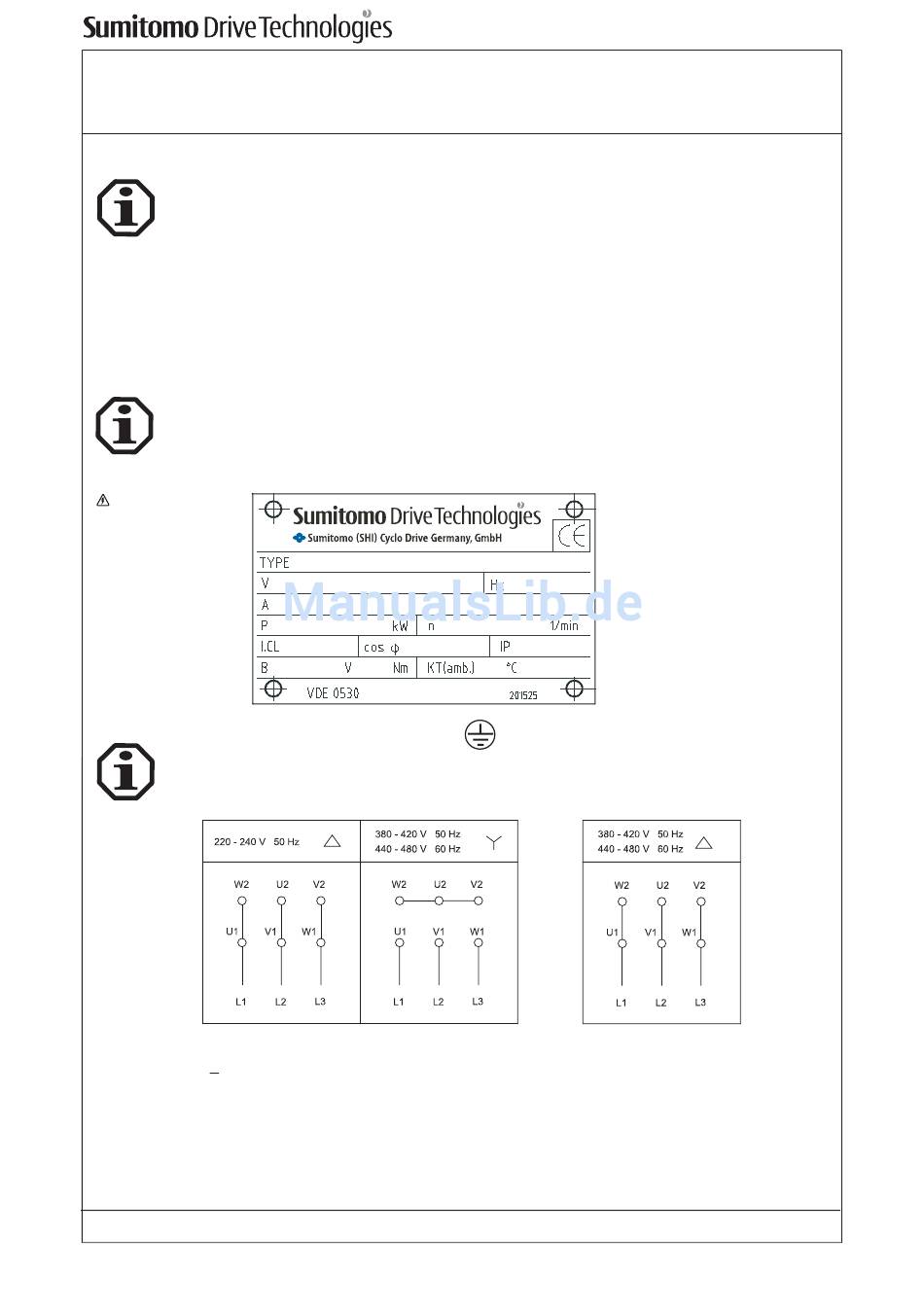

The terminal box shows a circuit diagram. The motors should be connected at the terminal
block according to the main power supply as follows
Rated operational voltage for the voltages above are according to DIN EN 60 034-1
with + 5% tolerance.
Tightening torques for the terminal block bolts:
Connecting bolt thread
M4
M5
M6
M8
D6000_GB_08_06 NO. 991009
Pg
2 x Pg 16
2 x Pg 21
2 x Pg 42
tightening torque in Nm
1,2
2,5
4,0
7,5
Issue: 08/2006
Metric
2 x M 25 x 1,5
2 x M 32 x 1,5
2 x M 50 x 1,5
page 22
