5. Piece parts

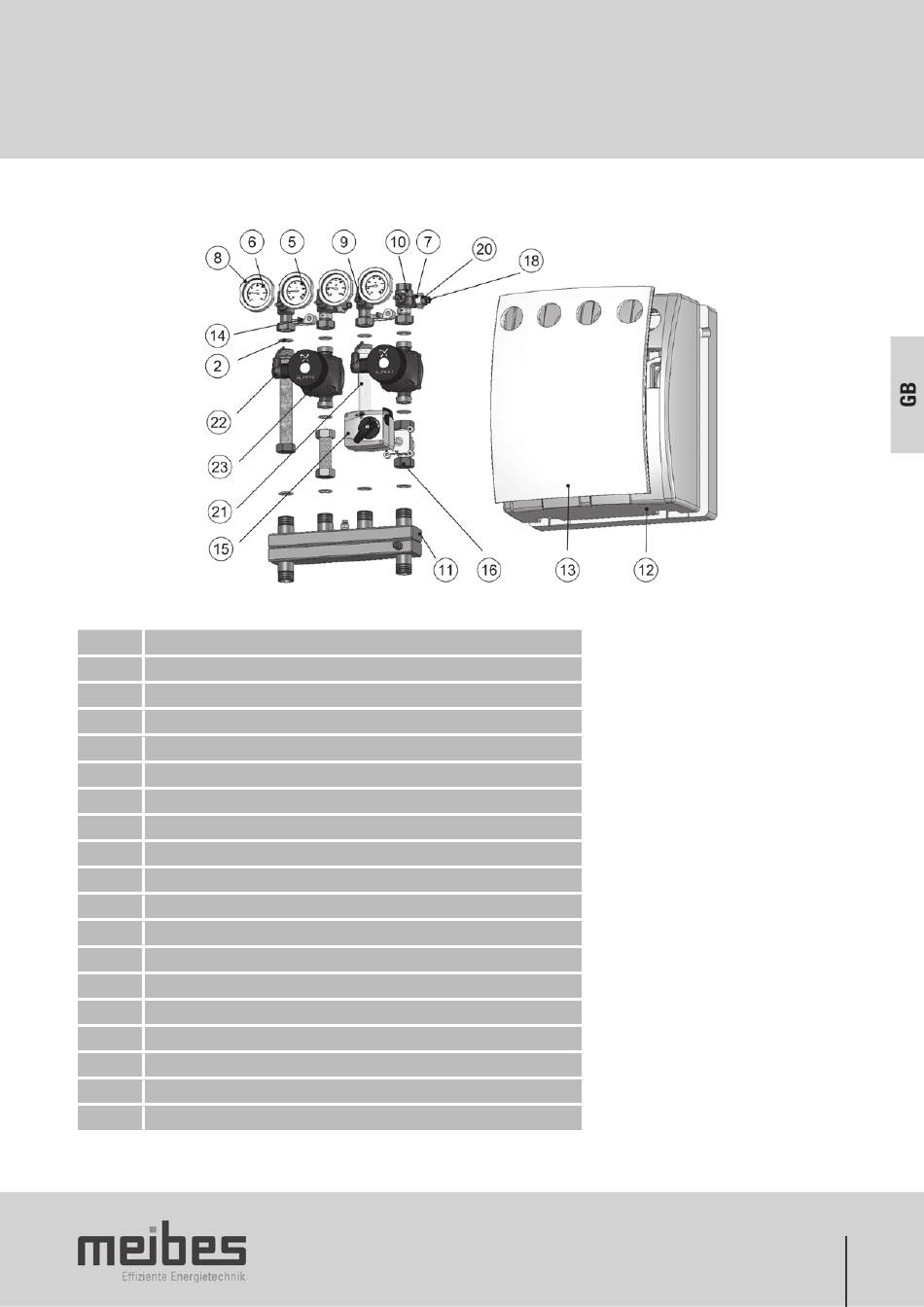

Legend
Item No. Name
2 Seal 1"
5 Thermometer, blue 0-120
6 Thermometer, red 20-150
7 Union nut ¾"
8 Ball valve handle
9 Ball valve ¾"
10 Three-way ball valve ¾"
11 Kombimix distributor
12 Thermal insulation
13 Front panel
14 Retaining clip 1x25 mm
15 Servomotor
16 Three-way mixer 1"
18 Clamping screw for thermowell
20 Thermowell 1/4" AG, L=35 mm
21 T-piece
22 Pump plug
23 Pump
