4. Components

4.4 Diverter valve

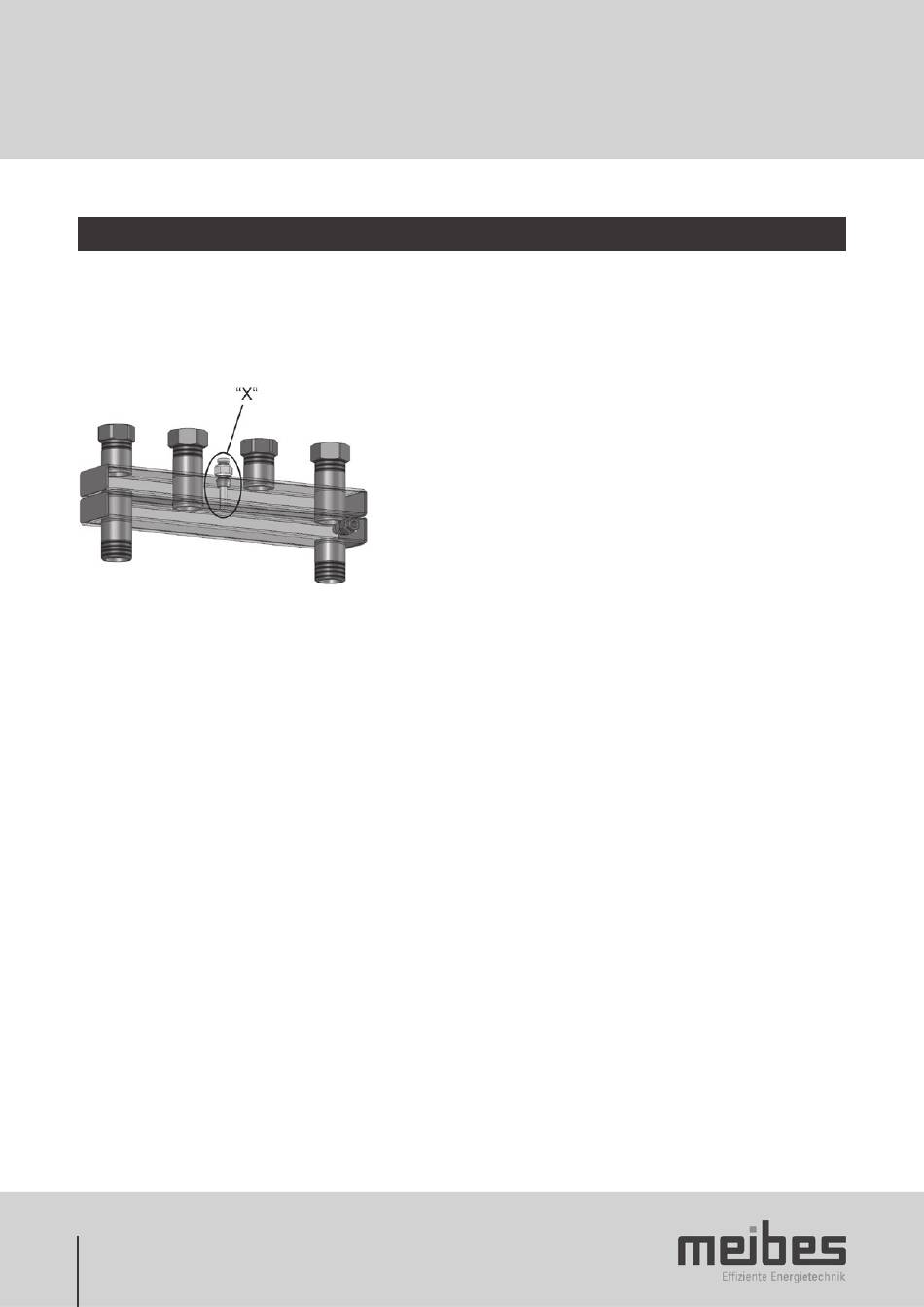

In distribution bars, the "X" diverter valve can be used to alter the hydraulic properties of the heating circuit distributor
according to the required function:
Standard:
•
• Low differential pressure: Supply and return lines are hydraulically connected via an opening
For low differential pressure installation: Disassemble valve and reassemble rotated by 180°.
Note:
For layout diagram with flow via bypass, see Chapter 6.1
30
Supply and return lines are hydraulically separated
