Model S and E
Modell S
L N
1
L N
10-F11

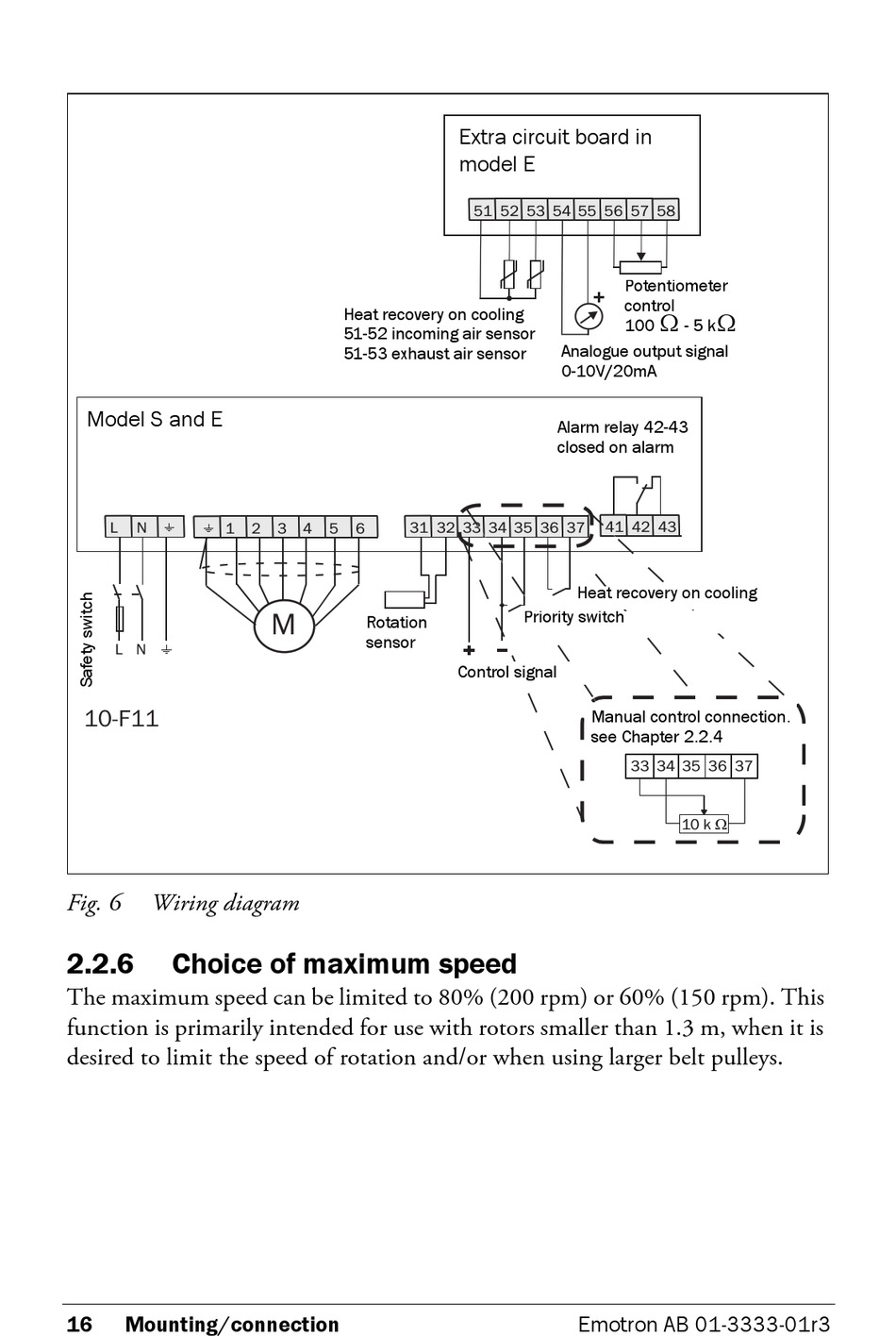

Fig. 6 Wiring diagram
2.2.6

Choice of maximum speed

The maximum speed can be limited to 80% (200 rpm) or 60% (150 rpm). This
function is primarily intended for use with rotors smaller than 1.3 m, when it is
desired to limit the speed of rotation and/or when using larger belt pulleys.
16 Mounting/connection
Heat recovery on cooling
51-52 incoming air sensor
51-53 exhaust air sensor
31 32 33 34 35 36 37
2 3 4 5 6
Rotation
M
sensor
Extra circuit board in
I U
model E
J1
51 52 53 54 55 56 57
Potentiometer
control
100
Analogue output signal
0-10V/20mA
Alarm relay 42-43
closed on alarm
41 42 43
Heat recovery on cooling
Priority switch
Control signal
Manual control connection.
see Chapter 2.2.4
Emotron AB 01-3333-01r3
58
 
- 5 k
33 34 35 36 37
10 k Ω
