2.

Mounting/connection

2.1

Mounting

Both the motor and the control unit are usually mounted in the heat exchanger
housing. In this way, they do not occupy any space outside of the heat
exchanger housing and are well protected during transport. Furthermore, it is
often advantageous from the point of view of interference (EMC) to place the
motor and control unit in the rotor housing. The motor is usually mounted on
a sprung motor support when a V-belt is used. In this way, problems arising if
non-circular rotors are used can be prevented. Vibration dampers should be
mounted between the motor and the motor support so that any vibration from
the motor is not transmitted to the rotor housing
10-F08 10-F08

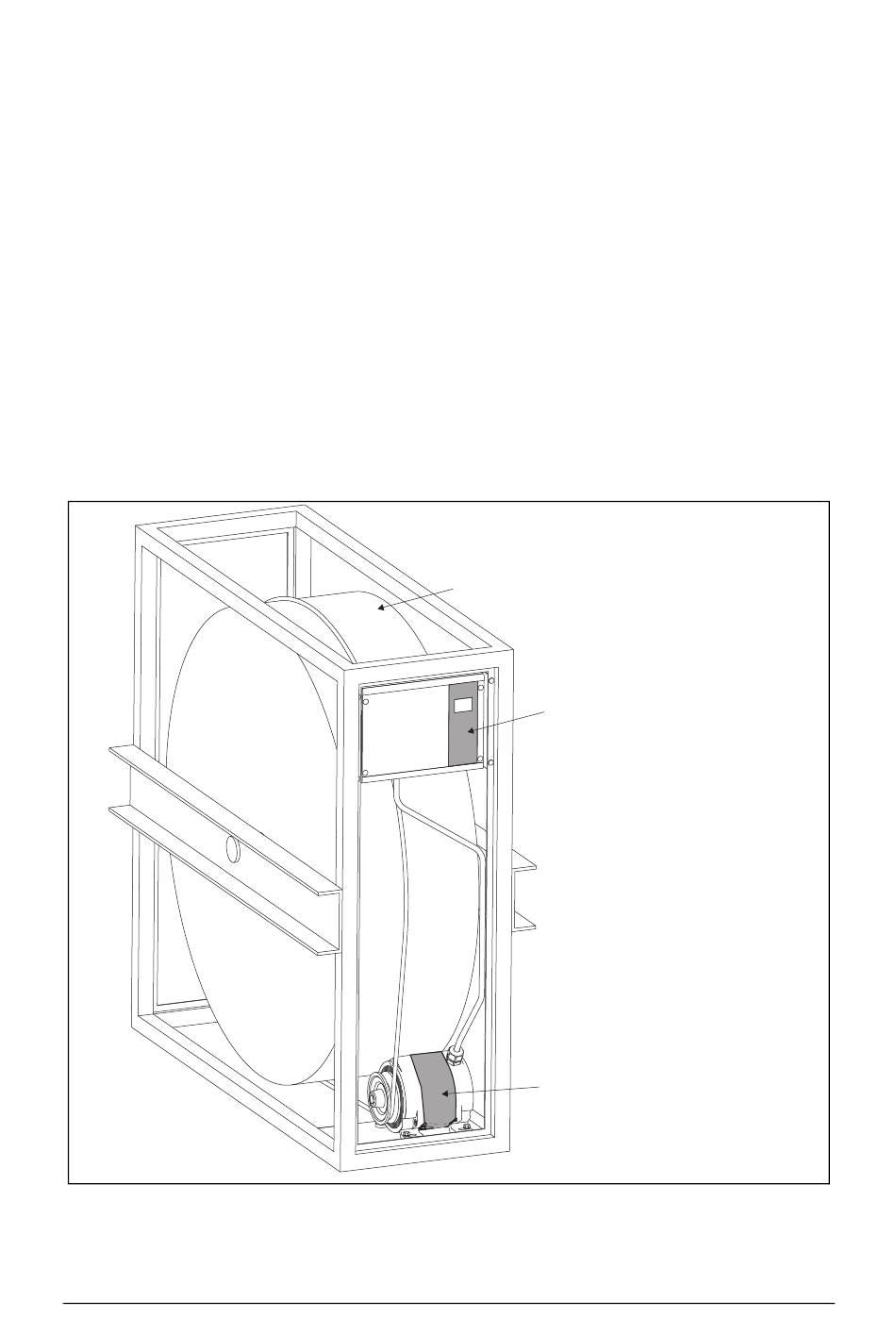

Fig. 2 Heat exchanger rotor and drive system
Emotron AB 01-3333-01r3
.
Heat exchanger
Control unit
Motor
