temperature sensors.
The system relays the collected data to the cloud via cellular or
Ethernet communication. The system can be monitored through the
Grundfos iSolutions Cloud website and a local webserver.
4
1
1
1
3
1
5
1
2
7

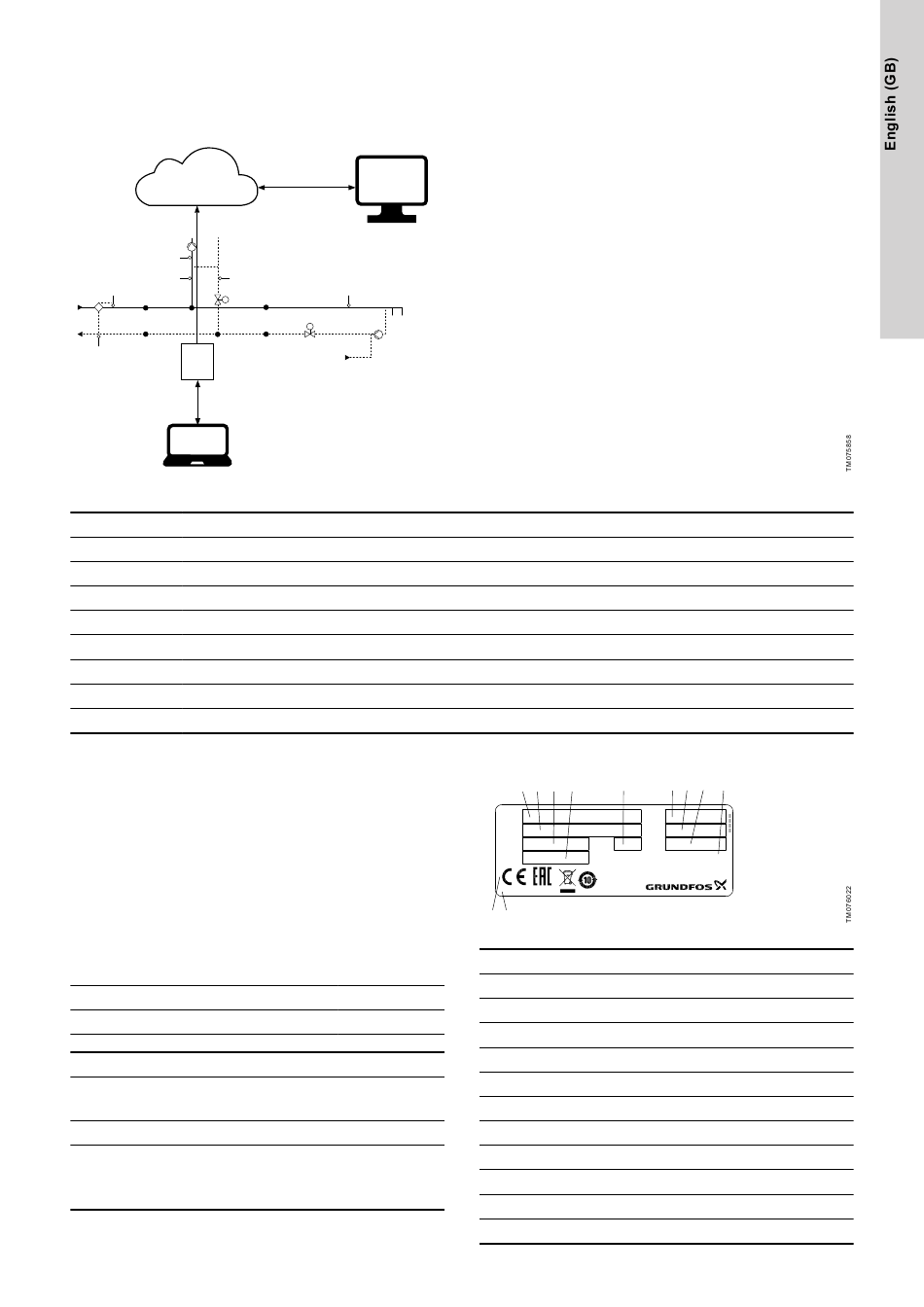

Pos.
Description
1
Temperature sensor
2
Controller (Grundfos BuildingConnect)
3
Heat meter
4
Pump
5
Motorised valve
6
Heat exchanger
7
Local webserver for Grundfos BuildingConnect
8
Online portal for Grundfos BuildingConnect
2.2 Intended use
The system helps facility managers to control and monitor their
HVAC installation.
It can be used for drinking water, district heating water and central
heating water.
It must not be used to control other installations.
2.3 Identification
Each product has an identification number displayed on the
product's enclosure. This number is a unique identifier and is
needed when contacting Grundfos with questions or service
requests.
2.3.1 Type key
Example
BCCON
Pos.
1
Pos.
Description
Type:
1
•
BuildingConnect controller
2
Serie
Gateway version:
3
•
MS, gateway with SIM
•
ME, gateway with Ethernet
The Grundfos BuildingConnect controller utilises EtherCAT®.
EtherCAT® is a registered trademark and patented technology,
licensed by Beckhoff Automation Gmbh, Germany.
8
1
5
6
4
2.3.2 Nameplate
1
MS
2
3
1 2 3
4
5
Type
P.N.
P.C.
U
N
IP
S.N.
I Max
T
°C
amb
Made in Denmark
DK - 8850 Bjerringbro Denmark
11
10
Pos.
Description
1
Product name
2
Supply voltage
3
Rated current
4
Min./max. ambient temperature
5
Enclosure class
6
Version number
7
Production code (year and week)
8
Serial number
9
Factory code
10
Production site
11
Markings and approvals
6 7 8
