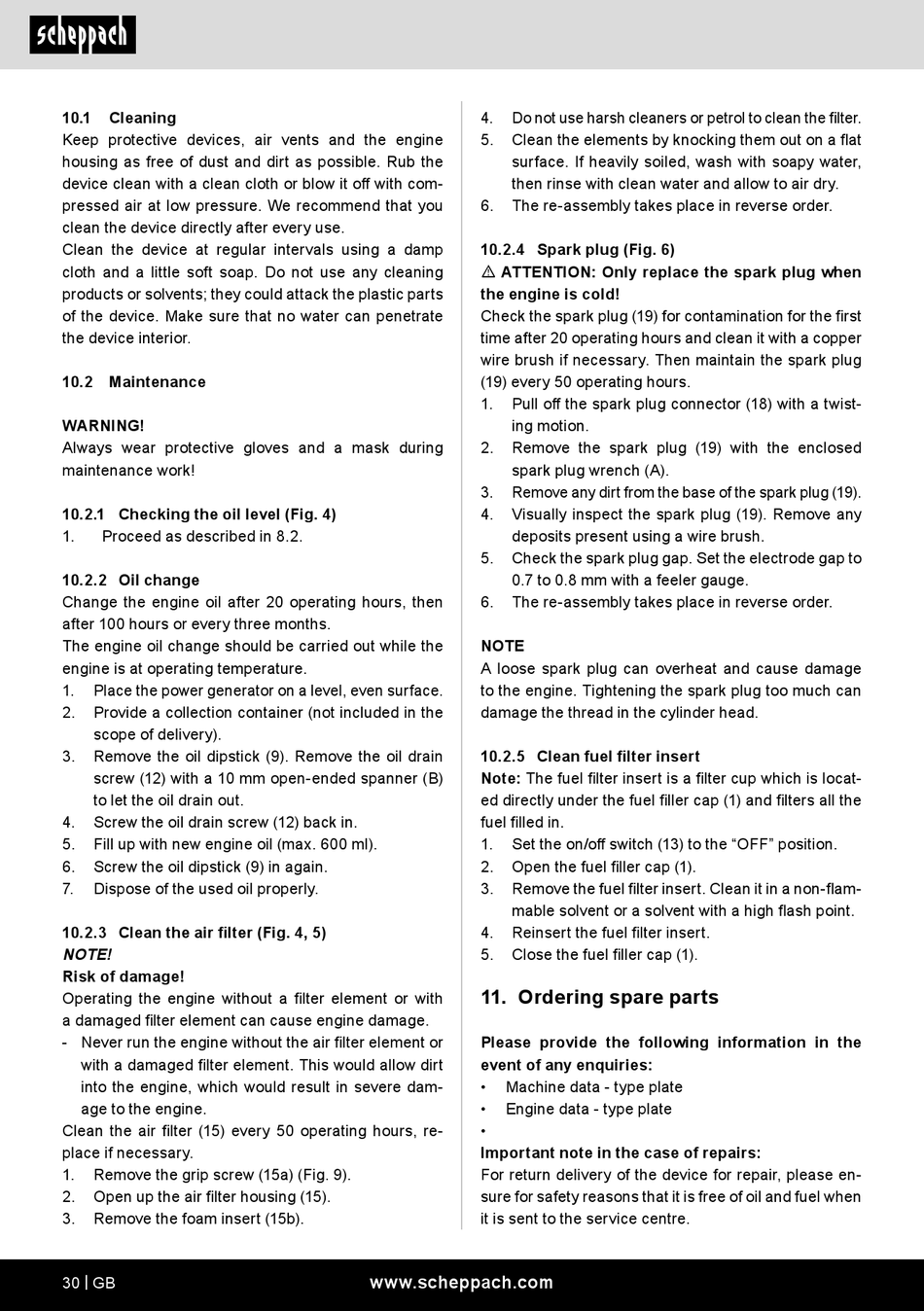

10.1 Cleaning
Keep protective devices, air vents and the engine
housing as free of dust and dirt as possible. Rub the
device clean with a clean cloth or blow it off with com-
pressed air at low pressure. We recommend that you
clean the device directly after every use.
Clean the device at regular intervals using a damp
cloth and a little soft soap. Do not use any cleaning
products or solvents; they could attack the plastic parts
of the device. Make sure that no water can penetrate
the device interior.
10.2 Maintenance
WARNING!
Always wear protective gloves and a mask during
maintenance work!
10.2.1 Checking the oil level (Fig. 4)
1. Proceed as described in 8.2.
10.2.2 Oil change
Change the engine oil after 20 operating hours, then
after 100 hours or every three months.
The engine oil change should be carried out while the
engine is at operating temperature.
1. Place the power generator on a level, even surface.
2. Provide a collection container (not included in the
scope of delivery).
3. Remove the oil dipstick (9). Remove the oil drain
screw (12) with a 10 mm open-ended spanner (B)
to let the oil drain out.
4. Screw the oil drain screw (12) back in.
5. Fill up with new engine oil (max. 600 ml).
6. Screw the oil dipstick (9) in again.
7. Dispose of the used oil properly.
10.2.3 Clean the air filter (Fig. 4, 5)
NOTE!
Risk of damage!
Operating the engine without a filter element or with
a damaged filter element can cause engine damage.
- Never run the engine without the air filter element or
with a damaged filter element. This would allow dirt
into the engine, which would result in severe dam-
age to the engine.
Clean the air filter (15) every 50 operating hours, re-
place if necessary.
1. Remove the grip screw (15a) (Fig. 9).
2. Open up the air filter housing (15).
3. Remove the foam insert (15b).
30 | GB
4. Do not use harsh cleaners or petrol to clean the filter.
5. Clean the elements by knocking them out on a flat
surface. If heavily soiled, wash with soapy water,
then rinse with clean water and allow to air dry.
6. The re-assembly takes place in reverse order.
10.2.4 Spark plug (Fig. 6)
m ATTENTION: Only replace the spark plug when
the engine is cold!
Check the spark plug (19) for contamination for the first
time after 20 operating hours and clean it with a copper
wire brush if necessary. Then maintain the spark plug
(19) every 50 operating hours.
1. Pull off the spark plug connector (18) with a twist-
ing motion.
2. Remove the spark plug (19) with the enclosed
spark plug wrench (A).
3. Remove any dirt from the base of the spark plug (19).
4. Visually inspect the spark plug (19). Remove any
deposits present using a wire brush.
5. Check the spark plug gap. Set the electrode gap to
0.7 to 0.8 mm with a feeler gauge.
6. The re-assembly takes place in reverse order.
NOTE
A loose spark plug can overheat and cause damage
to the engine. Tightening the spark plug too much can
damage the thread in the cylinder head.
10.2.5 Clean fuel filter insert
Note: The fuel filter insert is a filter cup which is locat-
ed directly under the fuel filler cap (1) and filters all the
fuel filled in.
1. Set the on/off switch (13) to the "OFF" position.
2. Open the fuel filler cap (1).
3. Remove the fuel filter insert. Clean it in a non­flam-
mable solvent or a solvent with a high flash point.
4. Reinsert the fuel filter insert.
5. Close the fuel filler cap (1).

11. Ordering spare parts

Please provide the following information in the
event of any enquiries:
• Machine data - type plate
• Engine data - type plate
•
Important note in the case of repairs:
For return delivery of the device for repair, please en-
sure for safety reasons that it is free of oil and fuel when
it is sent to the service centre.
