BNI PNT-508-105-Z067 / BNI PNT-508-105-Z077 / BNI PNT-502-102-Z078
Network interface
2
System integration (continued)
2.4 IO-Link Configuration
In the IO-Link module parameters, the IO-Link parameters
of the respective port can be changed.

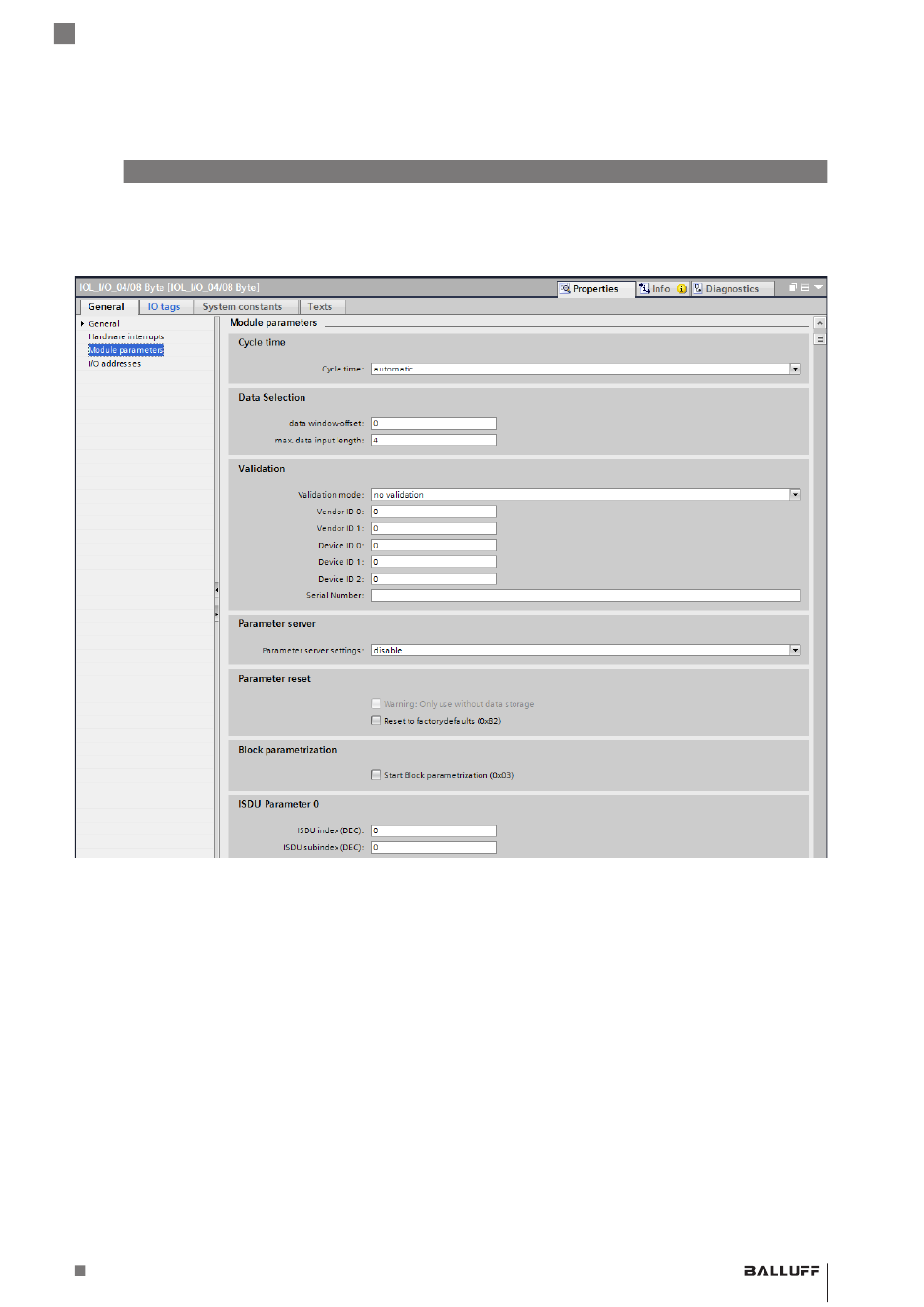

Fig. 2-16: IO-Link Configuration
Cycle time
With this parameter, the IO-Link communication speed can
be set.
The cycle time can be adjusted using the scroll-down
menu.
Data Selection
With the "data window offset", the process data start byte
can be defined. With the "max. input data length", the
actual process data length of the IO-Link device is entered.
These settings are only for the input data.
The visible data window of the input data can be adapted
via an IO-Link module with corresponding process data
length.
