Connection J2 - Logic Output Interconnections

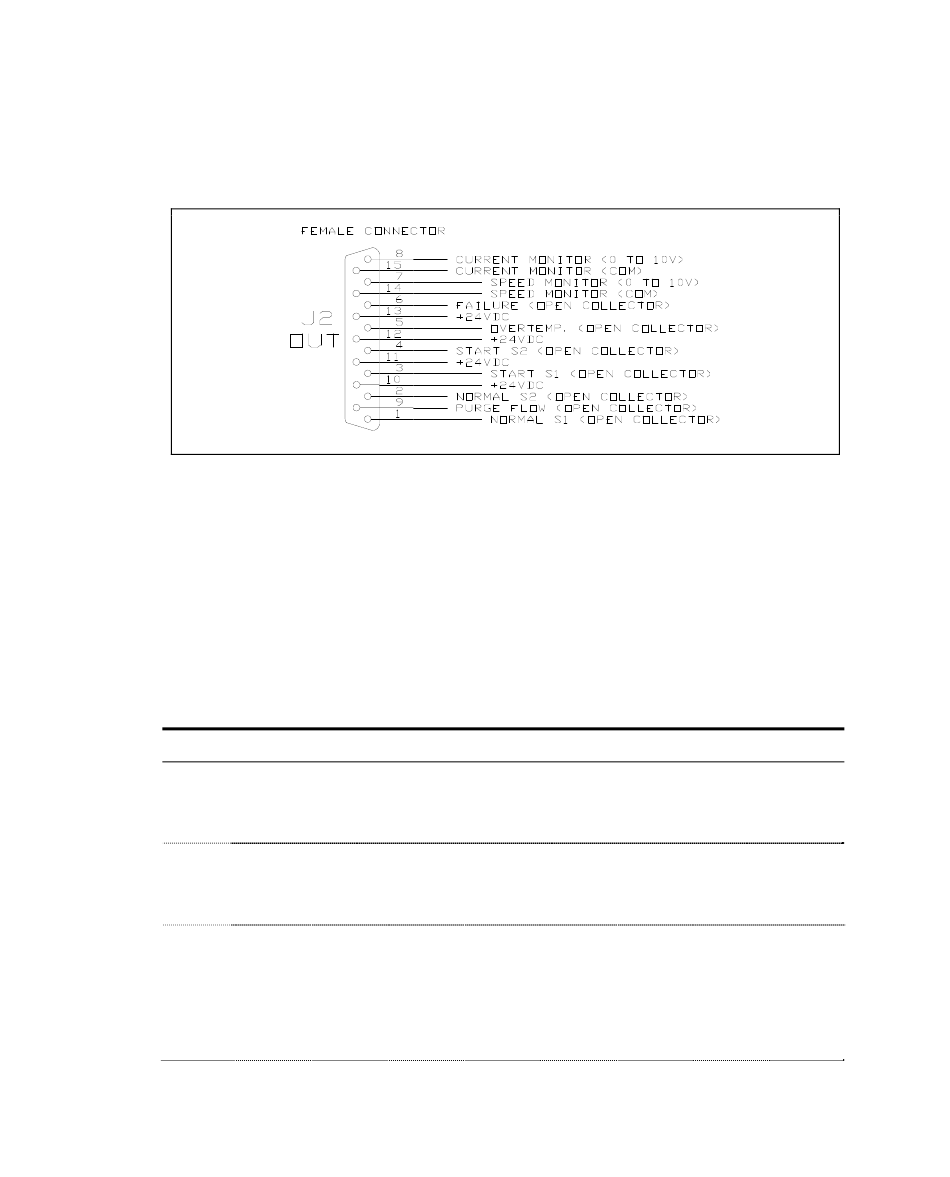

Figure 11
All the logic output from the controller must be connected at P2
mating connector. With the optional P2 mating connector make the
connection with AWG 24 (0.25 mm
indicated in the figure to obtain the desired capability.
The following table describes the signals available on the connector.
Tab. 4
PIN
1-10 *
2-10
∗
3-11
∗
216/268
Logic output connector
DESCRIPTION
Normal S1 signal 24 V 60 mA, optically isolated output (pin 10 positive, pin 1
negative). The output Voltage will be present when the rotational speed of the
pump is higher than the selected high speed threshold.
Normal S2 signal 24 V 60 mA, optically isolated output (pin 10 positive, pin 2
negative). The output Voltage will be present when the rotational speed of the
pump is higher than the selected low speed threshold.
START S1 signal 24 V, 60 mA, optically isolated output (pin 11 positive, pin 3
negative).
The output Voltage will be present when the START push-button on front panel
is pressed or the remote start is present. or the function has been requested by
RS 232/422/485, until NORMAL operation is reached.
