Stop Speed Reading and Active Stop

This functions can be activated by Front Panel or serial line (Win
107, 167). Active Stop brakes the pump using the motor. The Stop
Speed reading reads the pump speed after a stop command.

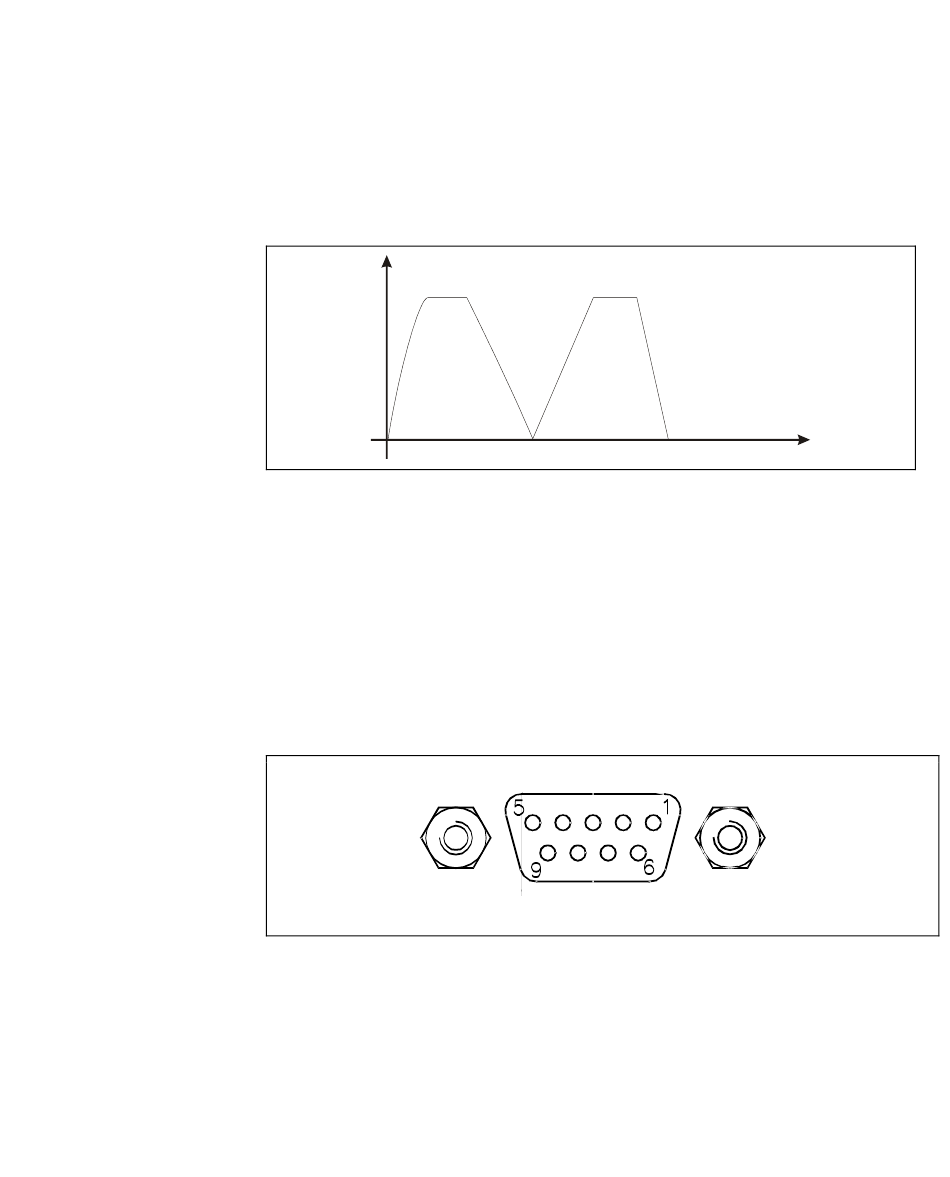

Figure 25
J2 – Serial Connector
This connector provides the connection for RS – 232 and RS – 485
serial line.
J2 Pin-out:
Figure 26
Turbo-V 81-AG Rack Controller User Manual / 87-900-986-01
SSR AS
(I)
Technical Information
Controller Connection
