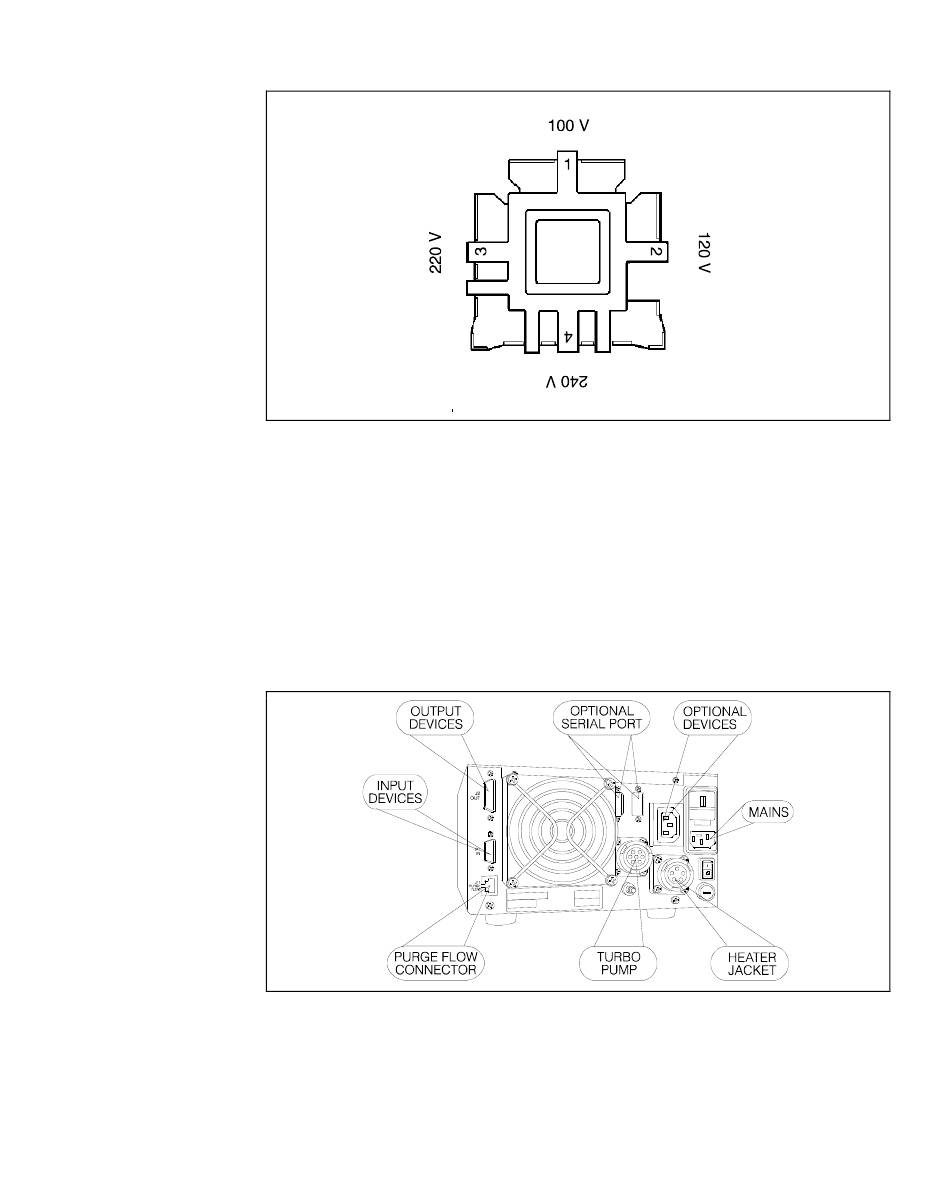

Figure 7
To change the power supply voltage rating after having removed the
assembly as explained above, extract the voltage changer and then
reposition it to view the desired voltage rating.

Interconnections

The following figure shows the Controller interconnections.
Figure 8
Turbo-V 1000 ICE Controller User Manual / 87-900-905-01 (M)
Voltage Changer
Controller models 969-9447 and 969-9547 interconnection
Technical Information

Interconnections
