17 Technical Information
Interconnections
Connection J10 - Controller to Pump Connection
A five-meter long cable is provided to connect the controller to the
pump. The following figures show the controller output connector
configuration where pins:

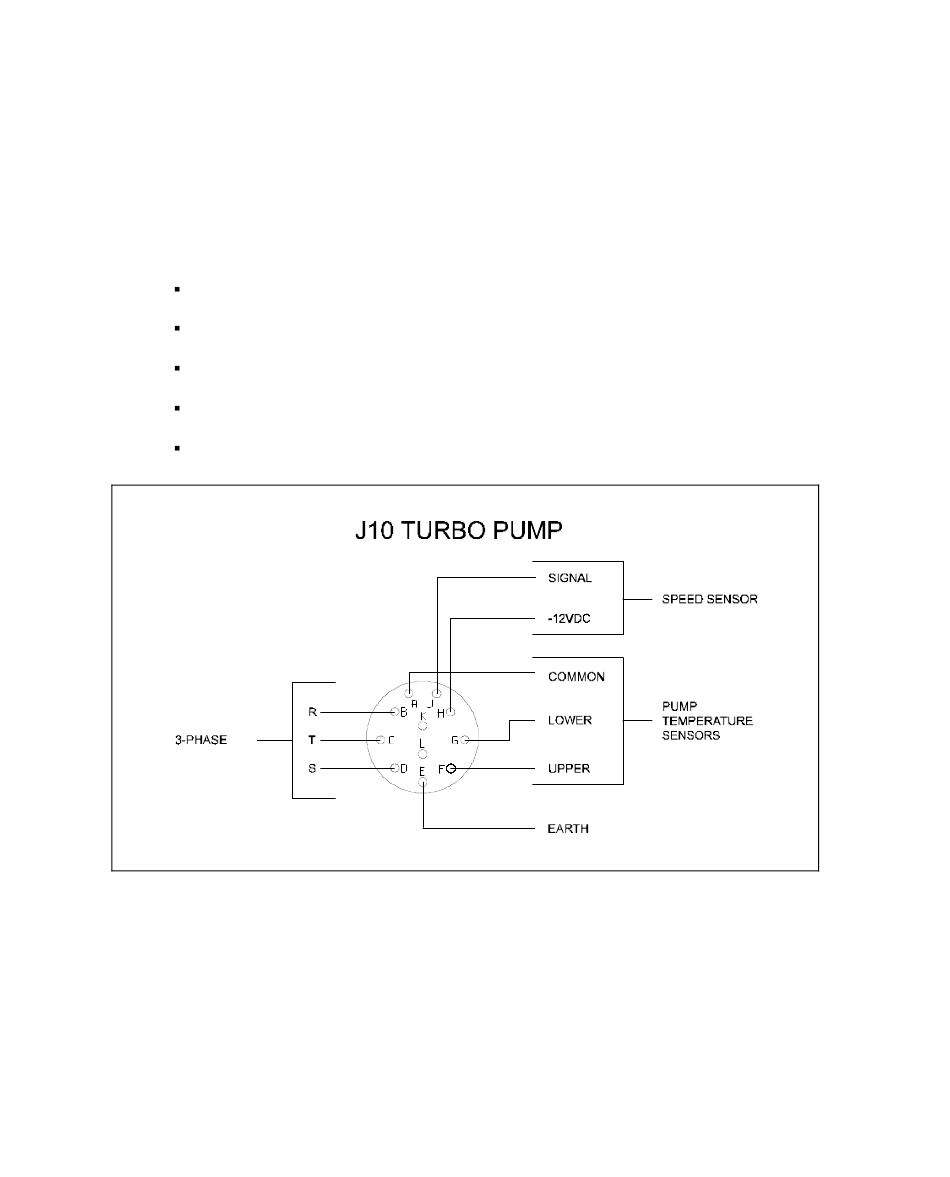

Figure 13
218/260
A-F = upper bearing sensor
B-C-D = 120 Vac 3-phase output to pump motor stator
E = ground
A-G = lower bearing sensor
J-H = speed sensor
Controller-to-pump connector (applicable to model 969-9448 and
969-9449)
