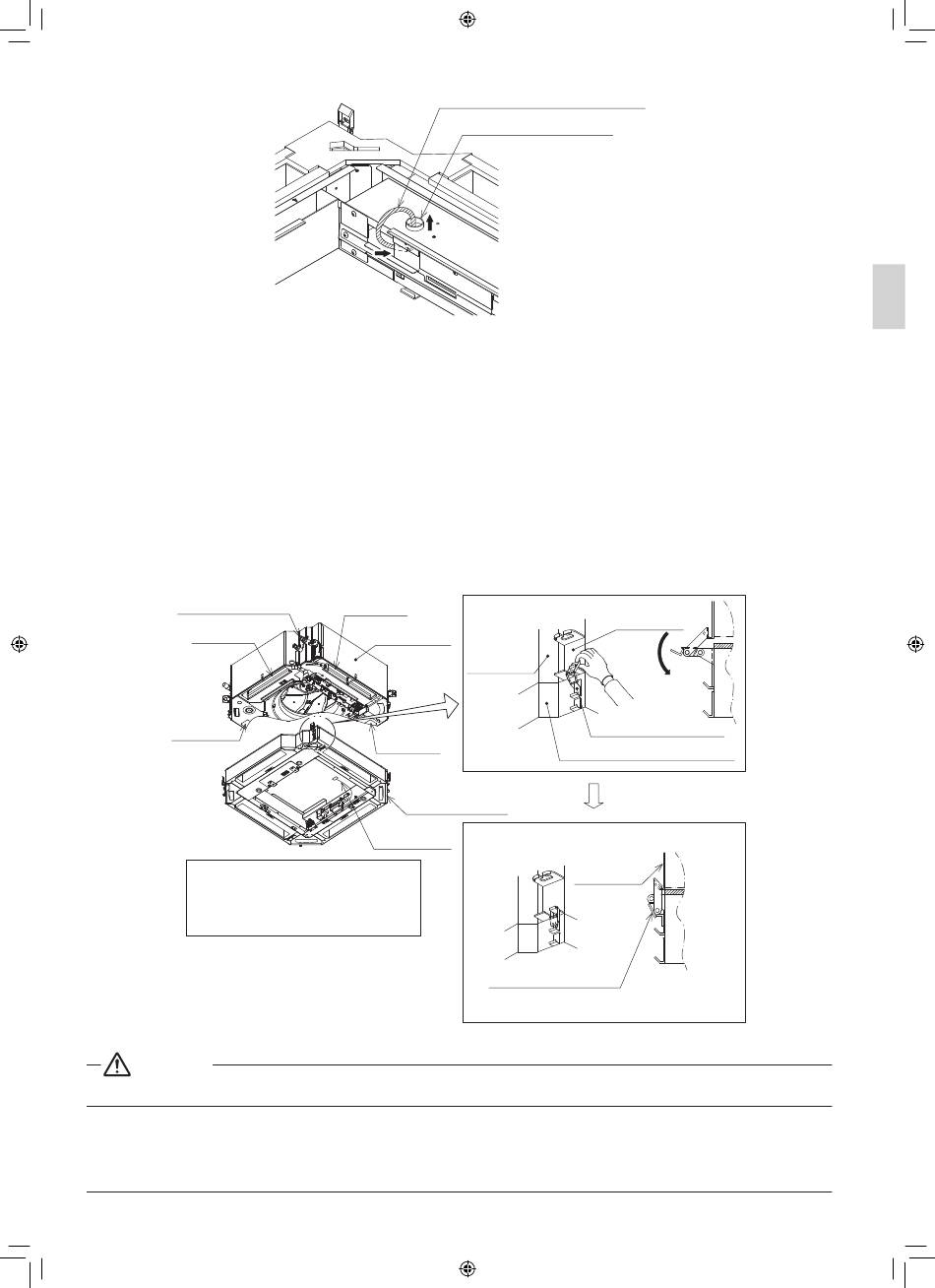

4. Mount the UV streamer air purifier unit to the indoor unit by using the unit-latching hooks (4 locations).
(Refer to Figure 10.)
• When mounting, be careful not to catch the wiring between the indoor unit and the UV streamer air
purifier unit.
• The work must always be carried out by 2 or more people.
(1) Remove the tape from the unit-latching hooks (4 locations). (Refer to Figure 10.)
(2) Hook the unit-latching hooks of the UV streamer air purifier unit to the lifting lugs of the indoor unit.
(Refer to Figure 12.)
(3) Place the UV streamer air purifier unit and the indoor unit close together and pull down the latches
of the unit-latching hooks to lock. (Refer to Figure 13.)
Fasten the latches securely to prevent the unit-latching hooks from unlocking.
Refrigerant pipe
Air outlet
Air outlet
When mounting, be careful not
to catch the power supply wires,
earth wire, and signal wire
between the units.
CAUTION
When installing or removing 4 corner hooks beware of falling.
English
01_EN_3P701968-3.indd 10 01_EN_3P701968-3.indd 10
Power supply and earth wires
Figure 9
Air outlet
Indoor unit
Air outlet
UV streamer
air purifier unit
Signal wire
Figure 10
Wiring through-hole 1
<Before Mounting>
Lifting lug
Indoor unit
Unit-Latching hook
UV streamer air purifier unit
Figure 12
<After Mounting>
Lifting lug
Unit-Latching hook
Figure 13
