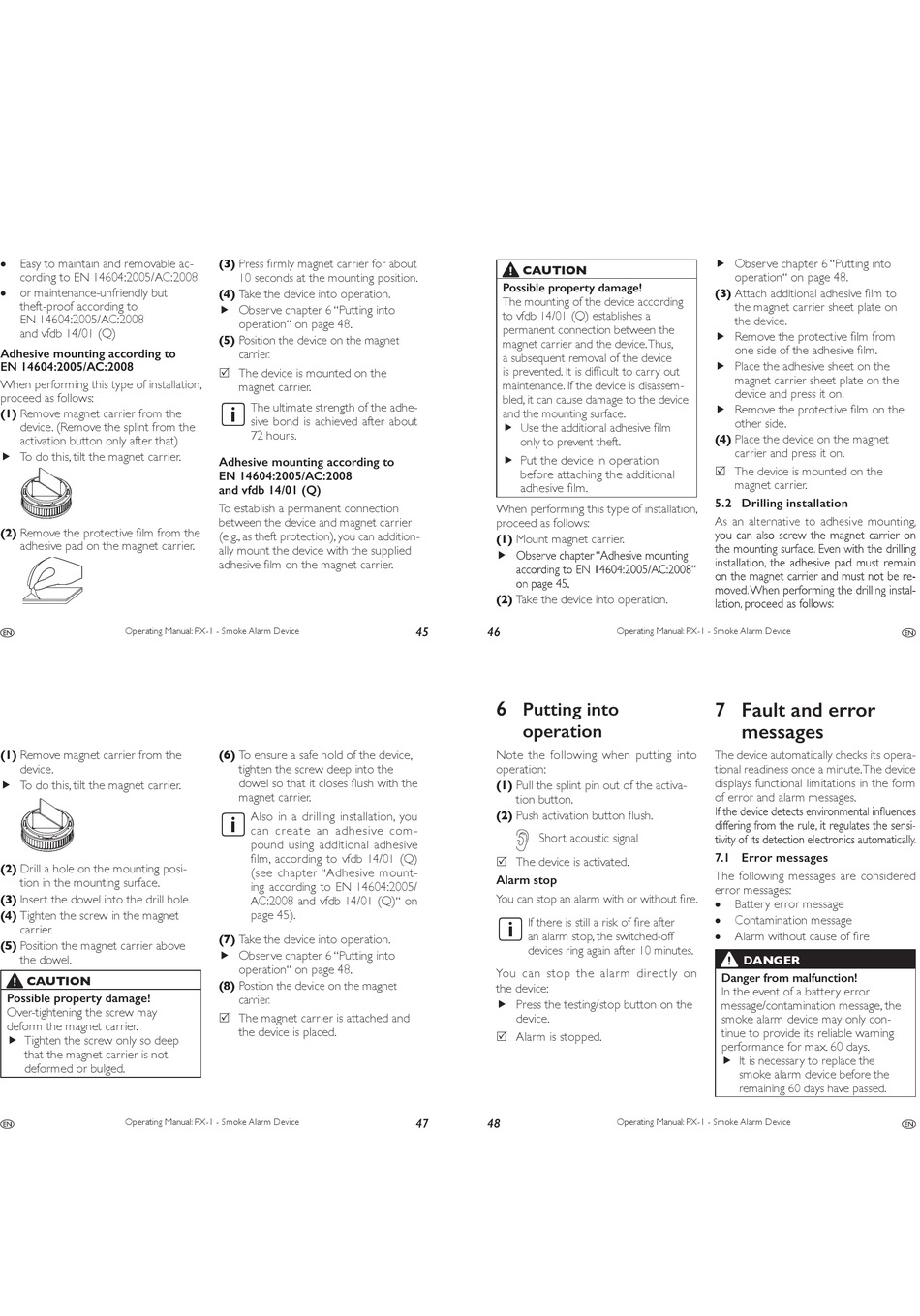

Easy to maintain and removable ac-
cording to EN 14604:2005/AC:2008
•
or maintenance-unfriendly but
theft-proof according to
EN 14604:2005/AC:2008
and vfdb 14/01 (Q)
Adhesive mounting according to
EN 14604:2005/AC:2008
When performing this type of installation,
proceed as follows:
(1) Remove magnet carrier from the
device. (Remove the splint from the
activation button only after that)
f To do this, tilt the magnet carrier.
(2) Remove the protective lm from the
adhesive pad on the magnet carrier.
Operating Manual: PX-1 - Smoke Alarm Device
(1) Remove magnet carrier from the
device.
f To do this, tilt the magnet carrier.
(2) Drill a hole on the mounting posi-
tion in the mounting surface.
(3) Insert the dowel into the drill hole.
(4) Tighten the screw in the magnet
carrier.
(5) Position the magnet carrier above
the dowel.
CAUTION
Possible property damage!
Over-tightening the screw may
deform the magnet carrier.
f Tighten the screw only so deep
that the magnet carrier is not
deformed or bulged.
Operating Manual: PX-1 - Smoke Alarm Device
(3) Press rmly magnet carrier for about
10 seconds at the mounting position.
(4) Take the device into operation.
f Observe chapter 6 "Putting into
operation" on page 48.
(5) Position the device on the magnet
carrier.
5 The device is mounted on the
magnet carrier.
The ultimate strength of the adhe-
sive bond is achieved after about
72 hours.
Adhesive mounting according to
EN 14604:2005/AC:2008
and vfdb 14/01 (Q)
To establish a permanent connection
between the device and magnet carrier
(e.g., as theft protection), you can addition-
ally mount the device with the supplied
adhesive lm on the magnet carrier.
(6) To ensure a safe hold of the device,
tighten the screw deep into the
dowel so that it closes ush with the
magnet carrier.
Also in a drilling installation, you
can create an adhesive com-
pound using additional adhesive
lm, according to vfdb 14/01 (Q)
(see chapter "Adhesive mount-
ing according to EN 14604:2005/
AC:2008 and vfdb 14/01 (Q)" on
page 45).
(7) Take the device into operation.
f Observe chapter 6 "Putting into
operation" on page 48.
(8) Postion the device on the magnet
carrier.
5 The magnet carrier is attached and
the device is placed.
CAUTION
Possible property damage!
The mounting of the device according
to vfdb 14/01 (Q) establishes a
permanent connection between the
magnet carrier and the device. Thus,
a subsequent removal of the device
is prevented. It is dif cult to carry out
maintenance. If the device is disassem-
bled, it can cause damage to the device
and the mounting surface.
f Use the additional adhesive lm
only to prevent theft.
f Put the device in operation
before attaching the additional
adhesive lm.
When performing this type of installation,
proceed as follows:
(1) Mount magnet carrier.
(2) Take the device into operation.
45
46
6
Putting into
operation
Note the following when putting into
operation:
(1) Pull the splint pin out of the activa-
tion button.
(2) Push activation button ush.
Short acoustic signal
5 The device is activated.
Alarm stop
You can stop an alarm with or without re.
If there is still a risk of re after
an alarm stop, the switched-off
devices ring again after 10 minutes.
You can stop the alarm directly on
the device:
f Press the testing/stop button on the
device.
5 Alarm is stopped.
47
48
f Observe chapter 6 "Putting into
operation" on page 48.
(3) Attach additional adhesive lm to
the magnet carrier sheet plate on
the device.
f Remove the protective lm from
one side of the adhesive lm.
f Place the adhesive sheet on the
magnet carrier sheet plate on the
device and press it on.
f Remove the protective lm on the
other side.
(4) Place the device on the magnet
carrier and press it on.
5 The device is mounted on the
magnet carrier.
5.2 Drilling installation
As an alternative to adhesive mounting,
Operating Manual: PX-1 - Smoke Alarm Device
7 Fault and error
messages
The device automatically checks its opera-
tional readiness once a minute. The device
displays functional limitations in the form
of error and alarm messages.
7.1 Error messages
The following messages are considered
error messages:
•
Battery error message
•
Contamination message
•
Alarm without cause of re
DANGER
Danger from malfunction!
In the event of a battery error
message/contamination message, the
smoke alarm device may only con-
tinue to provide its reliable warning
performance for max. 60 days.
f It is necessary to replace the
s moke alarm device before the
remaining 60 days have passed.
Operating Manual: PX-1 - Smoke Alarm Device
