3 Overview
3.1 Function
The basic functions of the device are:
•
Smoke detection
•
Heat warning function
3.2 Controls

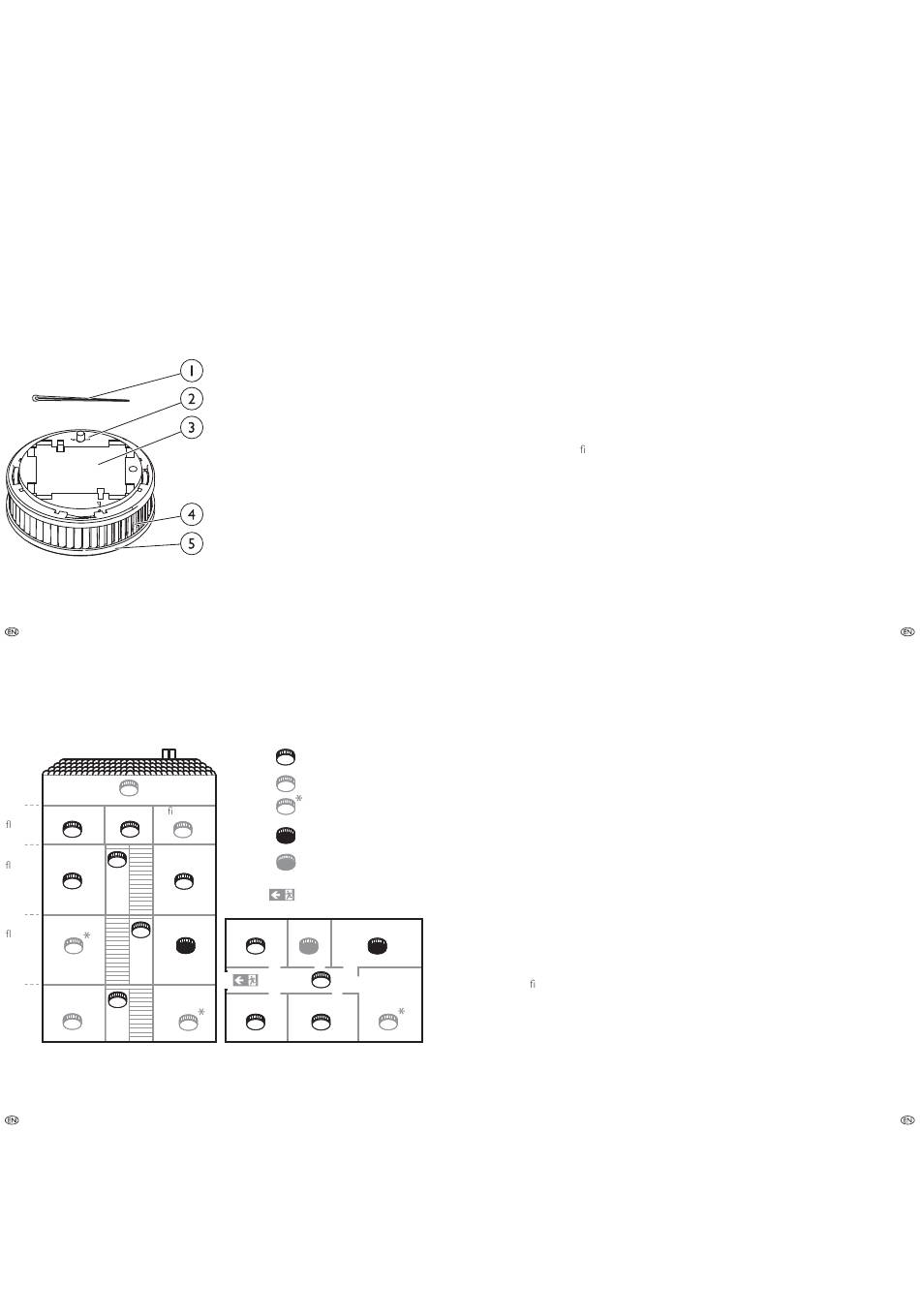

Fig. 8 Controls
Operating Manual: PX-1 - Smoke Alarm Device

4 Location selection

Attic
Top Guest room Of ce
oor
Upper Bedroom Children´s
oor bedroom
Living room Kitchen
Ground
oor
Cellar
Heating Workroom
Fig. 9 Location selection
Operating Manual: PX-1 - Smoke Alarm Device
1 Splint pin (activation backup)
2 Activation button
3 Magnet carrier
4 Smoke intake lamellas
5 Testing/stop button
(smoke alarm device cover)
Minimum equipment
Optimal equipment
Required by law in Berlin
and Brandenburg
All rights reserved
Do not install due to steam
Escape route
Kitchen
Bedroom Bath-
room
Corridor Living room
Children´s
Children´s
Bedroom
Bedroom
Splint pin (activation backup)
The splint pin (activation backup) is used
during the transport of the device to pro-
tect against accidental activation.
Activation button
The activation button is used to turn the
device on and off.
Magnet carrier
The magnet carrier is used for fastening
the device.
Smoke intake lamellas
Smoke from the re reaches the inside
of the device through the smoke intake
lamellas and can then be detected by
sensors.
37 38
The use of smoke alarm devices is gov-
erned by DIN 14676.
Minimum equipment
•
Bedrooms
•
Children's bedroom
•
Guest room
•
Hallways and all other rooms
which serve as an escape route
•
Stairwells of family houses
Optimal equipment
•
All living and hobby rooms
(except in Berlin and Branden-
burg - here such equipment
is also required by law)
•
Heating and work spaces
•
Of ce or workroom
•
Cellar
•
Attic
Conditional equipment
•
In kitchens, smoke alarm devices must
only be installed when false alarms
(e.g., caused by steam) are excluded
39 40
Testing/stop button
(smoke alarm device cover)
The testing/stop button (smoke alarm
device cover) is used for a self-test.
The testing/stop button (smoke alarm de-
vice cover) can be actuated to interrupt
or stop alarm and alert tones.
Operating Manual: PX-1 - Smoke Alarm Device
Not recommended
•
Bathrooms are excluded from the in-
stallation of smoke alarm devices due
to the high development of steam.
4.1 Area to be monitored
Use a device if at least one of the follow-
ing applies:
•
Monitoring area less than 60 m
and ceiling height of less than 6 m
•
Ceiling panels (height lower than
20 cm) with joists (ceiling surface
less than 36 m
Use additional equipment if at least one
of the following applies:
•
Monitoring area greater than 60 m
•
Ceiling height greater than 6 m
•
High partial walls
•
Separating pieces of furniture
Operating Manual: PX-1 - Smoke Alarm Device
,
