6.1 Commissioning the integrated automatic start/stop mechanism

The integrated automatic start/stop mechanism enables the device to be switched on and off automatically.
Once the welding process begins or ends, the device receives a signal and automatically starts or stops the
fume extraction process. The run-on time equals approx. 20 seconds. The mechanism can be activated and
deactivated on the control panel using the <A/Auto> button.

6.2 Mounting the current clamp (optional)

If required by the welding conditions, a current clamp may also be used instead of the integrated start/stop
automatic mechanism. This makes it possible to operate the device in automatic mode. The current clamp is
connected to the device by the 4-pole plug and the earth cable or cable assembly is laid in it. Once the
welding process begins or ends, the device receives a signal and automatically starts or stops the fume
extraction process. The mechanism can be activated and deactivated on the control panel.

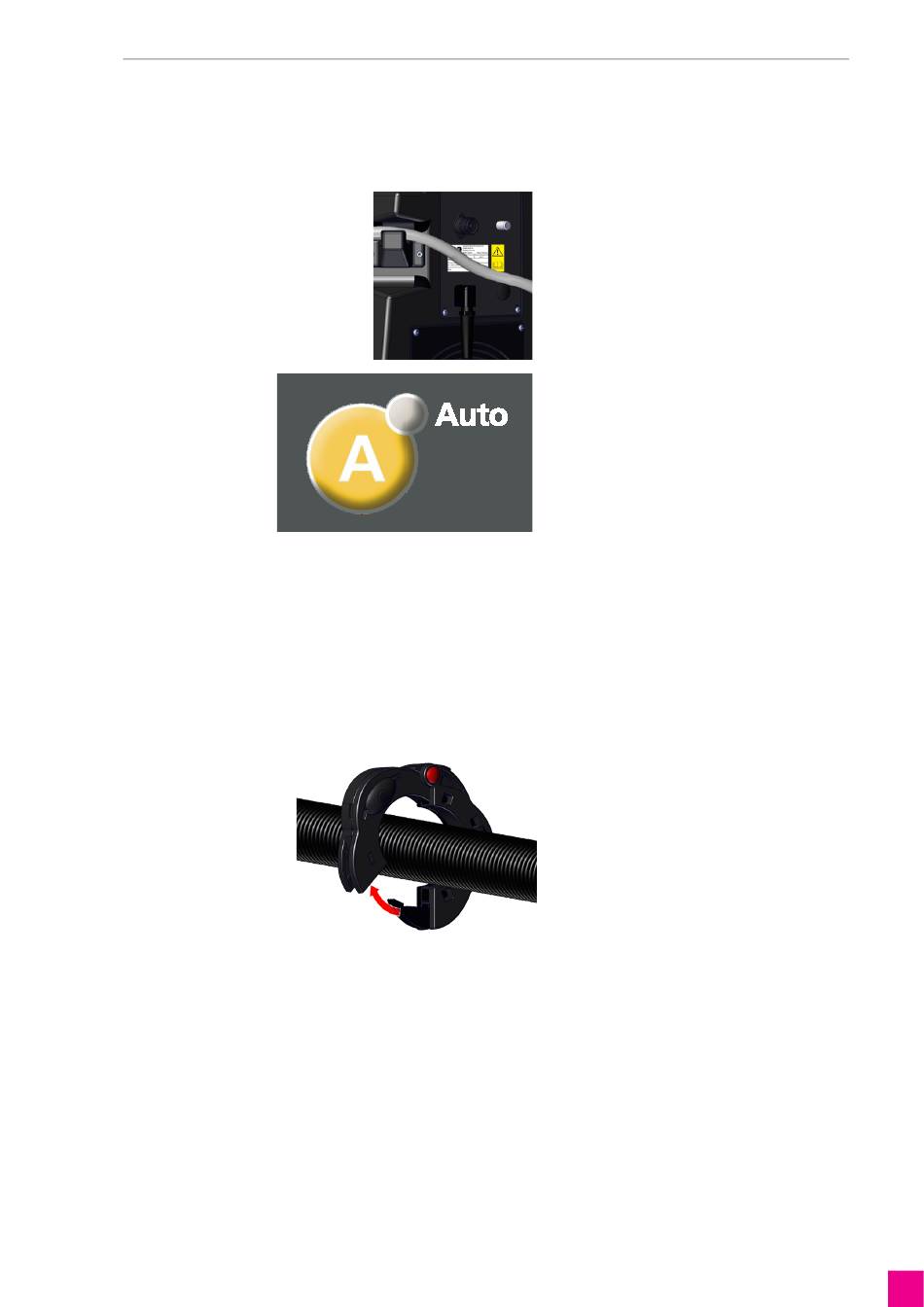

Lay the earth cable in the integrated automatic start/
1
stop mechanism.
Connect the earth cable on one end to the power
2
source and on the other end to the welding table, for
example.
To switch on the integrated start/stop mechanism,
3
press the <A/Auto> button.
The <A/Auto> LED illuminates.
Connect the current clamp cable to the current clamp
1
port.
Lay the current clamp over the earth cable or cable
2
assembly and ensure that the red point on the current
clamp always points in the direction of the current
flow.
Press the <A/Auto> button on the control panel.
3
