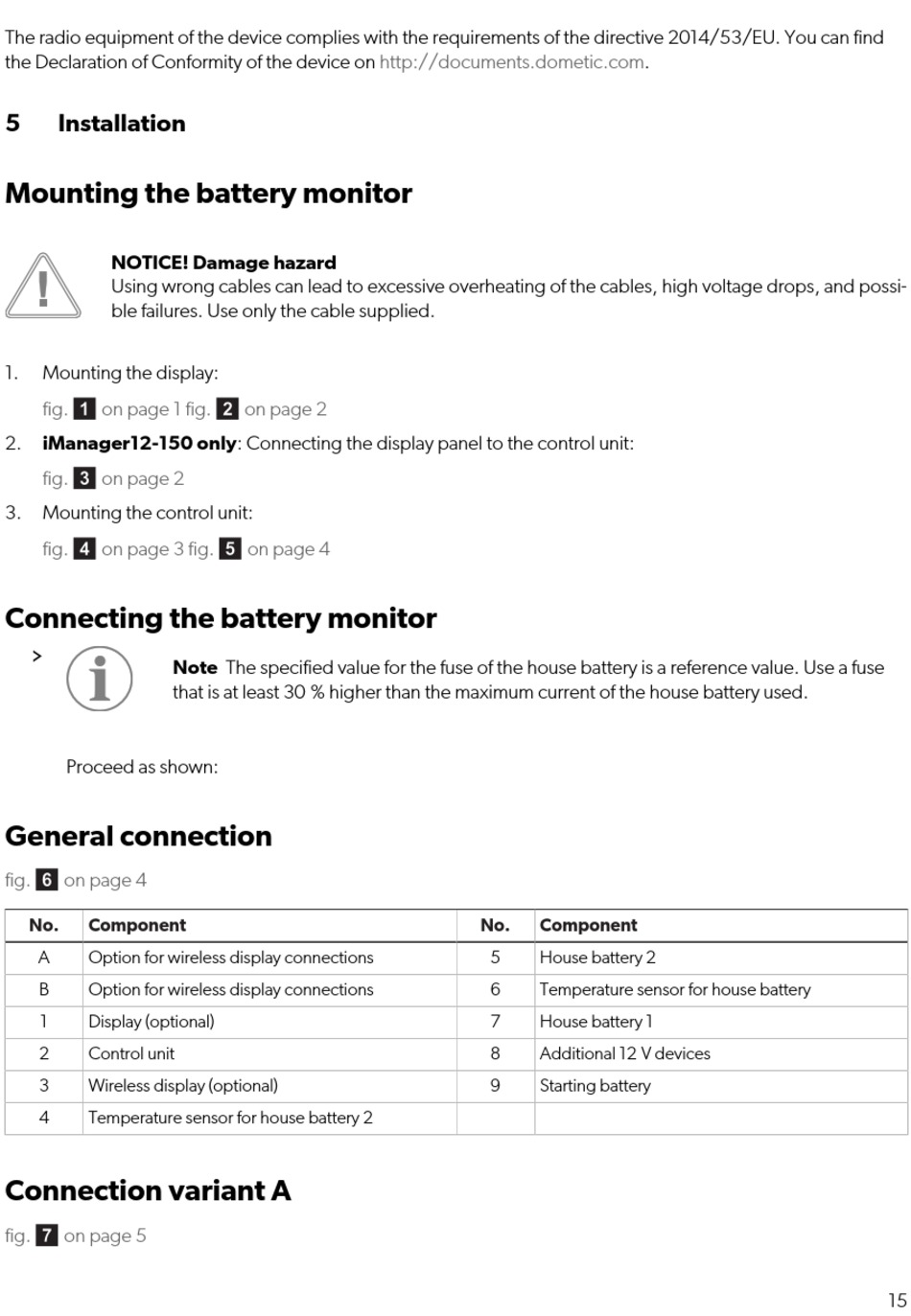

The radio equipment of the device complies with the requirements of the directive 2014/53/EU. You can find
the Declaration of Conformity of the device on http://documents.dometic.com.
5 Installation
Mounting the battery monitor
NOTICE! Damage hazard
Using wrong cables can lead to excessive overheating of the cables, high voltage drops, and possi-
ble failures. Use only the cable supplied.
1. Mounting the display:
fig.  on page 1
2. iManager12-150 only: Connecting the display panel to the control unit:
fig.  on page 2
3. Mounting the control unit:
fig.  on page 3
Connecting the battery monitor
Note The specified value for the fuse of the house battery is a reference value. Use a fuse
that is at least 30 % higher than the maximum current of the house battery used.
Proceed as shown:
General connection
fig.  on page 4
No. Component
A Option for wireless display connections
B Option for wireless display connections
1 Display (optional)
2 Control unit
3 Wireless display (optional)
4 Temperature sensor for house battery 2
Connection variant A
fig.  on page 5
fig.  on page 2
fig.  on page 4
No. Component
5 House battery 2
6 Temperature sensor for house battery
7 House battery 1
8 Additional 12 V devices
9 Starting battery
