MasterCool ULTIMA ID PRO Betriebshandbuch Seite 5

12VDC, 2.0A, which powers the device. This AC Power Adapter will also charge the battery when connected to the analyzer.
NOTE: Use of any other power source may cause damage to the unit and void the warranty

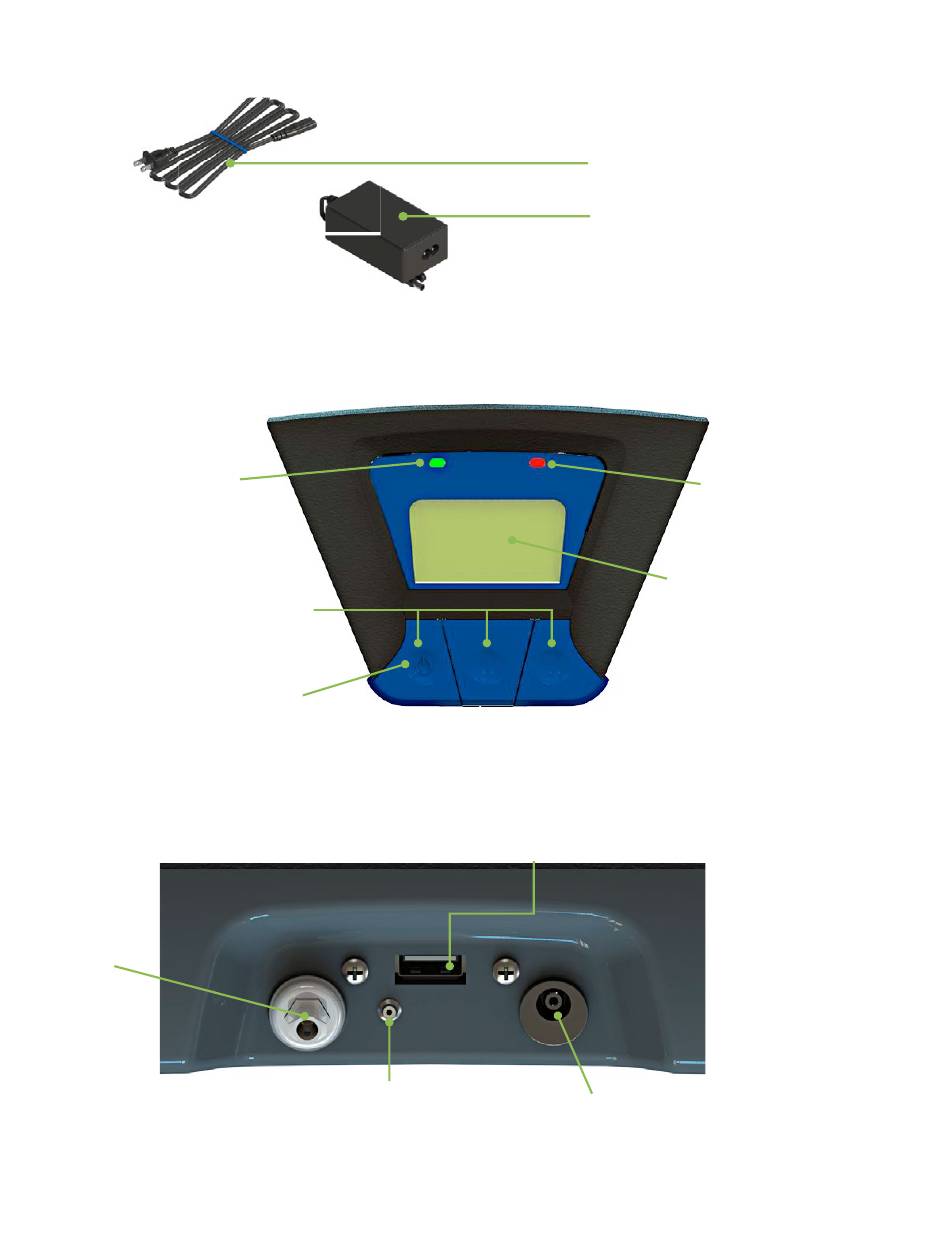

Control Panel
The Control Panel serves as the main user interface. The Control Panel features three soft key buttons that change their func-
tion as the instrument changes modes. The current function for each button is displayed above the Soft Key Buttons on the LCD
graphic display. Red and Green LED's at the top of the Control Panel are used for visual status indications.
Green LED
Soft Keys Buttons
Back Panel Connections
The connections located on the back panel are illustrated below.
CAUTION: The sample outlet port should never be obstructed. Keep the sample outlet port free and clear at all times. Do not
operate near open flame.
Sample Inlet
Power On/Off
Sample Outlet
USB Port
12DC Outlet Input
(AC Adapter)
www.mastercool.com
.
A/C Power Cord
A/C Power Converter
Red LED
Graphic Display
5
