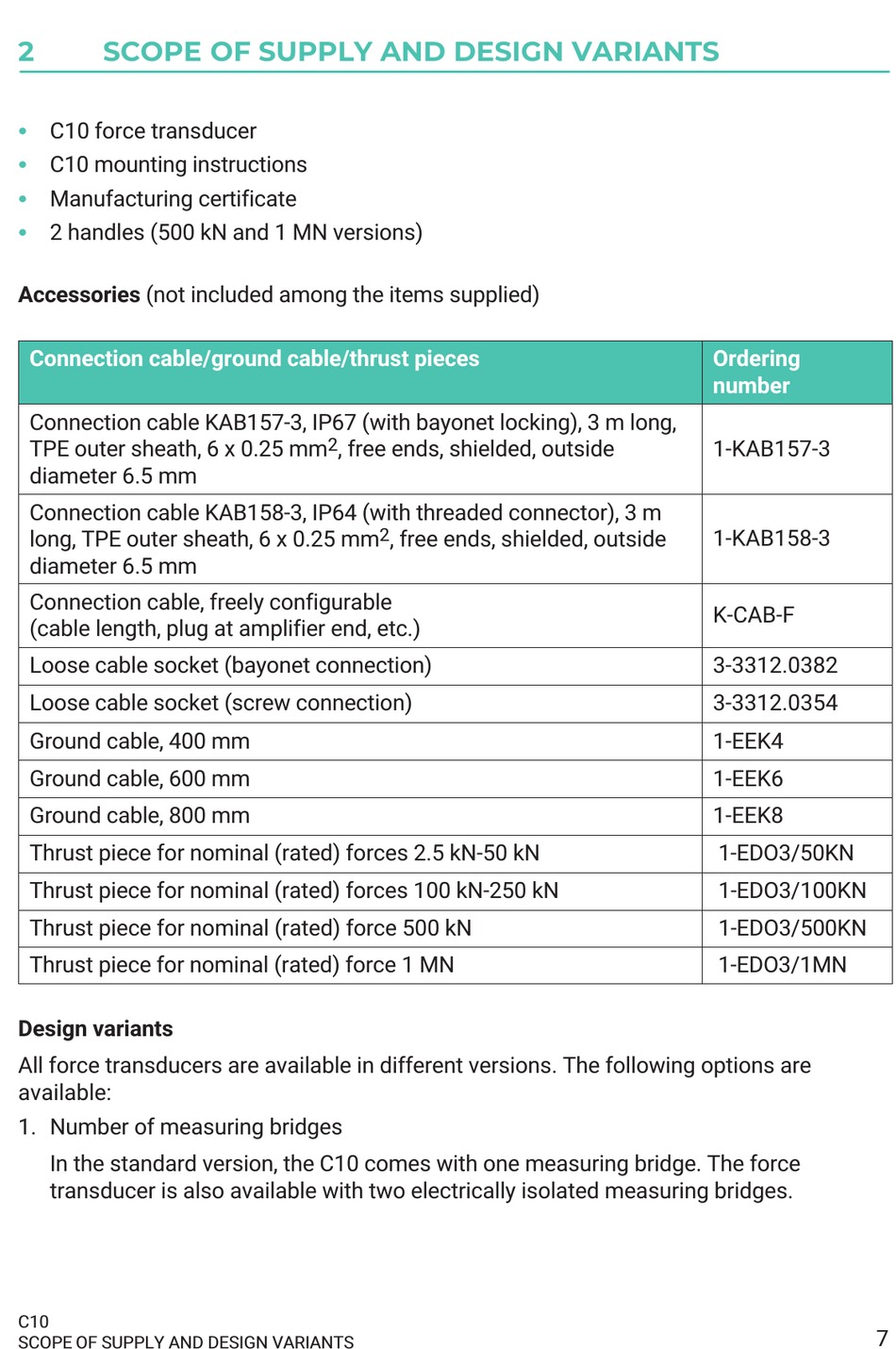

SCOPE OF SUPPLY AND DESIGN VARIANTS

S
C10 force transducer
S
C10 mounting instructions
S
Manufacturing certificate
S
2 handles (500 kN and 1 MN versions)
Accessories (not included among the items supplied)
Connection cable/ground cable/thrust pieces
Connection cable KAB157­3, IP67 (with bayonet locking), 3 m long,
TPE outer sheath, 6 x 0.25 mm
diameter 6.5 mm
Connection cable KAB158­3, IP64 (with threaded connector), 3 m
long, TPE outer sheath, 6 x 0.25 mm
diameter 6.5 mm
Connection cable, freely configurable
(cable length, plug at amplifier end, etc.)
Loose cable socket (bayonet connection)
Loose cable socket (screw connection)
Ground cable, 400 mm
Ground cable, 600 mm
Ground cable, 800 mm
Thrust piece for nominal (rated) forces 2.5 kN­50 kN
Thrust piece for nominal (rated) forces 100 kN­250 kN
Thrust piece for nominal (rated) force 500 kN
Thrust piece for nominal (rated) force 1 MN
Design variants
All force transducers are available in different versions. The following options are
available:
1. Number of measuring bridges
In the standard version, the C10 comes with one measuring bridge. The force
transducer is also available with two electrically isolated measuring bridges.
C10
SCOPE OF SUPPLY AND DESIGN VARIANTS
2
, free ends, shielded, outside
2
, free ends, shielded, outside
Ordering
number
1­KAB157­3
1­KAB158­3
K­CAB­F
3­3312.0382
3­3312.0354
1­EEK4
1­EEK6
1­EEK8
1­EDO3/50KN
1­EDO3/100KN
1­EDO3/500KN
1­EDO3/1MN
