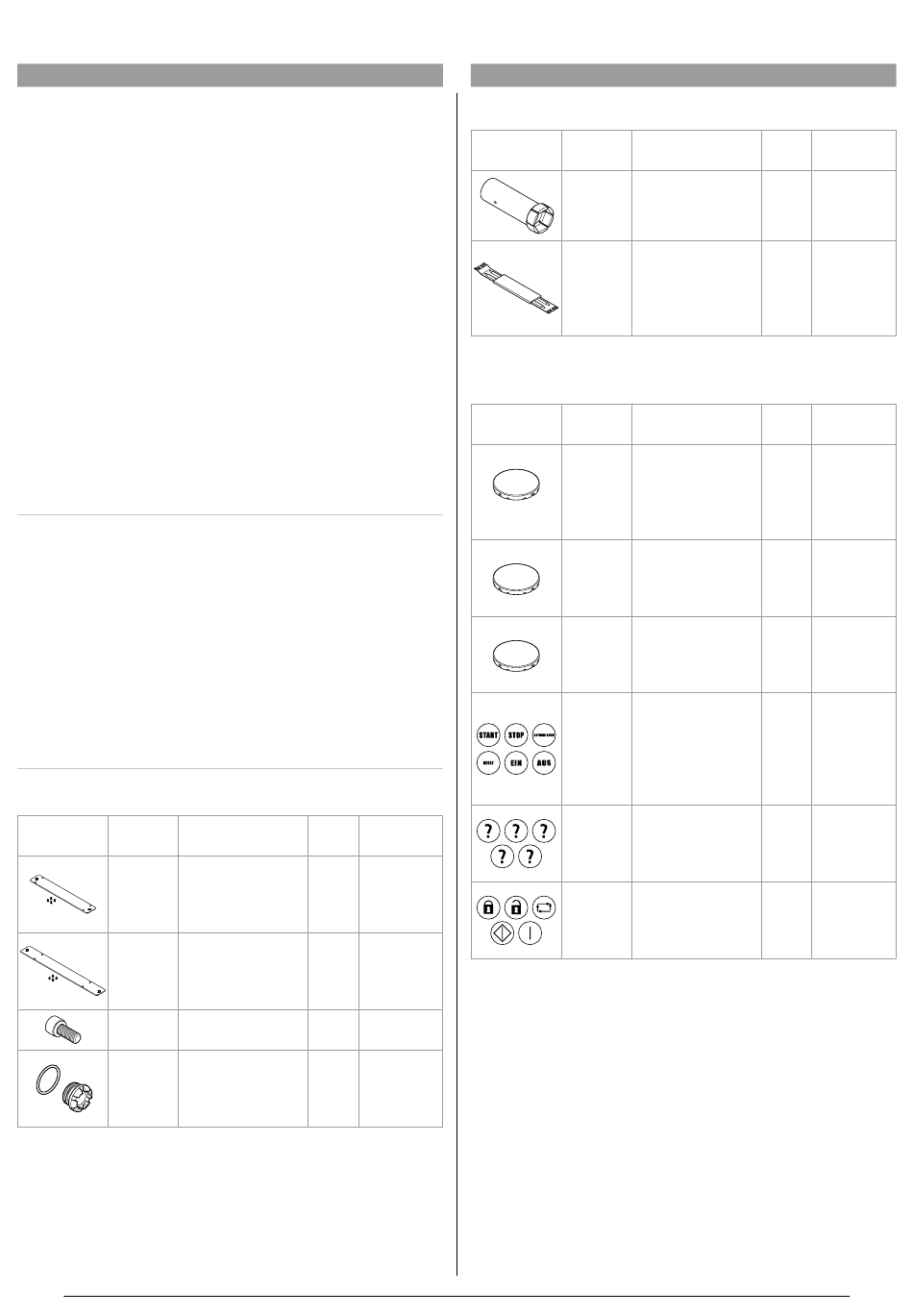

5 .12 Regular technical inspection

The inspection interval shall be determined by the machine designer on the basis of the risk
assessment. However, it is recommended that the emergency stop button is triggered at least
once a year by the responsible safety officer for test purposes and to check the correct function:
- Mechanical and electrical function test in accordance with Para. 5.11
- Safe attachment
- No manipulation and damage are visible
- No loose wire connections

5 .2 Maintenance

Maintenance work is generally not required.
However, regular checks of the electrical and mechanical functions by appropriately trained
and competent personnel are required to ensure proper and lasting function.
Remove contamination on a regular basis. Do not use any abrasive cleaning agents, only
use a moist cloth.
Check the condition and tight fit of all installed switches, buttons and display elements at
regular intervals. In case of malfunction or damage, the corresponding components must
be replaced.
According to the intensity of use, the components must be replaced.
Repairs must only be carried out by the manufacturer.

6 . Decommissioning, Disassembly and Disposal

6 .1 Decommissioning

Disconnect the Simplifier BOX from the power supply and disconnect all plug or cable
connections.

6 .2 Disassembly

Disassemble the Simplifier BOX only when it is de-energized.

6 .3 Disposal

Dispose of the Simplifier BOX properly in accordance with national or regional regulations
and laws.

7 . Equipment

7 .1 Mounting equipment

Figure C o m p o - Design
nent
Installation - Aluminum
plate small - 253 x 40 x 5.5 mm
- incl. 4 M3 fastening
screws for housing
Installation - Aluminum
plate large - 338 x 40 x 5.5 mm
- incl. 4 M3 fastening
bolt for housing
Screw - M5 fastening bolt
with sealing - O-ring included
Housing - Thread M16
fastening - O-ring included
bolt with
O-ring
EN

7 .2 Special tools

Figure

7 .3 Equipment for configuration elements

Figure
Item Item
code number
ZMS SP-N-88-850-01
ZMB SP-N-88-850-02
ZSD SP-N-88-001-89
ZHS SP-N-88-001-91
Simplifier BOX 253
C o m p o - Usage
nent
Mounting For screwing in
wrench buttons and indicator lights
Button/ To replace the
light button/light caps on
caps buttons and indicator lights
Lift-off-
tool
C o m p o - Design
nent
Button caps - 6 items kit
Kit - for non-illuminated
buttons
- Colors red, yellow, green,
blue, white and black
Button caps - 5 items kit
Kit - for illuminated buttons
- Colors red, yellow, green,
blue and white
light - 5 items kit
caps kit - for indicator lights
- Colors red, yellow, green,
blue and white
Denomination - 6 items kit
signs kit - for buttons and indicator
lights
- Labeling START, STOP,
REQUEST, RESET,
ON and OFF
Denomination - 5 items kit
signs kit - for buttons and indicator
lights
- individually printed
Denomination - 5 items kit
signs kit - for buttons and indicator
lights
- printed with pictograms
Item Item
code number
ZMT SP-X-88-001-25
ZUK SP-X-88-001-26
Item Item
code number
ZTK6 SP-X-88-001-18
ZTK5 SP-X-88-001-19
ZLK5 SP-X-88-001-20
ZB1 SP-X-88-001-21
ZB2 SP-X-88-001-22
ZB3 SP-X-88-001-23
35
