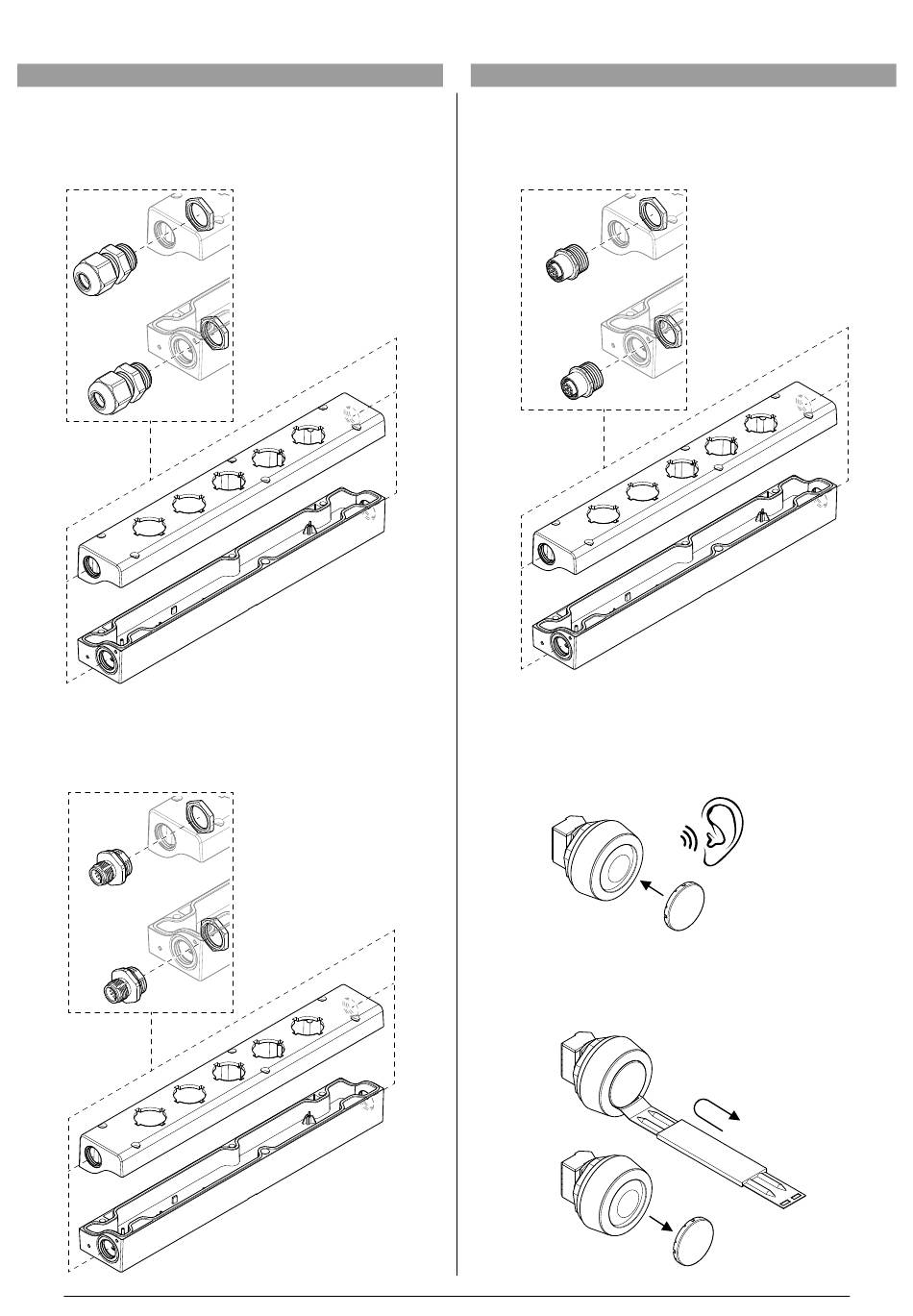

3 .5 Install the cable connection
1 .) Position the cable connection in the threaded opening and tighten it.
2 .) Tighten with an open-end wrench (size 19 mm).
3 .) Attach the lock nut and tighten it with an open-end wrench (size 18 mm).
3 .51 Install the male connector M12
1 .) Position the male connector in the threaded opening and tighten it.
2 .) Tighten with an open-end wrench (size 19 mm).
3 .) Attach the lock nut and tighten it with an open-end wrench (size 18 mm).
EN
Simplifier BOX 253
3 .52 Install the socket plug M12
1 .) Position the socket plug in the threaded opening and tighten it
2 .) Tighten with an open-end wrench (size 19 mm).
3 .) Attach the lock nut and tighten it with an open-end wrench (size 18 mm).
3 .6 Install/replace the button/light caps
3 .61 Install the button/light cap
1 .) Position the button/light cap centrally on the button or indicator light.
2 .) Press the button/light cap firmly until you can hear a "click" sound.
3 .62 Replace button/light cap
1 .) Slide the button/light cap lift-off tool between cap and housing.
2 .) Lift off the button/light cap and install the new button/light cap.
2
click
1
1
2
31
