Simplifier BOX 253

1 . Important notes concerning this operating manual

1 .1 Validity

This operating manual is valid for all individually configured Simplifier BOX modules that
are assembled and wired by the operator.

1 .2 Purpose of this document

This operating manual contains all information required for the installation, commissioning,
operation, maintenance and decommissioning of the product. You must read and understand
this operating manual before you put the Simplifier BOX into operation. Always keep this
operating manual accessible to all users throughout the entire service life of the product. This
operating manual must be updated with each amendment received from the manufacturer
and passed on to each subsequent owner and user of the product.

1 .3 Target group

The tasks described in this operating manual may only be carried out by corresponding
trained skilled personnel authorized by the plant owner.

1 .4 General regulations

Familiarize yourself with the applicable regulations and rules regarding occupational safety
and accident prevention. For installation, commissioning, safe operation, as well as for regular
technical inspections, the (inter)national legal regulations apply.
In particular:
- the Machinery Directive 2006/42/EC
- the Low Voltage Directive 2006/95/EG
- the safety regulations and
- the accident prevention regulations and safety rules

1 .5 Symbols used

Warning!
If the warnings are not observed, faults or malfunctions may occur! Furthermore,
persons or machines may be damaged!
Note
Important additional information

1 .6 Safety Instructions

Observe the safety instructions in this operating manual as well as country-specific installation,
safety and accident prevention regulations.

1 .7 Liability Disclaimer

We accept no liability for damages or operational malfunctions resulting from improper
installation or failure to comply with this operating manual. No other liability is accepted
by the manufacturer for damages resulting from use of spare parts or accessories, which
have not been approved by the manufacturer. Any unauthorized repairs, reconstructions and
modifications are not permitted for safety reasons and rule out liability of the manufacturer
for resulting damages.

1 .8 Technical Information

For additional technical information refer to SSP data sheets or visit our website at
www. safety-products.de.
All information is supplied without liability. We reserve the right to make technical modifi-
cations for reasons of improvement.
20

2 . Product Description

2 .1 Intended use

The product may only be used in industrial applications. The product has been developed
to be a part of an overall system or machine for safety-related application in process and
automation technology. The manufacturer of the plant or machine is responsible for ensuring
the correct overall function of the system.
If additional devices are installed and used to implement a safety function, the operating
manuals for the corresponding devices must also be observed.

2 .2 Non-intended use

Danger to persons or damage to parts of machines or installations can arise as a result of
inappropriate/ incorrect use or manipulations. It is prohibited to use with Simplifier BOX
spare parts or accessories, which have not been expressly approved by the manufacturer.

2 .3 Residual hazards

If the safety notes and the instructions regarding installation, commissioning, operation,
maintenance and decommissioning are observed, there are no known residual hazards.

2 .4 Configuration variants

The Simplifier BOX is available in different, already pre-configured, assembled and tested
configuration variants. Furthermore, individual configuration variants can be created in the
online configurator at www.safety-products.de.
Please note that for the individual configuration variants, the wiring/cabling must in most
cases be carried out by the end user (in accordance with local guidelines and standards).
Please contact our customer service for questions and regarding possible special configurations.

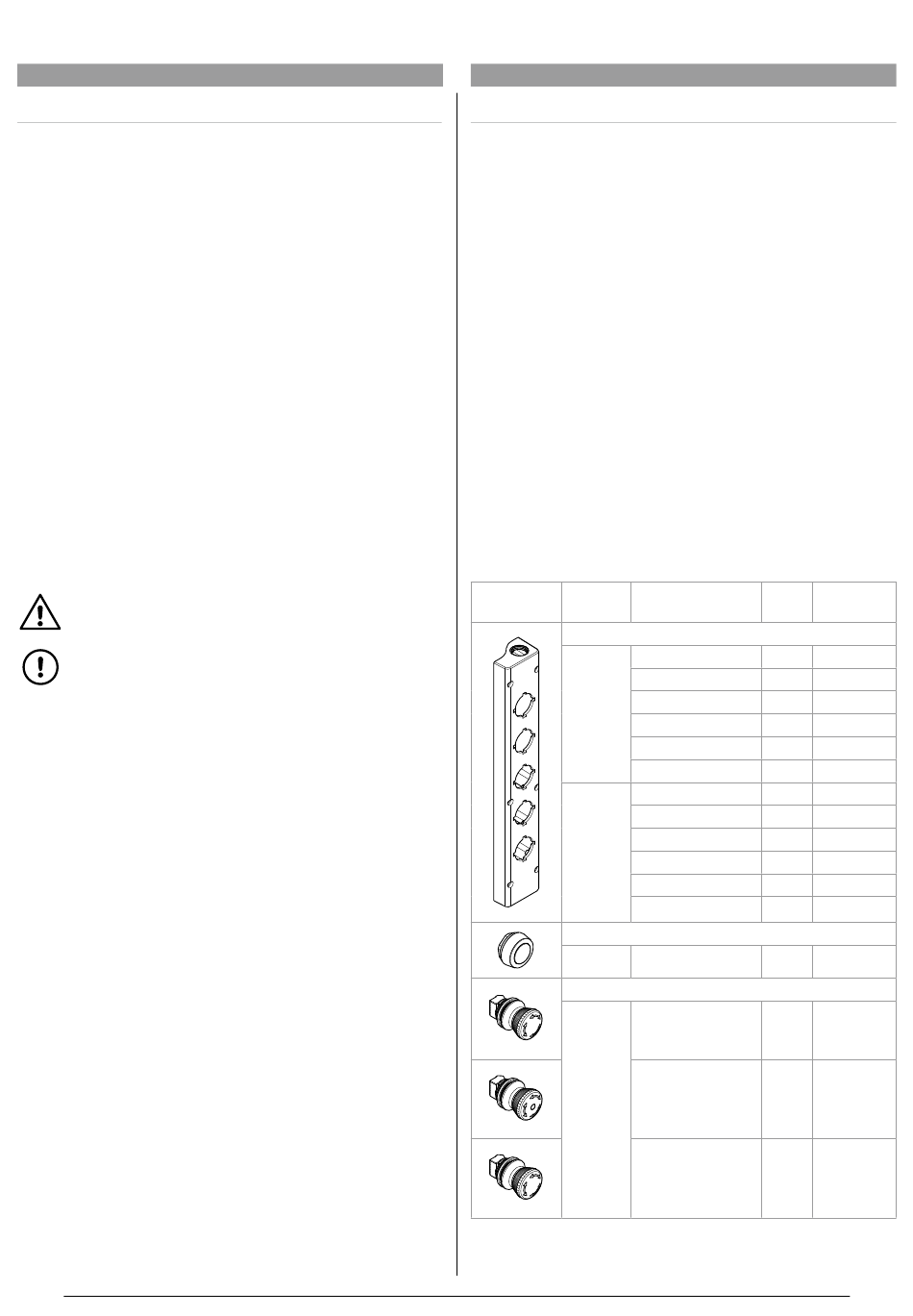

2 .5 Configuration elements

Figure Component Design
Housing top
Housing No button, yellow
top, yellow
1 button, yellow
2 buttons, yellow
3 buttons, yellow
4 button, yellow
5 buttons, yellow
Housing No button, gray
top, gray
1 button, gray
2 buttons, gray
3 buttons, gray
4 button, gray
5 buttons, gray
Blind cover
Blind cover Standard

Emergency stop buttons

Emergency - Standard
stop - Rotation unlocking
button - Safety contact 2x NC
- Illuminated
- Rotation unlocking
- Safety contact 2x NC
- Standard
- Rotation unlocking
- Safety contact 2x NC
- Information contact 1x NO
Item Item
code number
HD0 SP-N-88-000-95
HD1 SP-N-88-000-96
HD2 SP-N-88-000-97
HD3 SP-N-88-000-98
HD4 SP-N-88-001-01
HD5 SP-N-88-001-02
HG0 SP-N-88-001-11
HG1 SP-N-88-001-12
HG2 SP-N-88-001-13
HG3 SP-N-88-001-14
HG4 SP-N-88-001-15
HG5 SP-N-88-001-16
BD SP-X-88-001-17
EA SP-X-88-000-53
EB SP-X-88-000-54
EC SP-X-88-000-55
EN
