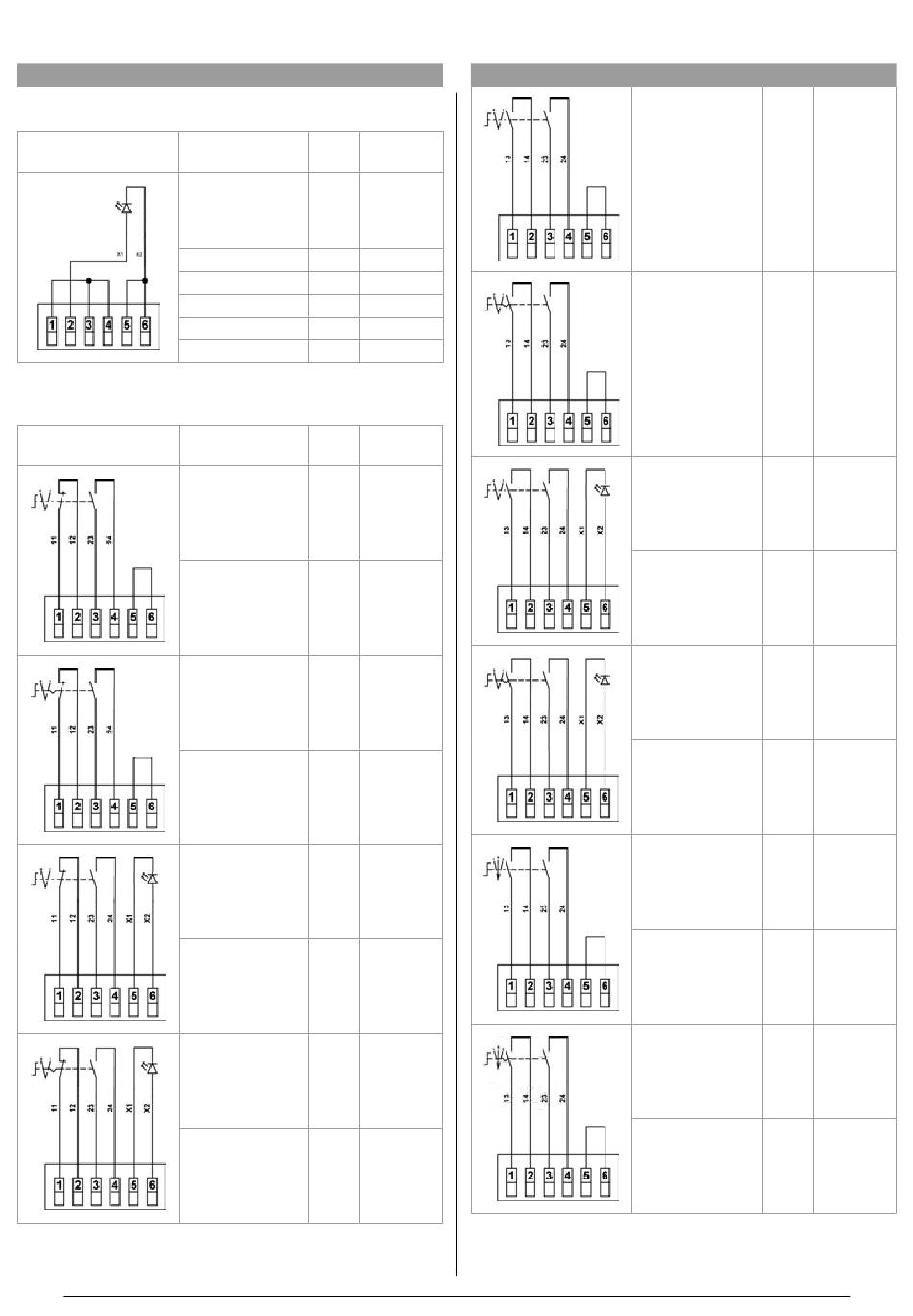

4 .33 Connection assignment of the indicator lights

Connection assignment Design
LED, with 5 enclosed light
caps in the colors red,
yellow, green,blue and
white
LED red
LED yellow
LED green
LED blue
LED white

4 .34 Connection assignment of the selector switches

Connection assignment Design
- 2 positions
- not illuminated
- momentary
- Contact 1x NC and 1x NO
- without labeling
- 2 positions
- not illuminated
- momentary
- Contact 1x NC and 1x NO
- individual labeling
- 2 positions
- not illuminated
- toggle
- Contact 1x NC and 1x NO
- without labeling
- 2 positions
- not illuminated
- toggle
- Contact 1x NC and 1x NO
- individual labeling
- 2 positions
- illuminated
- momentary
- Contact 1x NC and 1x NO
- without labeling
- 2 positions
- illuminated
- momentary
- Contact 1x NC and 1x NO
- individual labeling
- 2 positions
- illuminated
- toggle
- Contact 1x NC and 1x NO
- without labeling
- 2 positions
- illuminated
- toggle
- Contact 1x NC and 1x NO
- individual labeling
EN
Item Item
code number
L1 SP-X-88-000-17
L2 SP-X-88-000-18
L3 SP-X-88-000-19
L4 SP-X-88-000-20
L5 SP-X-88-000-21
L6 SP-X-88-000-22
Item Item
code number
SA SP-X-88-000-62
SQ SP-X-88-000-78
SW SP-X-88-000-63
SR SP-X-88-000-79
SC SP-X-88-000-64
SP SP-X-88-000-72
SD SP-X-88-000-65
SK SP-X-88-000-73
Simplifier BOX 253
- 2 positions SI
- not illuminated
- momentary
- Contact 2x NO
- individual labeling
- 2 positions SJ
- not illuminated
- toggle
- Contact 2x NO
- individual labeling
- 2 positions SS
- illuminated
- momentary
- Contact 2x NO
- without labeling
- 2 positions SU
- illuminated
- momentary
- Contact 2x NO
- individual labeling
- 2 positions ST
- illuminated
- toggle
- Contact 2x NO
- without labeling
- 2 positions SV
- illuminated
- toggle
- Contact 2x NO
- individual labeling
- 3 positions SE
- not illuminated
- momentary
- Contact 2x NO
- without labeling
- 3 positions SL
- not illuminated
- momentary
- Contact 2x NO
- individual labeling
- 3 positions SF
- not illuminated
- toggle
- Contact 2x NO
- without labeling
- 3 positions SM
- not illuminated
- toggle
- Contact 2x NO
- individual labeling
SP-X-88-000-70
SP-X-88-000-71
SP-X-88-000-80
SP-X-88-000-82
SP-X-88-000-81
SP-X-88-000-83
SP-X-88-000-66
SP-X-88-000-74
SP-X-88-000-67
SP-X-88-000-75
33
