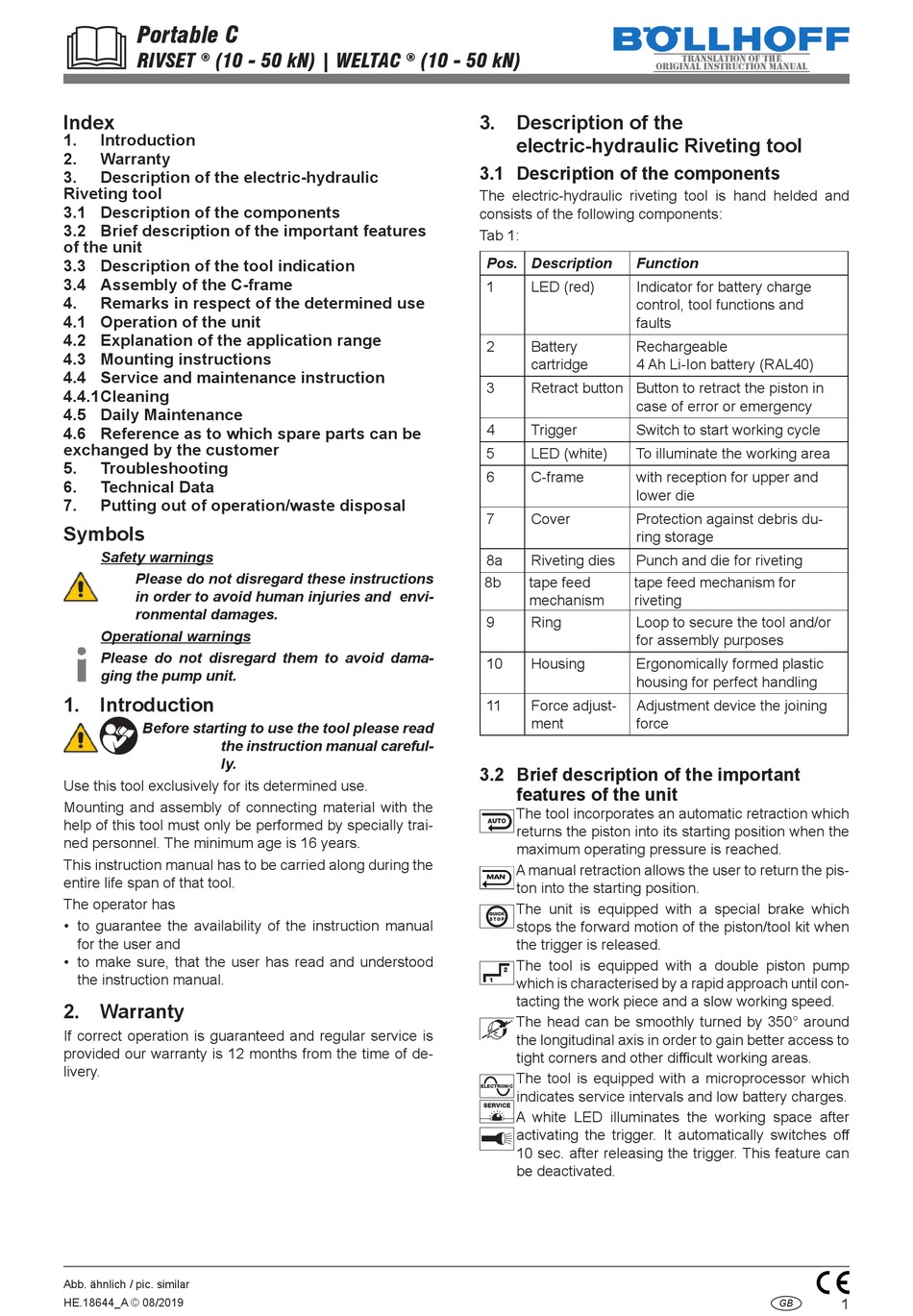

Index
1. Introduction
2. Warranty
3. Description of the electric-hydraulic
Riveting tool
3.1 Description of the components
3.2 Brief description of the important features
of the unit
3.3 Description of the tool indication
3.4 Assembly of the C-frame
4. Remarks in respect of the determined use
4.1 Operation of the unit
4.2 Explanation of the application range
4.3 Mounting instructions
4.4 Service and maintenance instruction
4.4.1 Cleaning
4.5 Daily Maintenance
4.6 Reference as to which spare parts can be
exchanged by the customer
5. Troubleshooting
6. Technical Data
7. Putting out of operation/waste disposal
Symbols
Safety warnings
Please do not disregard these instructions
in order to avoid human injuries and envi-
ronmental damages.
Operational warnings
Please do not disregard them to avoid dama-
ging the pump unit.
1. Introduction
Before starting to use the tool please read
the instruction manual careful-
ly.
Use this tool exclusively for its determined use.
Mounting and assembly of connecting material with the
help of this tool must only be performed by specially trai-
ned personnel. The minimum age is 16 years.
This instruction manual has to be carried along during the
entire life span of that tool.
The operator has
• to guarantee the availability of the instruction manual
for the user and
• to make sure, that the user has read and understood
the instruction manual.
2. Warranty
If correct operation is guaranteed and regular service is
provided our warranty is 12 months from the time of de-
livery.
Abb. ähnlich / pic. similar
HE.18644_A © 08/2019
(10 - 50 kN)
®
3. Description of the
electric-hydraulic Riveting tool
3.1 Description of the components
The electric-hydraulic riveting tool is hand helded and
consists of the following components:
Tab 1:
Pos. Description
1 LED (red)
2 Battery
cartridge
3 Retract button Button to retract the piston in
4 Trigger
5 LED (white)
6 C-frame
7 Cover
8a Riveting dies
8b tape feed
mechanism
9 Ring
10 Housing
11 Force adjust-
ment
3.2 Brief description of the important
features of the unit
The tool incorporates an automatic retraction which
returns the piston into its starting position when the
maximum operating pressure is reached.
A manual retraction allows the user to return the pis-
ton into the starting position.
The unit is equipped with a special brake which
stops the forward motion of the piston/tool kit when
the trigger is released.
The tool is equipped with a double piston pump
which is characterised by a rapid approach until con-
tacting the work piece and a slow working speed.
The head can be smoothly turned by 350° around
the longitudinal axis in order to gain better access to
tight corners and other diffi cult working areas.
The tool is equipped with a microprocessor which
indicates service intervals and low battery charges.
A white LED illuminates the working space after
activating the trigger. It automatically switches off
10 sec. after releasing the trigger. This feature can
be deactivated.
translation of the
original instruction manual
Function
Indicator for battery charge
control, tool functions and
faults
Rechargeable
4 Ah Li-Ion battery (RAL40)
case of error or emergency
Switch to start working cycle
To illuminate the working area
with reception for upper and
lower die
Protection against debris du-
ring storage
Punch and die for riveting
tape feed mechanism for
riveting
Loop to secure the tool and/or
for assembly purposes
Ergonomically formed plastic
housing for perfect handling
Adjustment device the joining
force
GB
