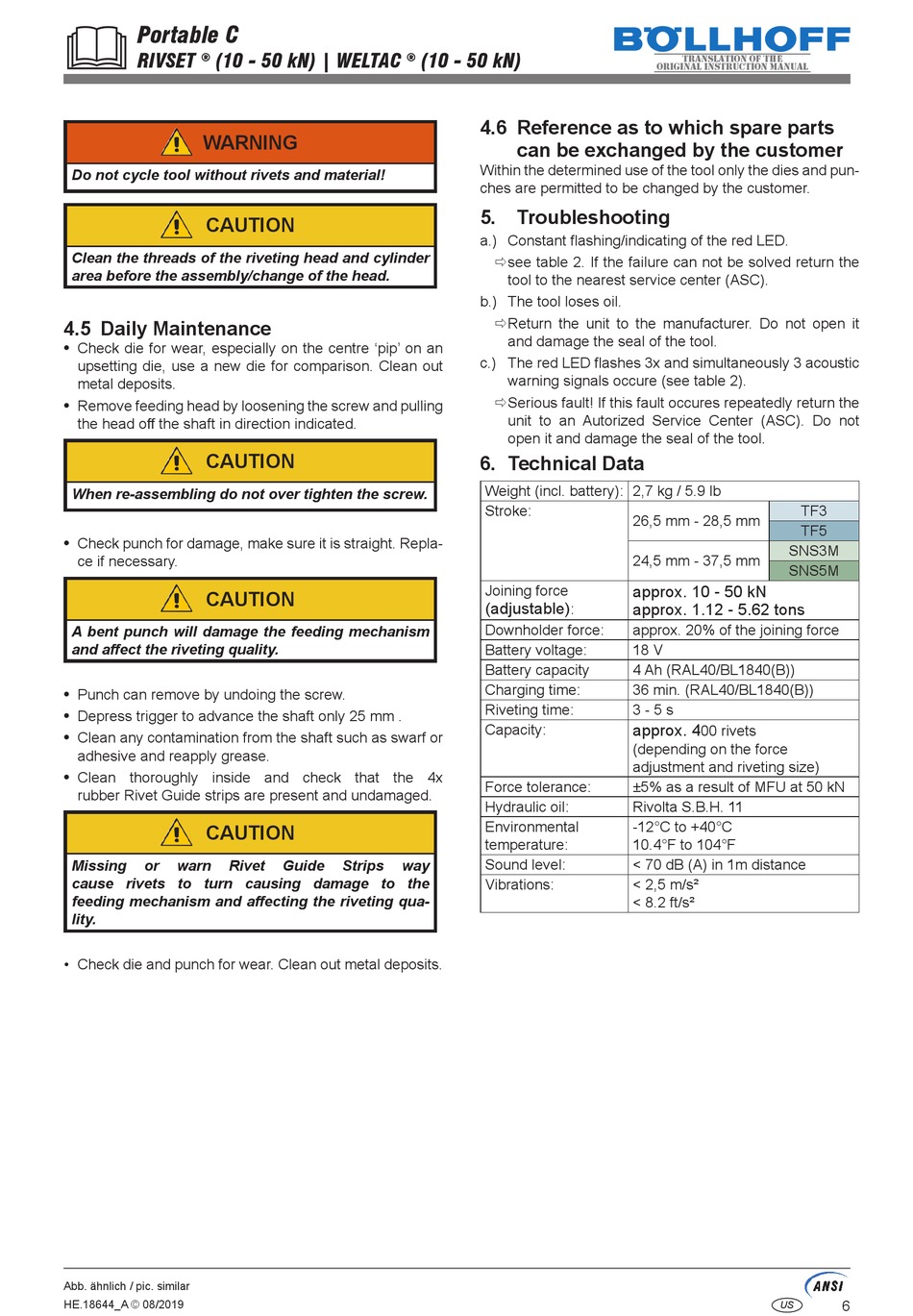

WARNING
Do not cycle tool without rivets and material!
CAUTION
Clean the threads of the riveting head and cylinder
area before the assembly/change of the head.

4.5 Daily Maintenance

•
Check die for wear, especially on the centre 'pip' on an
upsetting die, use a new die for comparison. Clean out
metal deposits.
•
Remove feeding head by loosening the screw and pulling
the head off the shaft in direction indicated.
CAUTION
When re-assembling do not over tighten the screw.
•
Check punch for damage, make sure it is straight. Repla-
ce if necessary.
CAUTION
A bent punch will damage the feeding mechanism
and aff ect the riveting quality.
•
Punch can remove by undoing the screw.
•
Depress trigger to advance the shaft only 25 mm .
•
Clean any contamination from the shaft such as swarf or
adhesive and reapply grease.
•
Clean thoroughly inside and check that the 4x
rubber Rivet Guide strips are present and undamaged.
CAUTION
Missing or warn Rivet
cause rivets to turn causing damage to the
feeding mechanism and aff ecting the riveting qua-
lity.
• Check die and punch for wear. Clean out metal deposits.
Abb. ähnlich / pic. similar
HE.18644_A © 08/2019
(10 - 50 kN)
®
Guide Strips way
4.6 Reference as to which spare parts
can be exchanged by the customer
Within the determined use of the tool only the dies and pun-
ches are permitted to be changed by the customer.
5. Troubleshooting
a.) Constant fl ashing/indicating of the red LED.
 see table 2. If the failure can not be solved return the
tool to the nearest service center (ASC).
b.) The tool loses oil.
 R eturn the unit to the manufacturer. Do not open it
and damage the seal of the tool.
c.) The red LED fl ashes 3x and simultaneously 3 acoustic
warning signals occure (see table 2).
 S erious fault! If this fault occures repeatedly return the
unit to an Autorized Service Center (ASC). Do not
open it and damage the seal of the tool.

6. Technical Data

Weight (incl. battery): 2,7 kg / 5.9 lb
Stroke:
26,5 mm - 28,5 mm
24,5 mm - 37,5 mm
Joining force approx. 10 - 50 kN
(adjustable)
: approx. 1.12 - 5.62 tons
Downholder force: approx. 20% of the joining force
Battery voltage: 18 V
Battery capacity 4 Ah (RAL40/BL1840(B))
Charging time: 36 min. (RAL40/BL1840(B))
Riveting time: 3 - 5 s
Capacity: approx. 4
(depending on the force
adjustment and riveting size)
Force tolerance: ±5% as a result of MFU at 50 kN
Hydraulic oil: Rivolta S.B.H. 11
Environmental -12°C to +40°C
temperature: 10.4°F to 104°F
Sound level: < 70 dB (A) in 1m distance
Vibrations: < 2,5 m/s²
< 8.2 ft/s²
translation of the
original instruction manual
TF3
TF5
SNS3M
SNS5M
00 rivets
US
6
