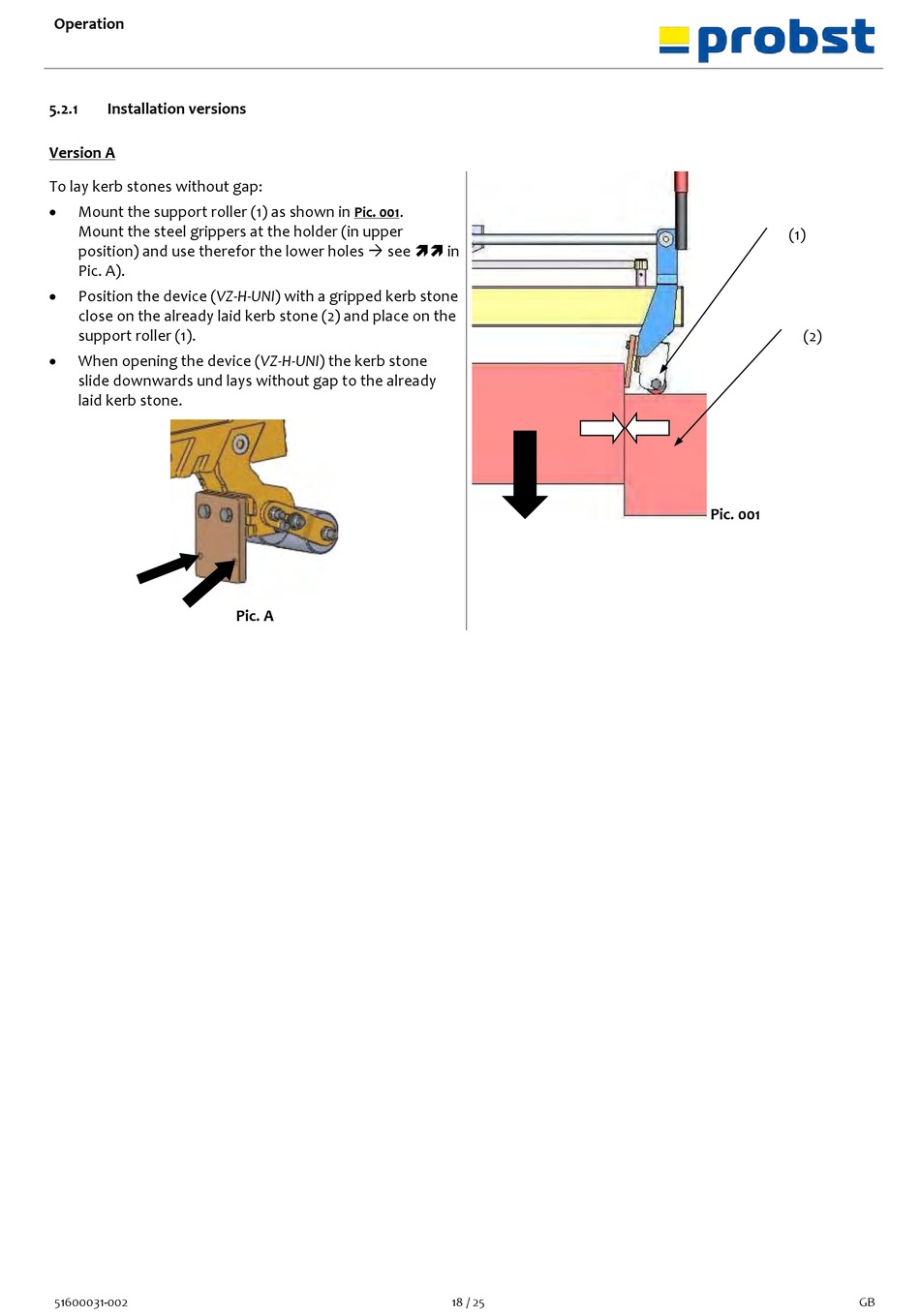

Installation versions

Version A
To lay kerb stones without gap:
•
Mount the support roller (1) as shown in
Mount the steel grippers at the holder (in upper
position) and use therefor the lower holes → see  in
Pic. A).
•
Position the device (VZ-H-UNI) with a gripped kerb stone
close on the already laid kerb stone (2) and place on the
support roller (1).
•
When opening the device (VZ-H-UNI) the kerb stone
slide downwards und lays without gap to the already
laid kerb stone.
