DIMENSIONS

Z6.../5 kg 0 500 kg
8.1

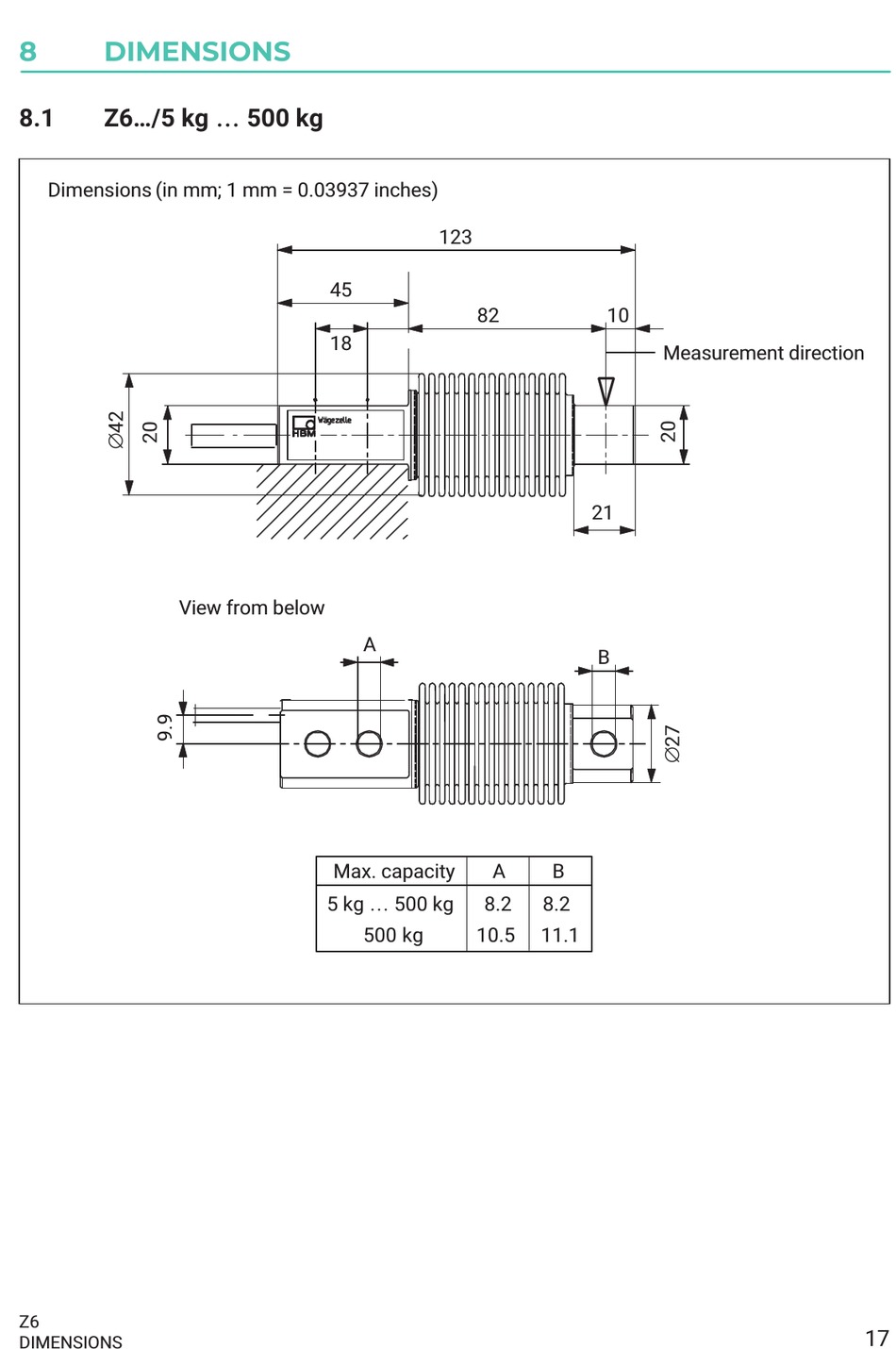

Dimensions (in mm; 1 mm = 0.03937 inches)
View from below
Z6
DIMENSIONS
123
45
82
18
A
Max. capacity A
5 kg ... 500 kg
8.2
500 kg 10.5
10
Measurement direction
21
B
B
8.2
11.1
