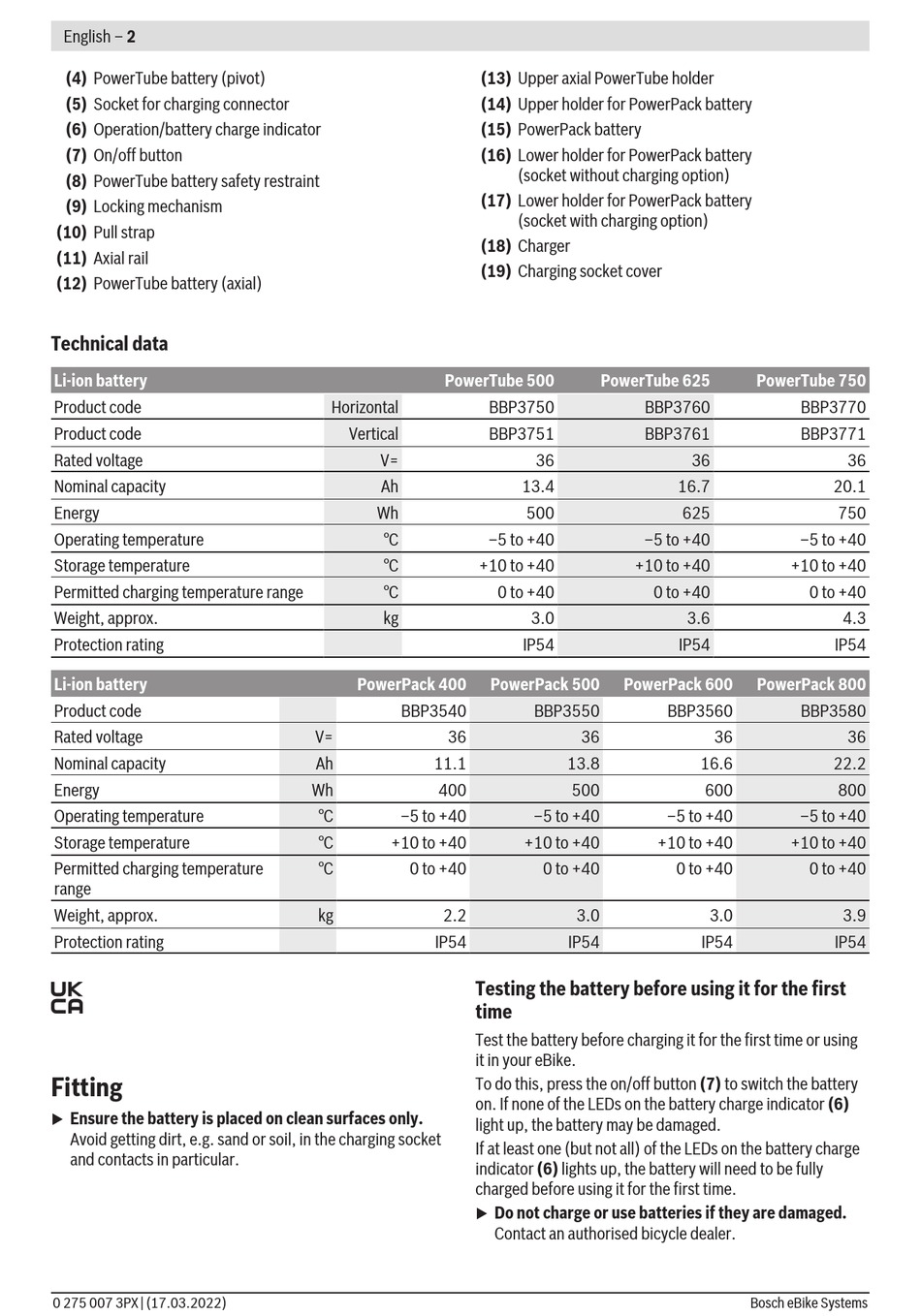

English – 2
(4) PowerTube battery (pivot)
(5) Socket for charging connector
(6) Operation/battery charge indicator
(7) On/off button
(8) PowerTube battery safety restraint
(9) Locking mechanism
(10) Pull strap
(11) Axial rail
(12) PowerTube battery (axial)

Technical data

Li-ion battery
Product code
Product code
Rated voltage
Nominal capacity
Energy
Operating temperature
Storage temperature
Permitted charging temperature range
Weight, approx.
Protection rating
Li-ion battery
Product code
Rated voltage
Nominal capacity
Energy
Operating temperature
Storage temperature
Permitted charging temperature
range
Weight, approx.
Protection rating
Fitting
Ensure the battery is placed on clean surfaces only.
u
Avoid getting dirt, e.g. sand or soil, in the charging socket
and contacts in particular.
0 275 007 3PX | (17.03.2022)
(13) Upper axial PowerTube holder
(14) Upper holder for PowerPack battery
(15) PowerPack battery
(16) Lower holder for PowerPack battery
(17) Lower holder for PowerPack battery
(18) Charger
(19) Charging socket cover
PowerTube 500
Horizontal
Vertical
V=
Ah
Wh
°C
°C +10 to +40
°C
kg
PowerPack 400
BBP3540
V= 36
Ah 11.1
Wh 400
°C –5 to +40
°C +10 to +40
°C 0 to +40
kg 2.2
IP54
Testing the battery before using it for the first
time
Test the battery before charging it for the first time or using
it in your eBike.
To do this, press the on/off button (7) to switch the battery
on. If none of the LEDs on the battery charge indicator (6)
light up, the battery may be damaged.
If at least one (but not all) of the LEDs on the battery charge
indicator (6) lights up, the battery will need to be fully
charged before using it for the first time.
u
(socket without charging option)
(socket with charging option)
PowerTube 625
BBP3750 BBP3760
BBP3751 BBP3761
36
13.4
500
–5 to +40 –5 to +40
+10 to +40
0 to +40 0 to +40
3.0
IP54
PowerPack 500 PowerPack 600
BBP3550
36
13.8
500
–5 to +40
+10 to +40 +10 to +40
0 to +40
3.0
IP54
Do not charge or use batteries if they are damaged.
Contact an authorised bicycle dealer.
PowerTube 750
BBP3770
BBP3771
36
16.7 20.1
625 750
–5 to +40
+10 to +40
0 to +40
3.6
IP54 IP54
PowerPack 800
BBP3560 BBP3580
36
16.6 22.2
600 800
–5 to +40 –5 to +40
+10 to +40
0 to +40 0 to +40
3.0
IP54 IP54
Bosch eBike Systems
36
4.3
36
3.9
