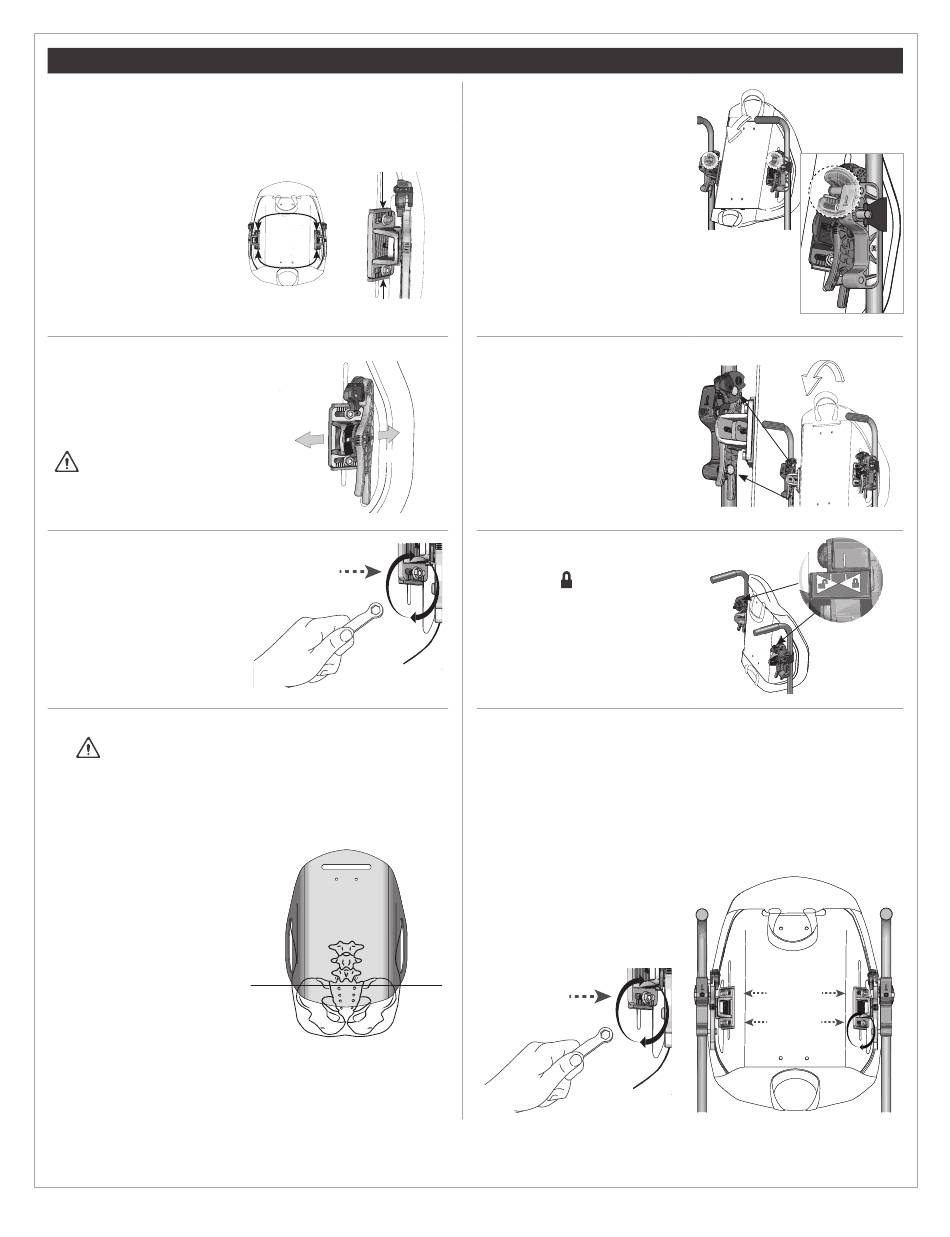

AGILITY Installation, continued
Adjust the Width, continued:
3. Check the width:
» Make sure that the hooks
are resting on the pins.
» Use the reference grooves
to make sure the left and
right triangle brackets are in
the same position on both
sides.
4. If needed, slide the triangle
brackets to adjust the width:
» forward for a wider width
» backward for a narrower
width
Warning: DO NOT adjust the
width of the AGILITY while the
individual is seated in the
wheelchair.
5. Remove the back shell from
the wheelchair and tighten the
width/ height adjustment nuts.
Warning: If an AGILITY is not positioned to make contact
with the Posterior Superior Iliac Spine (PSIS), pelvic support and
trunk control may be reduced.
Make sure that the
AGILITY is positioned so
that the bottom portion
makes contact with
the PSIS. See "Height
Adjustment".
ROHO AGILITY Quick Release Hardware Operation Manual
Reference Grooves
wider
narrower
PSIS PSIS
Attach the AGILITY:
6. Place the lower hooks on the lower
pins again. Then, tilt and lift the top
of the back shell toward the back of
the wheelchair until the latches rest
above the upper pins.
7. To rest the hooks on the pins and
engage the latches:
Hold the back shell up slightly,
and then bring it down until the
upper and lower hooks rest
completely on the upper and
lower pins. The latches should
open and then close.
8. Lock the latches by pushing the
left and right safety locks into the
LOCKED ( ) position.
Complete the Installation:
9. If you need to adjust the height, see "Height Adjustment".
10. Tighten the width/height adjustment nuts with the box end wrench until
snug + one-quarter turn.
Note: If a torque wrench is available, tighten the nuts to 42 ± 2 inch-pounds
(4.75 ± 0.25 Newton-meters).
