Setting of the end positions

5.2. Automatic setup-mode with setting switch/switch

When the movement is interrupted twice during operation, the system is in automatic
setup­mode. Motor types SE Pro­RC will automatically find their stop positions. For
this, a motor must first move against the upper stop and then downwards until it
switches off automatically.
Setting with Setting with
switch setting switch
E
1 s
E
or
Further detailed information for the start-up of the drive – e.g. of the manual
setup-mode (fixed points) with setting switch/switch – can be found in the original
operating instruction SE Pro-RC auf www.selve.de
Drive

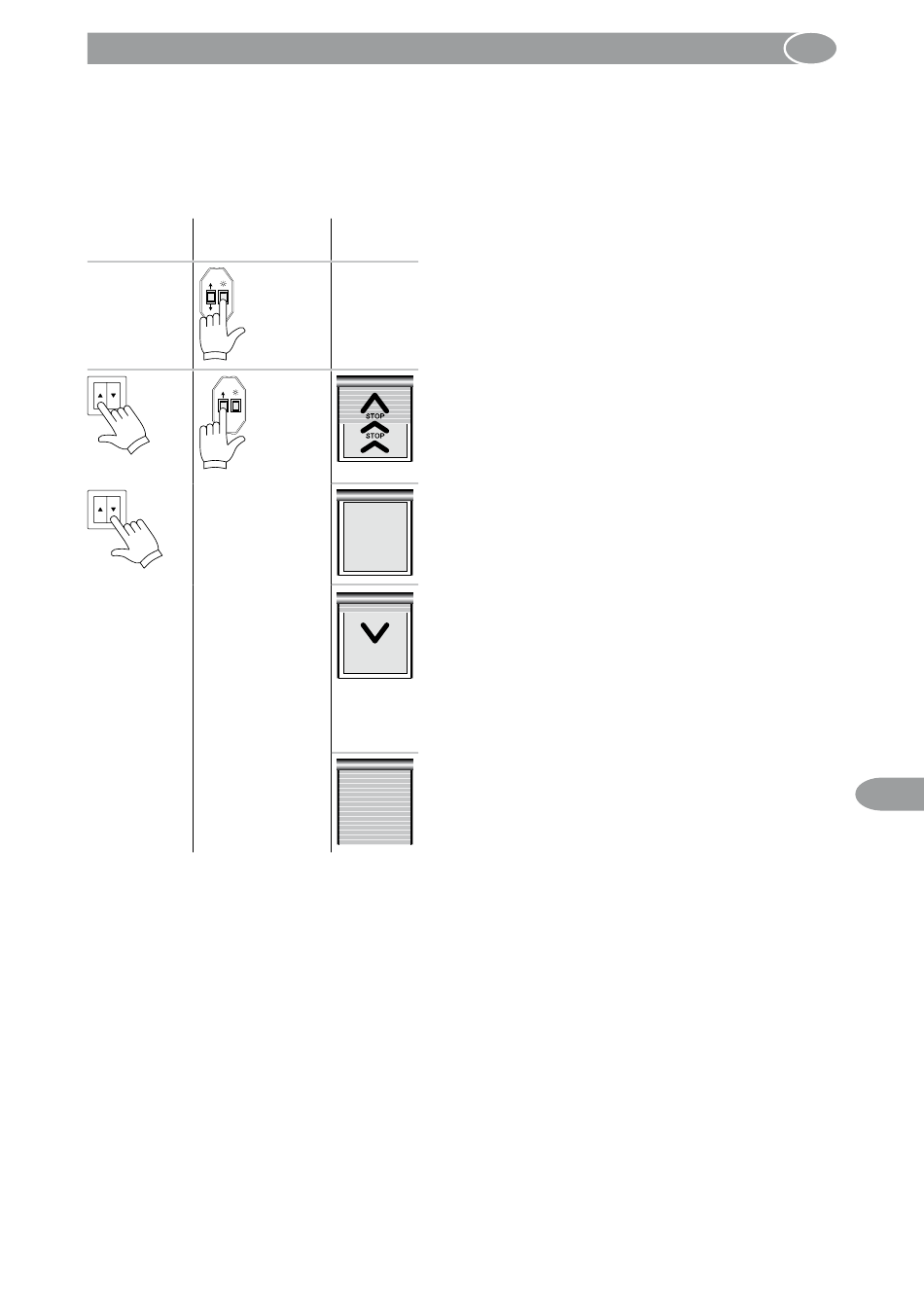

Press the E button of the setting switch for
1 second. Both limit positions already set will be
deleted.
Note: Not required for the initial installation or after
resetting to factory defaults.
Move the motor upwards with the UP or DOWN
button.
The motor moves against the upper stop and
stops automatically. The correct direction of rota­
tion assignment has been made.
Continue to keep the button pressed.
The motor automatically moves downwards after
1–2 seconds. Alternatively move the motor down-
wards using the DOWN button.
Note: The motor can be moved upwards and
downwards. As long as the lower end position has
not been found, the downwards moving will be
interrupted twice.
The motor will reach the lower limit and stops
automatically.
The end positions are now set and the rotation
direction assignment is correct. Perform a test
run.
