Opening the
Processor
BIS C-6003

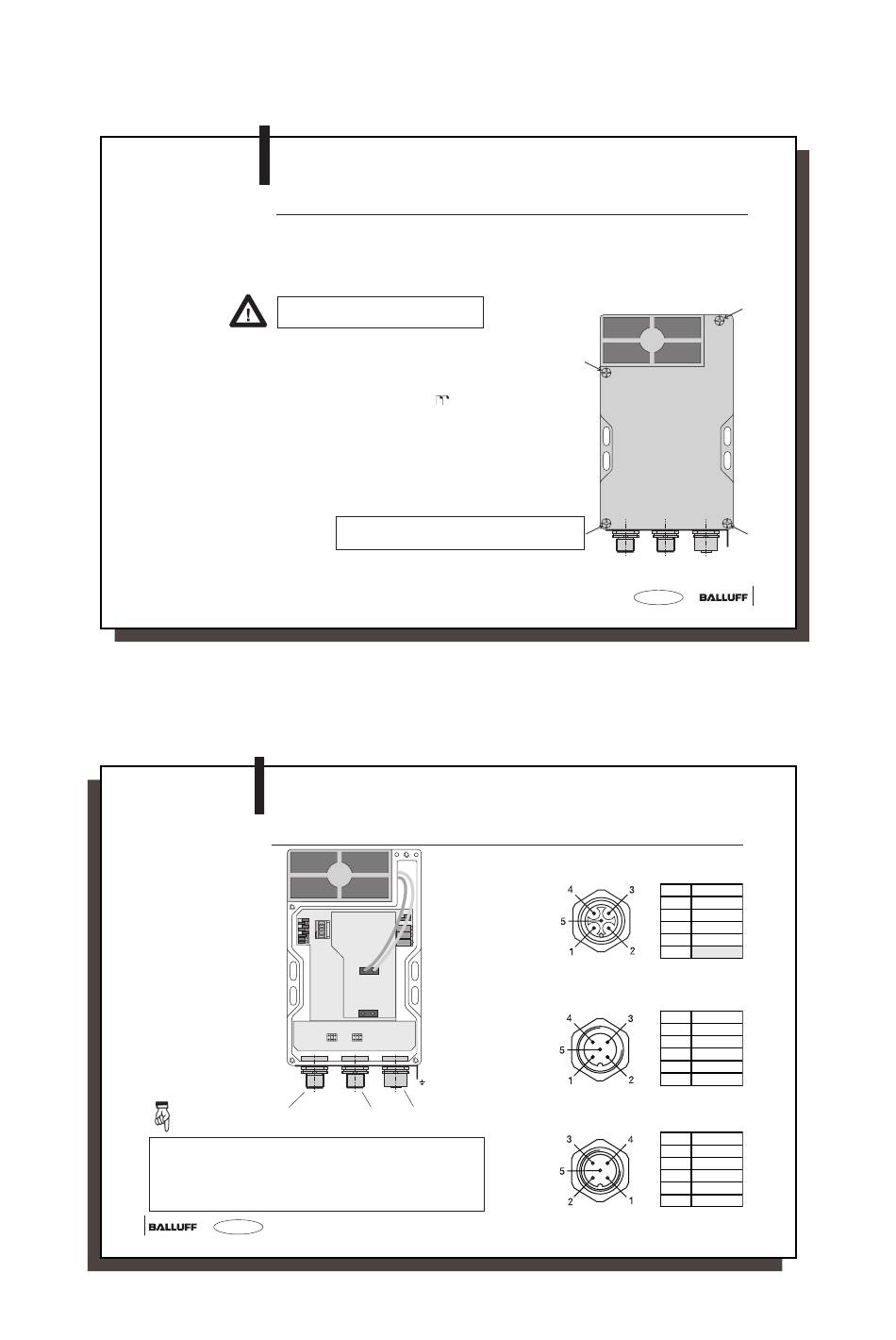

Opening the processor
82
Wiring diagram for
BIS C-6003
processor with
integrated read/write
head
The ground connector should be connected to earth directly or
through a RC combination depending on the system (potential
counterpoise).
When connecting the bus leads, make sure that the shield has pro-
per connection to connector housing.
82 english
BIS C-6003
Opening the Processor
The BIS C-6003 processor must be opened to perform the following steps:
– Set DeviceNet MAC-ID,
– Set baud rate,
– Chamge EEPROM.
Be sure that the unit is disconnected
from power before opening.
Remove the 4 screws on the BIS C-6003 and lift off the
cover.
Perform the desired action. To make the electrical connec-
tions, push the cables through the fittings. For additional
wiring details, see the following
Mounting of the cover (4 screws),
max. permissible tightening torque: 0.15 Nm
BIS C-6003
Interface Information / Wiring Diagrams
S2
ON OFF
OFF ON 1
2
1
2
3
4
5
6
7
8
S1
Head 1
Head 2
RS 232 Head
X4
Function
ground FE
X1 X2 X3
supply voltage, DeviceNet DeviceNet
digital input input output
.
X1, supply voltage
and digital input
X2, DeviceNet input (male)
X3, DeviceNet output (female)
81
english
Pin Function
1 +Vs
2 –IN
3 –Vs
4 +IN
5
Pin Function
1 Drain
2 V+
3 V–
4 CAN_H
5 CAN_L
Pin Function
1 Drain
2 V+
3 V–
4 CAN_H
5 CAN_L
