Installation and Operating Instructions
UK
Slim centrifugal fan box – SVV 80
3.2

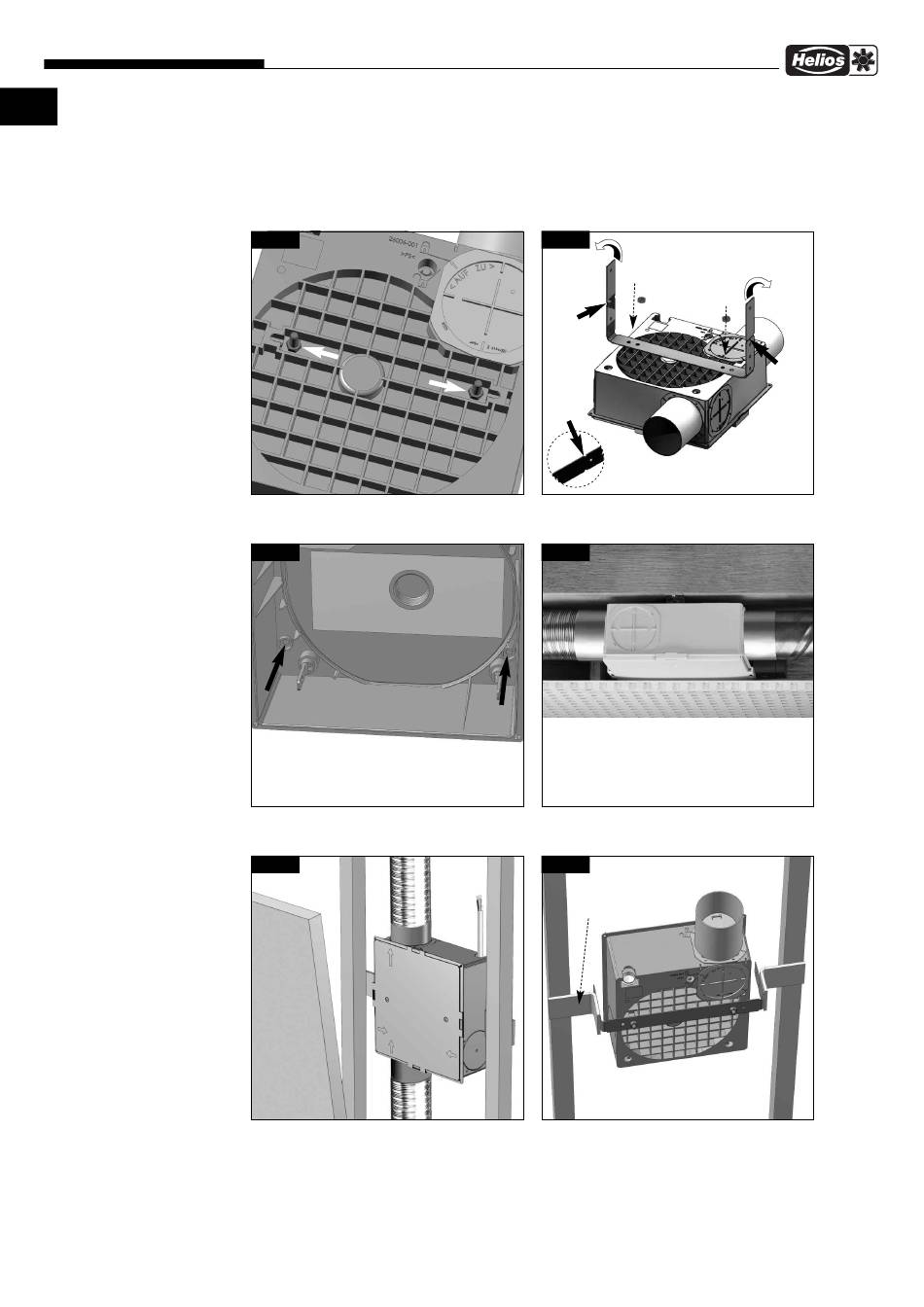

Assemble mounting holder for wall or ceiling installation

Required for flush mounted installation in a funnel, with thin brick linings, planking or ceiling.
Adjustment
Depending upon the installation and according to the situation, align the mounting holder on the casing
and screw the elements together firmly (fig.5-6).
fig.5
3.3

Examples of wall and ceiling installation

fig.7
Drill screw adapter for wall fixing
( ( w w i i t t h h o o u u t t m m o o u u n n t t i i n n g g b b r r a a c c k k e e t t ) ) (Ø 6 mm)
3.4

Installation example at the plasterboard system

fig.9
fig.6
~
fig.8
Installation in suspended ceiling.
Directly inside pipe position
( ( w w i i t t h h m m o o u u n n t t i i n n g g b b r r a a c c k k e e t t ) )
fig.10
Plaster-
board in-
stallation
Pos a.
The fastening at the plasterboard sy-
stem is carried out with plaster-
board system specific brackets or
wall holders (Pos. a).
12
~
Mounting bracket  can be
bended or shortened at the notch.
90°
